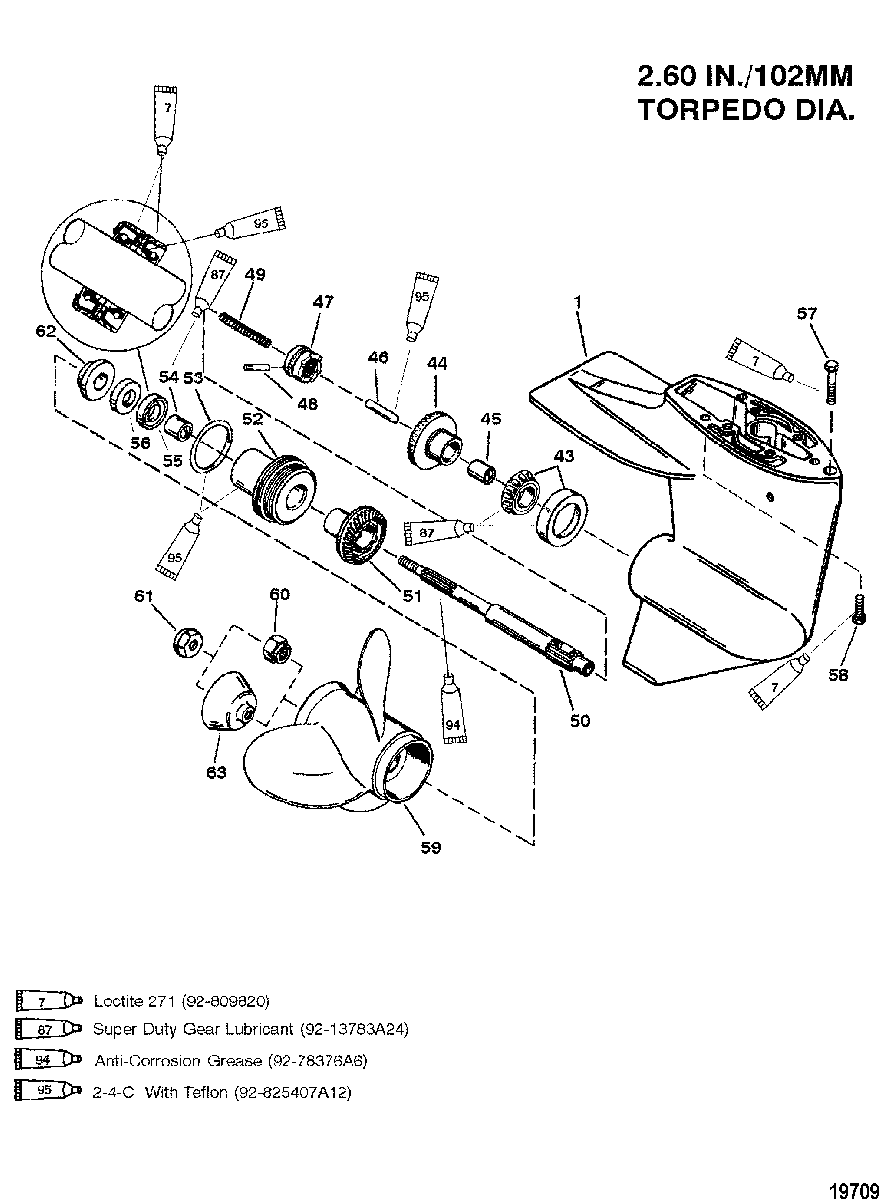

Gear Housing, Propeller Shaft - 2.00:1 Gear Ratio для Mariner - 15 0D281000 THRU 0G760299
-
№АртикулНазвание
-
-1666-8833T13 GEAR HOUSING ASSEMBLY
(SHORT) BLACKGEAR HOUSING ASSEMBLY
(SHORT) BLACK -
-1666-8833T15 GEAR HOUSING ASSEMBLY
(LONG) BLACKGEAR HOUSING ASSEMBLY
(LONG) BLACK -
-1666-8833T14 GEAR HOUSING ASSEMBLY
(SHORT) GRAYGEAR HOUSING ASSEMBLY
(SHORT) GRAY -
-1666-8833T15 GEAR HOUSING ASSEMBLY
(LONG) GRAYGEAR HOUSING ASSEMBLY
(LONG) GRAY -
-1666-8833T19 GEAR HOUSING ASSEMBLY, Complete
(TRACKER GRAPHITE GRAY)GEAR HOUSING ASSEMBLY, Complete
(TRACKER GRAPHITE GRAY) -
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
(BLACK)GEAR HOUSING ASSEMBLY, Basic-Black
(BLACK) -
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Gray
(GRAY)GEAR HOUSING ASSEMBLY, Basic-Gray
(GRAY) -
11666-8833A20 GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY)GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY) -
4331-821321A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
4443-821924A1 GEAR ASSEMBLY, Forward (26 TEETH)GEAR ASSEMBLY, Forward (26 TEETH)
-
4523-41367 BUSHINGBUSHING
-
46813139 FOLLOWER, CamFOLLOWER, Cam
-
4752-821930A1 CLUTCH ASSEMBLYCLUTCH ASSEMBLY
-
4817-823951 PIN, CrossPIN, Cross
-
4924-42204 SPRINGSPRING
-
5044-821929 PROPELLER SHAFTPROPELLER SHAFT
-
5143-821926T1 GEAR, Reverse - 13/26 (26 TEETH)GEAR, Reverse - 13/26 (26 TEETH)
-
5242144T3 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5325-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
5423-821927 BUSHINGBUSHING
-
5526-99325 SEALSEAL
-
5626-821928 SEAL, OilSEAL, Oil
-
5710-82407110 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
5810-8240717 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
5948-828156A12 PROPELLER, (9.00 x 9.00)PROPELLER, (9.00 x 9.00)
-
5948-828152A12 PROPELLER, 3-Blade (9.25 x 7.00)PROPELLER, 3-Blade (9.25 x 7.00)
-
5948-828150A12 PROPELLER, (9.25 x 6.50)PROPELLER, (9.25 x 6.50)
-
6023-420911 SPACERSPACER
-
6111-40140 NUT, (M10)NUT, (M10)
-
62821932 THRUST HUB (1.390 DIA.)THRUST HUB (1.390 DIA.)
-
628219321 THRUST HUB (1.510 DIA.)THRUST HUB (1.510 DIA.)
-
63822559Q01 CUP ASSEMBLY, Reverse Exhaust BlockCUP ASSEMBLY, Reverse Exhaust Block
-
-26-41365A3 SEAL KITSEAL KIT
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
