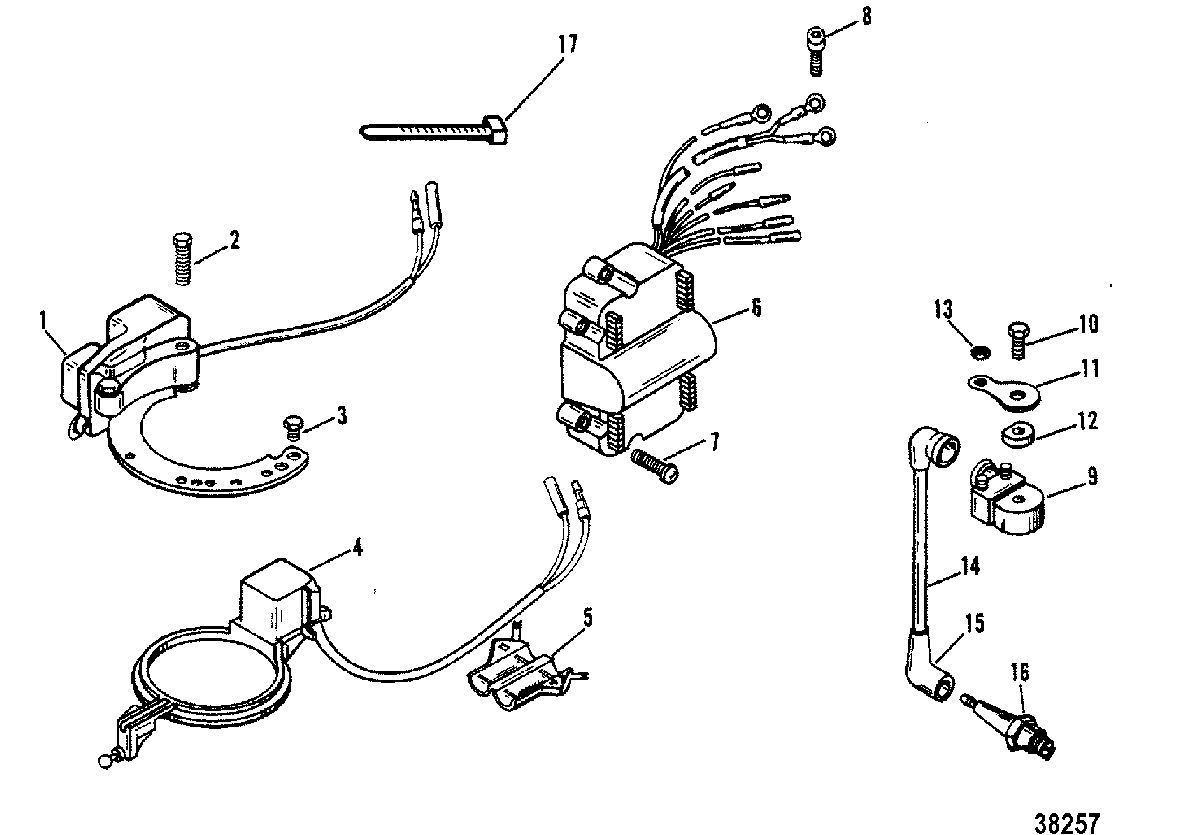

IGNITION COMPONENTS для Mariner - 15 0A197112 THRU 0D280999

№

Артикул

Название
1

86617A20 STATOR ASSEMBLY

STATOR ASSEMBLY
2

10-4000120 SCREW, (M5 x 25)

SCREW, (M5 x 25)
3

10-400018 SCREW, (M5 x 12) (MANUAL)

SCREW, (M5 x 12) (MANUAL)
4

98450A10 TRIGGER ASSEMBLY

TRIGGER ASSEMBLY
5

11100 CLIP, TRIGGER LEAD

CLIP, TRIGGER LEAD
6

339-7452A19 SWITCHBOX ASSEMBLY

SWITCHBOX ASSEMBLY
7

10-40019108 SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK

SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK
8

10-48408 SCREW, (#10-16 x .500), GROUND WIRE

SCREW, (#10-16 x .500), GROUND WIRE
9

339-832757A4 COIL ASSEMBLY, Ignition

COIL ASSEMBLY, Ignition
10

10-40112 SCREW, (M6 x 45), IGNITION COIL

SCREW, (M6 x 45), IGNITION COIL
11

88173 TAB WASHER

TAB WASHER
12

23-88171 BUSHING, COIL

BUSHING, COIL
13

11-45076 NUT, (#10-32) Brass, COIL TERMINAL

NUT, (#10-32) Brass, COIL TERMINAL
14

84-813715A2 CABLE SET, High Tension (5 and 8.25 Inch), HIGH TENSION

CABLE SET, High Tension (5 and 8.25 Inch), HIGH TENSION
15

85-63709A1 BOOT/TERMINAL KIT, SPARK PLUG

BOOT/TERMINAL KIT, SPARK PLUG
16

33-8M0114745 SPARK PLUG (NGK #BP8HS-10)
6/8/9.9 H.P.

SPARK PLUG (NGK #BP8HS-10)
6/8/9.9 H.P.
16

33-816737Q SPARK PLUG (NGK#BP8H-N-10)
6/8/9.9 H.P.

SPARK PLUG (NGK#BP8H-N-10)
6/8/9.9 H.P.
16

33-14814Q SPARK PLUG, (NGK # BPZ8HS-10) (CAN./BEL.)
6/8/9.9 H.P.

SPARK PLUG, (NGK # BPZ8HS-10) (CAN./BEL.)
6/8/9.9 H.P.
16

33-816837Q SPARK PLUG (NGK#BPZ-8H-N-10-CAN/BEL.)
6/8/9.9 H.P.

SPARK PLUG (NGK#BPZ-8H-N-10-CAN/BEL.)
6/8/9.9 H.P.
16

33-8M0114746 SPARK PLUG (NGK#BP8HS-15)
15 H.P.

SPARK PLUG (NGK#BP8HS-15)
15 H.P.
16

33-14814568 SPARK PLUG (NGK#BPZ8HS-15)
15 H.P.

SPARK PLUG (NGK#BPZ8HS-15)
15 H.P.
17

69355 TIE STRAP, (5.50 Inches)

TIE STRAP, (5.50 Inches)
