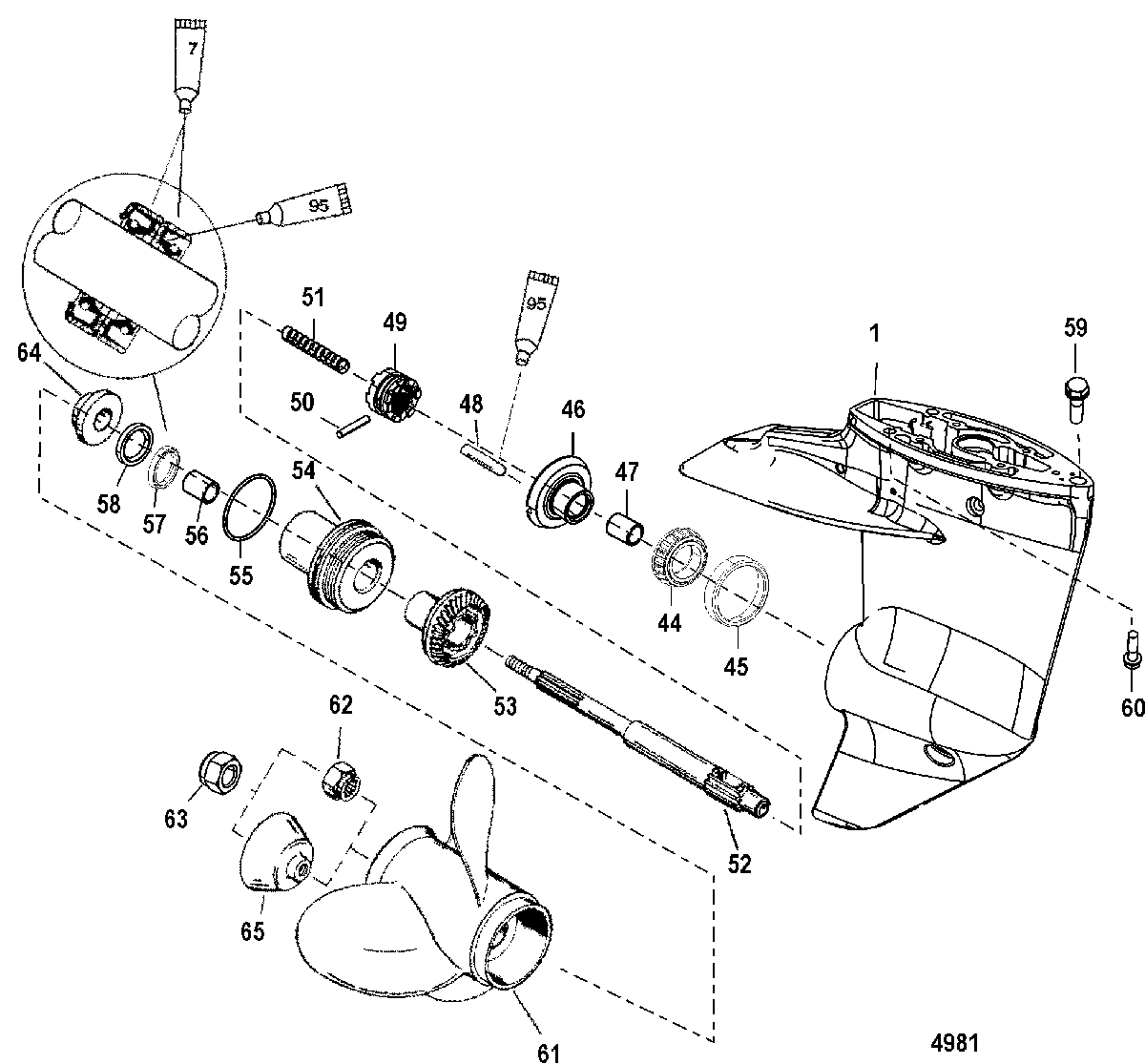

Gear Housing, Propeller Shaft - 2.00:1 Gear Ratio для Mariner - 15 VIKING 0P325500 & Up
-
№АртикулНазвание
-
-1666-8833T13 GEAR HOUSING ASSEMBLY (Short) (Black)
(2.60 Inch/102 mm Torpedo Diameter)GEAR HOUSING ASSEMBLY (Short) (Black)
(2.60 Inch/102 mm Torpedo Diameter) -
-1666-8833T15 GEAR HOUSING ASSEMBLY (Short) (Black)
(2.60 Inch/102 mm Torpedo Diameter)GEAR HOUSING ASSEMBLY (Short) (Black)
(2.60 Inch/102 mm Torpedo Diameter) -
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
(Basic) (Black)GEAR HOUSING ASSEMBLY, Basic-Black
(Basic) (Black) -
4431-821321A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
45NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
4643-821924A1 GEAR ASSEMBLY, Forward (26 Teeth)GEAR ASSEMBLY, Forward (26 Teeth)
-
4723-41367 BUSHINGBUSHING
-
48813139 FOLLOWER, CamFOLLOWER, Cam
-
4952-821930A1 CLUTCH ASSEMBLYCLUTCH ASSEMBLY
-
5017-823951 PIN, CrossPIN, Cross
-
5124-42204 SPRINGSPRING
-
5244-821929 PROPELLER SHAFTPROPELLER SHAFT
-
5343-821926T1 GEAR, Reverse - 13/26GEAR, Reverse - 13/26
-
5442144T3 CARRIER, BearingCARRIER, Bearing
-
5525-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
5623-821927 BUSHINGBUSHING
-
5726-99325 SEALSEAL
-
5826-821928 SEAL, OilSEAL, Oil
-
5910-82407110 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
6010-8240717 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
6148-828156A12 PROPELLER, (9.00 x 9.00)PROPELLER, (9.00 x 9.00)
-
6148-828150A12 PROPELLER, (9.25 x 6.50)
(Sailpower)PROPELLER, (9.25 x 6.50)
(Sailpower) -
6223-420911 SPACERSPACER
-
6311-40140 NUT, (M10)NUT, (M10)
-
648219321 THRUST HUBTHRUST HUB
-
65822559Q01 CUPCUP
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-26-41365A3 SEAL KITSEAL KIT
