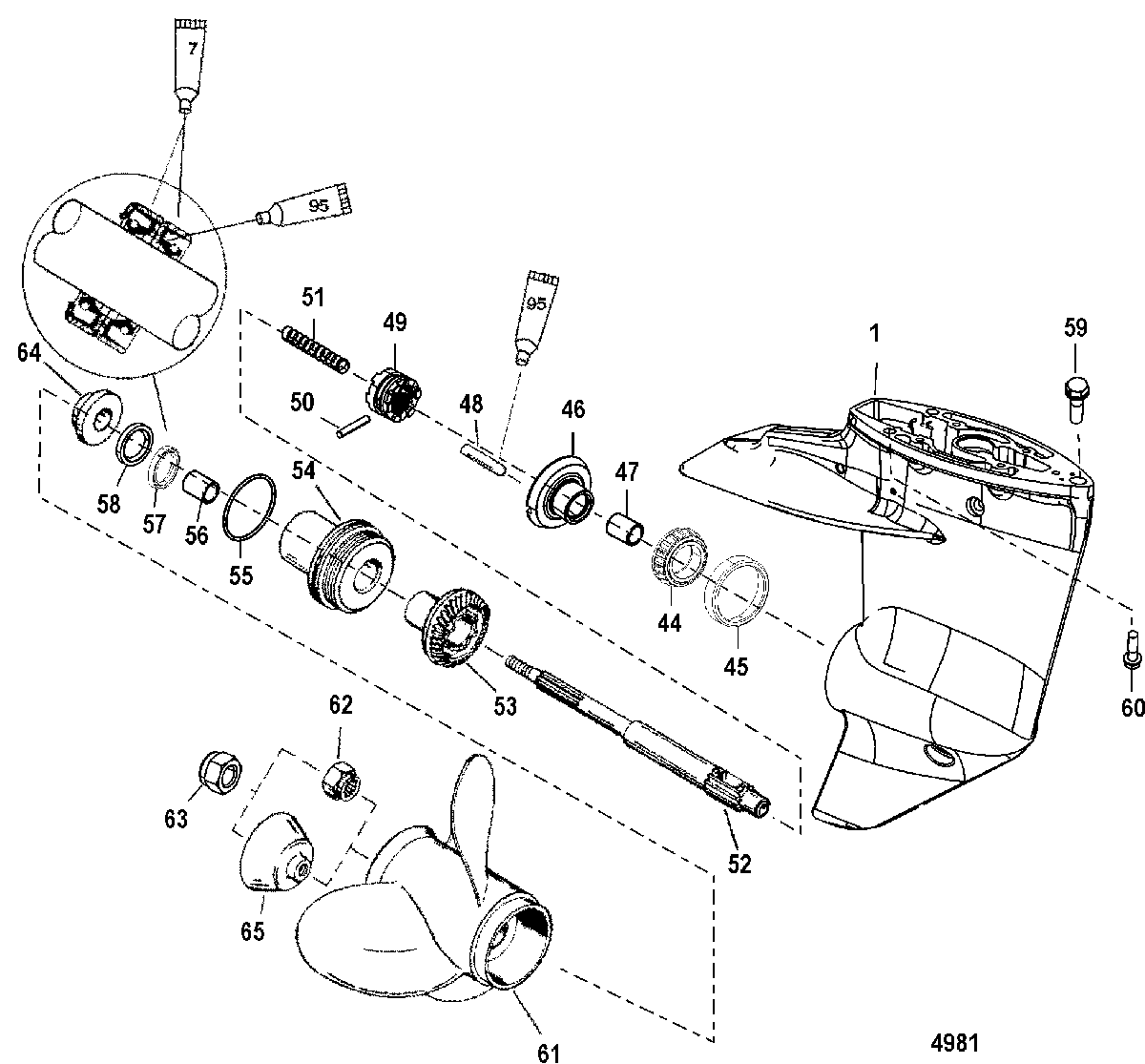

Gear Housing, Propeller Shaft - 2.00:1 Gear Ratio для Mariner - 15 MARATHON 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • -
    1666-8833T13 GEAR HOUSING ASSEMBLY
    (Short) (Black)
    GEAR HOUSING ASSEMBLY
    (Short) (Black)
  • -
    1666-8833T15 GEAR HOUSING ASSEMBLY
    (Short) (Black)
    GEAR HOUSING ASSEMBLY
    (Short) (Black)
  • 1
    1600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
    (Basic) (Black)
    GEAR HOUSING ASSEMBLY, Basic-Black
    (Basic) (Black)
  • 44
    31-821321A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 45
    NSS NOT SOLD SEPARATE (Cup)
    NOT SOLD SEPARATE (Cup)
  • 46
    43-821924A1 GEAR ASSEMBLY, Forward (26 Teeth)
    GEAR ASSEMBLY, Forward (26 Teeth)
  • 47
    23-41367 BUSHING
    BUSHING
  • 48
    813139 FOLLOWER, Cam
    FOLLOWER, Cam
  • 49
    52-821930A1 CLUTCH ASSEMBLY
    CLUTCH ASSEMBLY
  • 50
    17-823951 PIN, Cross
    PIN, Cross
  • 51
    24-42204 SPRING
    SPRING
  • 52
    44-821929 PROPELLER SHAFT
    PROPELLER SHAFT
  • 53
    43-821926T1 GEAR, Reverse - 13/26
    GEAR, Reverse - 13/26
  • 54
    42144T3 CARRIER, Bearing
    CARRIER, Bearing
  • 55
    25-33145 O-RING, (1.984 x .139)
    O-RING, (1.984 x .139)
  • 56
    23-821927 BUSHING
    BUSHING
  • 57
    26-99325 SEAL
    SEAL
  • 58
    26-821928 SEAL, Oil
    SEAL, Oil
  • 59
    10-82407110 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 60
    10-8240717 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 61
    48-828156A12 PROPELLER, (9.00 x 9.00)
    PROPELLER, (9.00 x 9.00)
  • 61
    48-828150A12 PROPELLER, (9.25 x 6.50)
    (Sailpower)
    PROPELLER, (9.25 x 6.50)
    (Sailpower)
  • 62
    23-420911 SPACER
    SPACER
  • 63
    11-40140 NUT, (M10)
    NUT, (M10)
  • 64
    8219321 THRUST HUB
    THRUST HUB
  • 65
    822559Q01 CUP ASSEMBLY, Reverse Exhaust Block
    CUP ASSEMBLY, Reverse Exhaust Block
  • -
    27-42364A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    26-41365A3 SEAL KIT
    SEAL KIT
