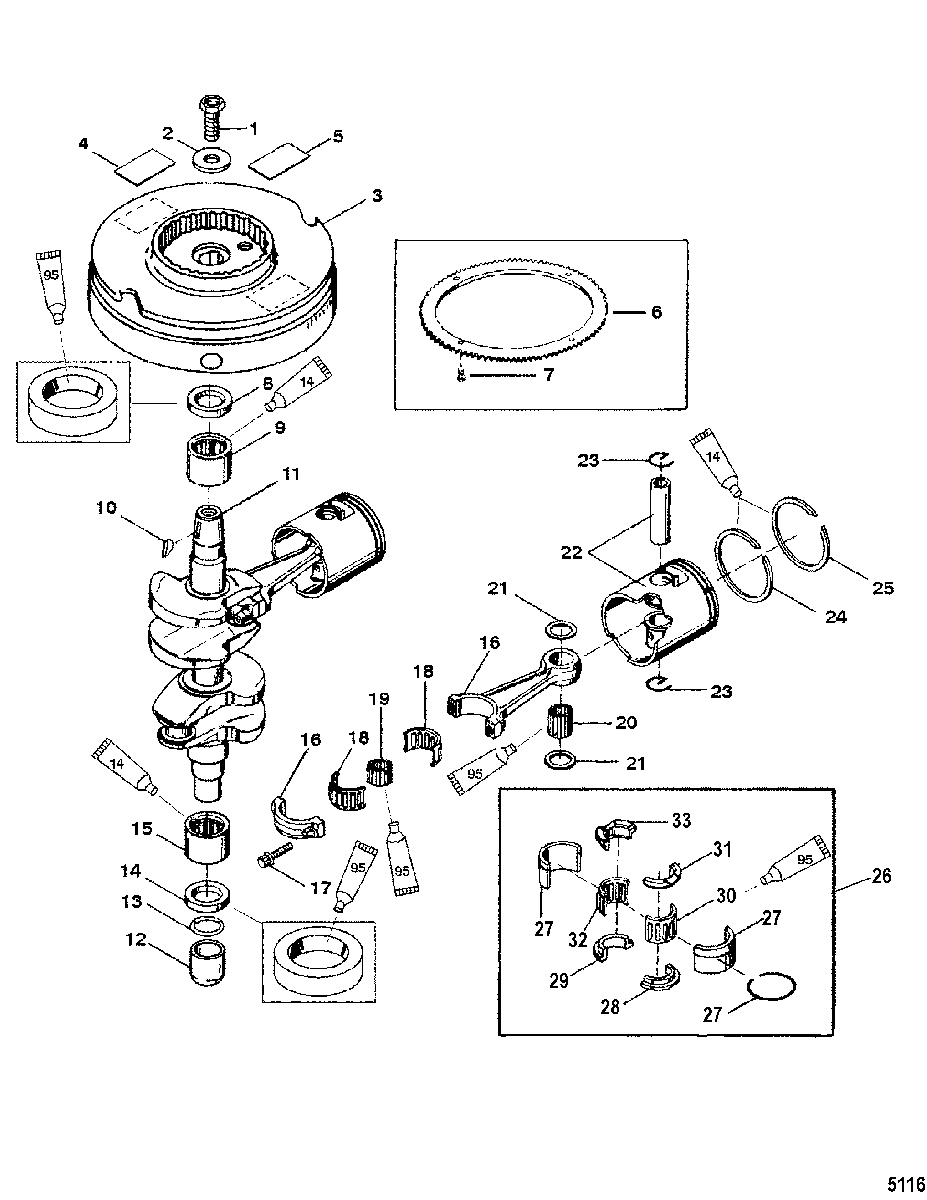

Crankshaft, Pistons and Flywheel для Mariner - 15 MARATHON XD 0P017000 THRU 0P325499
-
№АртикулНазвание
-
110-97359A1 SCREW ASSEMBLY
SN# 0G845347/0P038443 & BelowSCREW ASSEMBLY
SN# 0G845347/0P038443 & Below -
110-40001248 SCREW, (M12 x 25)
SN# 0G845348/0P038444 & UpSCREW, (M12 x 25)
SN# 0G845348/0P038444 & Up -
212-86496 WASHERWASHER
-
3258-859232T14 FLYWHEEL
(Non-Commercial)FLYWHEEL
(Non-Commercial) -
3258-859232T13 FLYWHEEL
(Commercial)FLYWHEEL
(Commercial) -
4NSS NOT SOLD SEPARATE, Decal-WarningNOT SOLD SEPARATE, Decal-Warning
-
5NSS NOT SOLD SEPARATE, Decal-WarningNOT SOLD SEPARATE, Decal-Warning
-
643-99301 RING GEAR
(Electric)RING GEAR
(Electric) -
710-88190313 SCREW, (M5 x 13)
(Electric)SCREW, (M5 x 13)
(Electric) -
826-859741 SEAL, OilSEAL, Oil
-
931-85114T BEARING, Roller - UpperBEARING, Roller - Upper
-
1028-20094 KEY, WoodruffKEY, Woodruff
-
11464-8978T2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
12822445A1 WEAR SLEEVEWEAR SLEEVE
-
13NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
1426-85107 SEAL, Oil, LowerSEAL, Oil, Lower
-
1531-85113T BEARING, Roller - LowerBEARING, Roller - Lower
-
16630-8835A4 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1710-91012 SCREW, (.250-28 Special)SCREW, (.250-28 Special)
-
1831-879877A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
19NSS NOT SOLD SEPARATE, RollerNOT SOLD SEPARATE, Roller
-
2029-98295 BEARING, NeedleBEARING, Needle
-
2112-8M0012294 BEARINGBEARING
-
22767-879878T5 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
22767-9104T19 PISTON ASSEMBLY
(Seapro/Marathon-Chrome Bore) SN# 0T409000/0P153500 & UpPISTON ASSEMBLY
(Seapro/Marathon-Chrome Bore) SN# 0T409000/0P153500 & Up -
22767-879878A6 PISTON ASSEMBLY
(.030 Oversize)PISTON ASSEMBLY
(.030 Oversize) -
2340-828119 LOCK RING, Piston PinLOCK RING, Piston Pin
-
2439-827491A12 RING SET, Piston
(Standard)RING SET, Piston
(Standard) -
2439-18652A2 RING SET, Piston
(.030 Oversize)RING SET, Piston
(.030 Oversize) -
25NSS NOT SOLD SEPARATE, Piston RingNOT SOLD SEPARATE, Piston Ring
-
268M0113968 BEARING ASSEMBLY, Center MainBEARING ASSEMBLY, Center Main
-
27NSS NOT SOLD SEPARATE, BearingNOT SOLD SEPARATE, Bearing
-
28NSS NOT SOLD SEPARATE, Thrust WasherNOT SOLD SEPARATE, Thrust Washer
-
29NSS NOT SOLD SEPARATE, Thrust WasherNOT SOLD SEPARATE, Thrust Washer
-
30NSS NOT SOLD SEPARATE, Needle RollerNOT SOLD SEPARATE, Needle Roller
-
31NSS NOT SOLD SEPARATE, Thrust WasherNOT SOLD SEPARATE, Thrust Washer
-
32NSS NOT SOLD SEPARATE, Needle RollerNOT SOLD SEPARATE, Needle Roller
-
33NSS NOT SOLD SEPARATE, Thrust WasherNOT SOLD SEPARATE, Thrust Washer
-
33NSS NOT SOLD SEPARATE, Thrust WasherNOT SOLD SEPARATE, Thrust Washer
-
-27-41499A88 GASKET SETGASKET SET
-
-804946T02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
