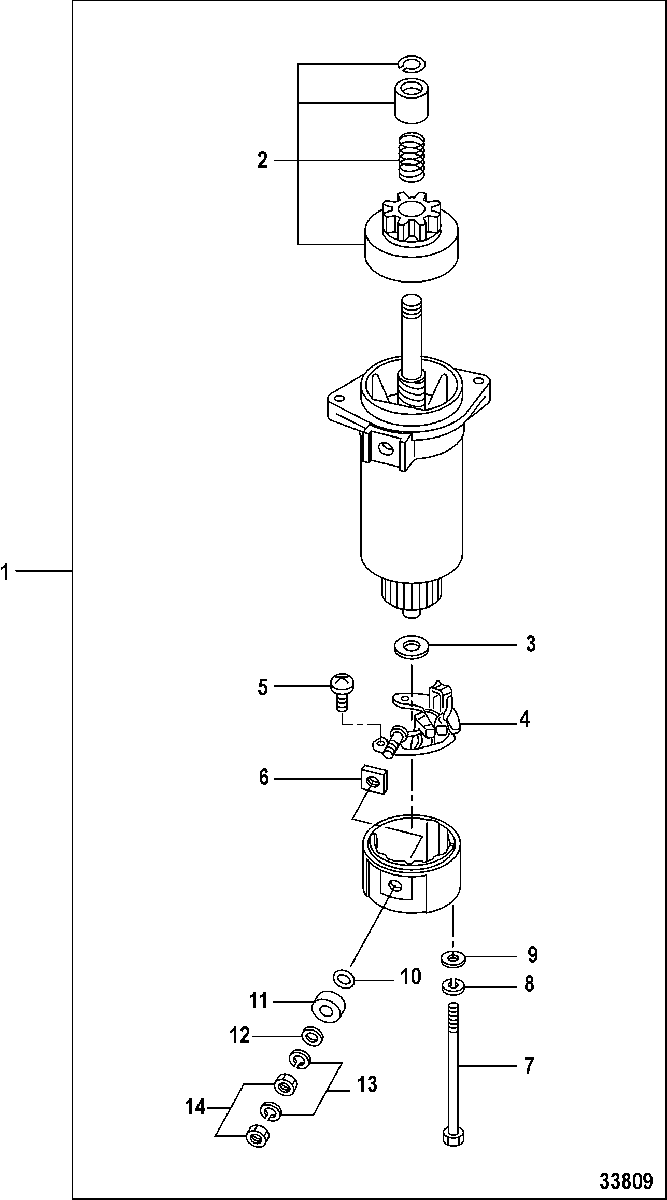

Starter Motor Components для Mariner - 15 Carb(2CYL)(4-STROKE) 0R235949 & Up
-
№АртикулНазвание
-
150-853805T03 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
28538061 PINIONPINION
-
312-8M0137331 WASHERWASHER
-
48M0135544 HOLDER, BrushHOLDER, Brush
-
510-16821 SCREWSCREW
-
623-8M0135546 BUSHINGBUSHING
-
710-162632 BOLTBOLT
-
813-898101181 LOCKWASHERLOCKWASHER
-
912-898101215 WASHERWASHER
-
1025-8M0137333 O-RINGO-RING
-
1123-8M0135545 BUSHINGBUSHING
-
1212-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
1313-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
1411-853722026 NUTNUT
