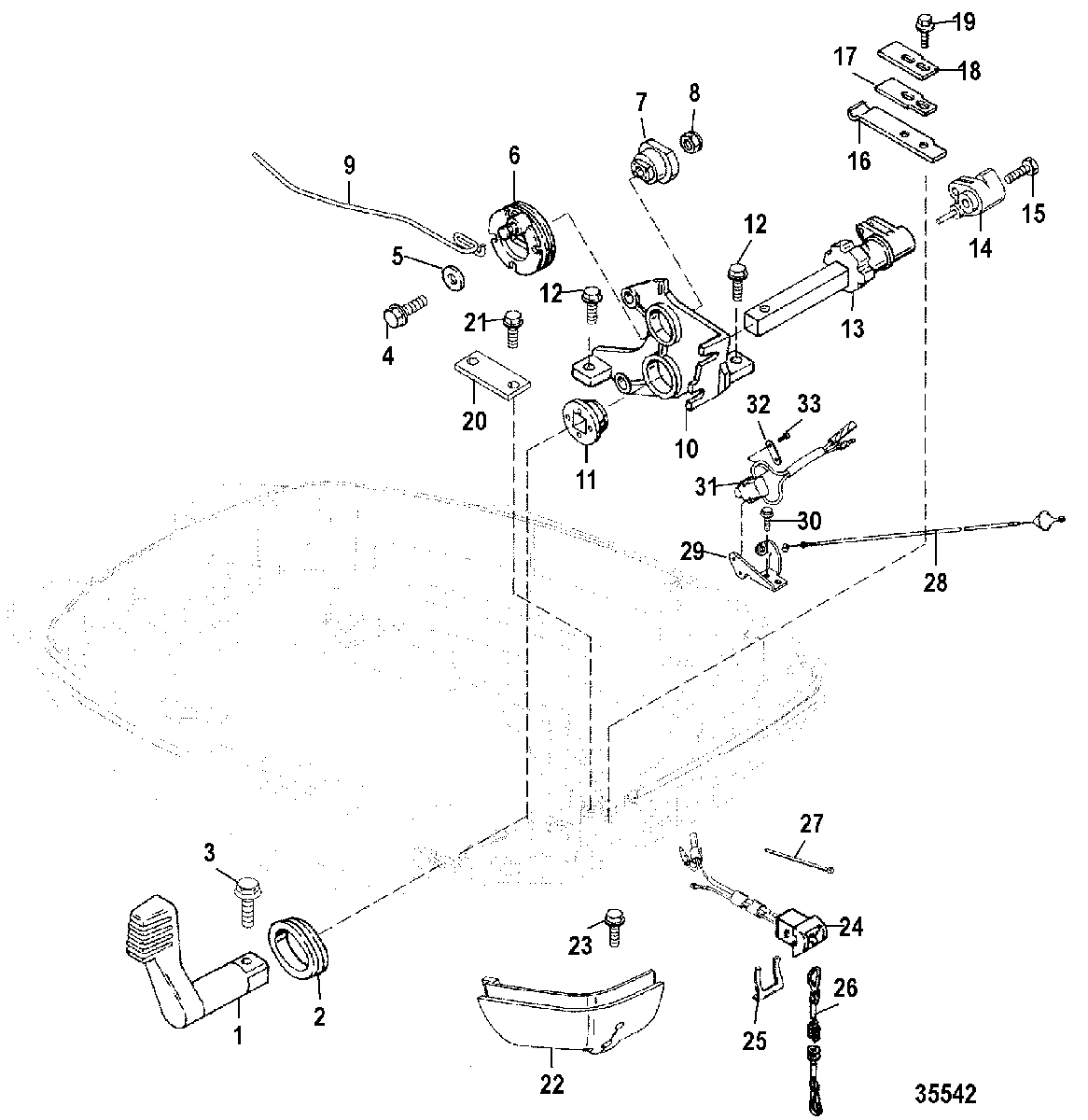

Throttle Linkage, Handle Models для Mariner - 15 (4-STROKE) 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    825792 HANDLE
    HANDLE
  • 2
    25-825781 GROMMET
    GROMMET
  • 3
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 4
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 5
    12-4002316 WASHER
    WASHER
  • 6
    825787A2 PULLEY ASSEMBLY
    PULLEY ASSEMBLY
  • 7
    23-825788 BUSHING
    BUSHING
  • 8
    11-401366 NUT, (M6)
    NUT, (M6)
  • 9
    882818 LINK
    LINK
  • 10
    8257863 PLATFORM
    PLATFORM
  • 11
    23-825789 BUSHING
    BUSHING
  • 12
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 13
    852494A6 SHIFT SHAFT ASSEMBLY, Horizontal
    BIGFOOT
    SHIFT SHAFT ASSEMBLY, Horizontal
    BIGFOOT
  • 13
    852494A5 SHIFT SHAFT ASSEMBLY, Horizontal
    NON BIGFOOT
    SHIFT SHAFT ASSEMBLY, Horizontal
    NON BIGFOOT
  • 14
    855609 LEVER, Interlock
    BIGFOOT
    LEVER, Interlock
    BIGFOOT
  • 14
    826063 LEVER, Interlock
    NON BIGFOOT
    LEVER, Interlock
    NON BIGFOOT
  • 15
    10-40011111 SCREW, (M5 x 35) Stainless Steel
    SCREW, (M5 x 35) Stainless Steel
  • 16
    24-824992 SPRING, Detent
    SPRING, Detent
  • 17
    24-824993 SPRING, Backing
    SPRING, Backing
  • 18
    824994 SPRING, Plate
    SPRING, Plate
  • 19
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 20
    8280471 STRAP
    STRAP
  • 21
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 22
    852489 COVER
    MANUAL
    COVER
    MANUAL
  • 22
    855743 COVER
    ELECTRIC
    COVER
    ELECTRIC
  • 23
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 24
    87-11083A30 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 25
    8M0032846 RETAINER, Brass
    RETAINER, Brass
  • 26
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 27
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 28
    852472 WIRE
    MANUAL
    WIRE
    MANUAL
  • 29
    855888F BRACKET
    BRACKET
  • 30
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 31
    87-8M0052929 SWITCH ASSEMBLY
    ELECTRIC
    SWITCH ASSEMBLY
    ELECTRIC
  • 32
    824923 PLATE
    ELECTRIC
    PLATE
    ELECTRIC
  • 33
    10-82470620 SCREW, (M3.5 x 20)
    ELECTRIC
    SCREW, (M3.5 x 20)
    ELECTRIC
