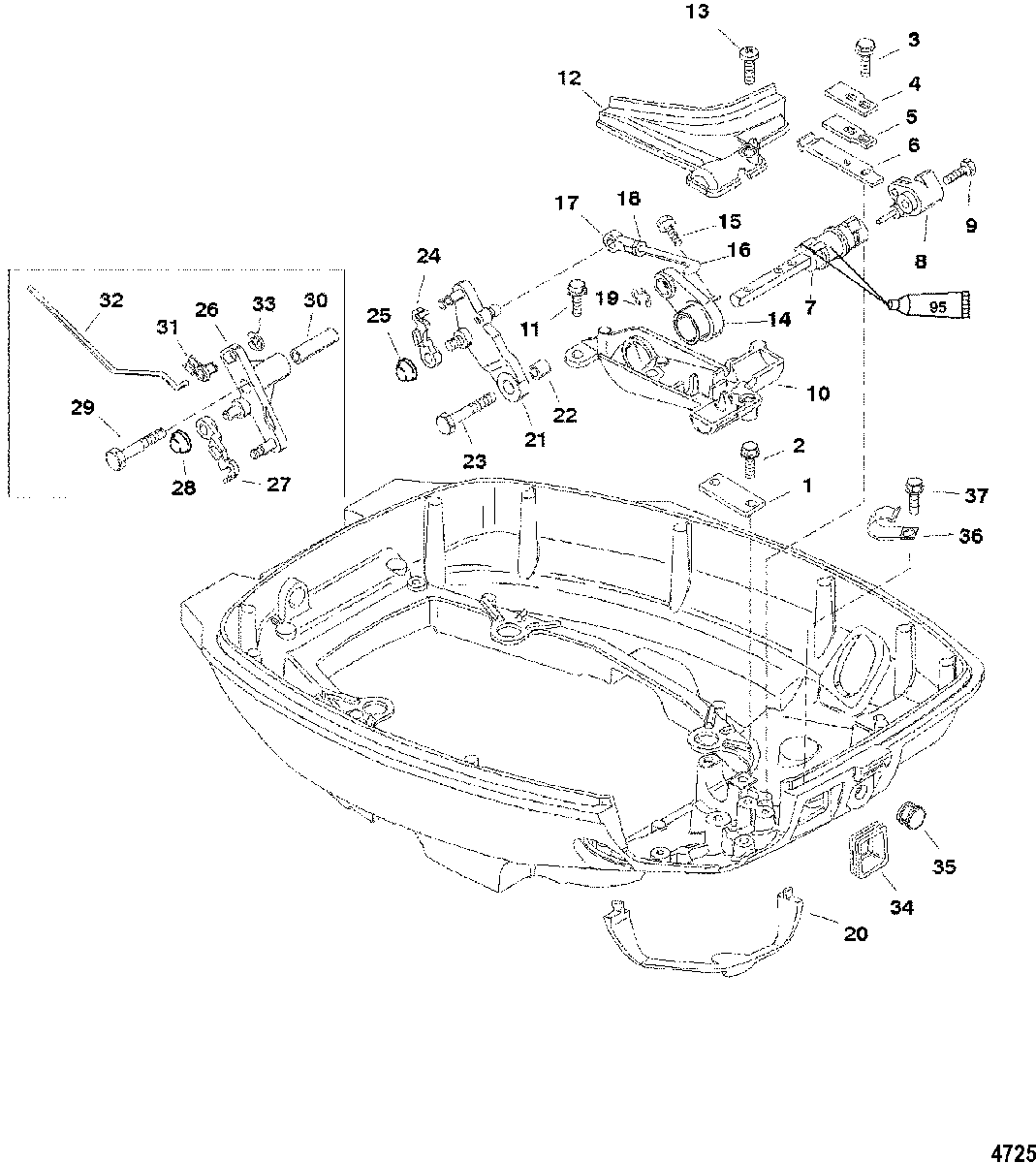

Throttle/Shift Linkage(Non-Handle Models) для Mariner - 15 (4-STROKE) 0P075166 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    8280471 STRAP
    STRAP
  • 2
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 3
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 4
    824994 SPRING, Plate
    SPRING, Plate
  • 5
    24-824993 SPRING, Backing
    SPRING, Backing
  • 6
    24-824992 SPRING, Detent
    SPRING, Detent
  • 7
    852494A6 SHIFT SHAFT ASSEMBLY, Horizontal
    (Bigfoot)
    SHIFT SHAFT ASSEMBLY, Horizontal
    (Bigfoot)
  • 7
    852494A5 SHIFT SHAFT ASSEMBLY, Horizontal
    (Non-Bigfoot)
    SHIFT SHAFT ASSEMBLY, Horizontal
    (Non-Bigfoot)
  • 8
    855609 LEVER, Interlock
    (Bigfoot)
    LEVER, Interlock
    (Bigfoot)
  • 8
    826063 LEVER, Interlock
    (Non-Bigfoot)
    LEVER, Interlock
    (Non-Bigfoot)
  • 9
    10-40011111 SCREW, (M5 x 35) Stainless Steel
    SCREW, (M5 x 35) Stainless Steel
  • 10
    835415F REMOTE CONTROL PLATFORM
    REMOTE CONTROL PLATFORM
  • 11
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 12
    852498 COVER
    COVER
  • 13
    10-832047 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 14
    8524961 LEVER, Shift Shaft
    LEVER, Shift Shaft
  • 15
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 16
    852497A2 SHIFT LINK ASSEMBLY
    SHIFT LINK ASSEMBLY
  • 17
    817428 SOCKET
    SOCKET
  • 18
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 19
    53-857213 RING, Retaining
    RING, Retaining
  • 20
    8354191 SEAL
    SEAL
  • 21
    850856 LEVER, Shift
    LEVER, Shift
  • 22
    23-91912 BUSHING
    BUSHING
  • 23
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 24
    822459 RETAINER
    RETAINER
  • 25
    11-825677 PUSH NUT
    PUSH NUT
  • 26
    850857 LEVER, Throttle
    LEVER, Throttle
  • 27
    822459 RETAINER
    RETAINER
  • 28
    11-825677 PUSH NUT
    PUSH NUT
  • 29
    10-82129145 SCREW, (M6 x 45)
    SCREW, (M6 x 45)
  • 30
    23-855765 BUSHING
    BUSHING
  • 31
    828049 SLIDE
    SLIDE
  • 32
    882817 LINK, Throttle
    SN# USA-0T800999/BEL-0P267999 & Below
    LINK, Throttle
    SN# USA-0T800999/BEL-0P267999 & Below
  • 32
    882817 LINK, Throttle
    SN# USA-0T801000/BEL-0P268000 & Up
    LINK, Throttle
    SN# USA-0T801000/BEL-0P268000 & Up
  • 33
    53-8237951 RING, Retaining
    RING, Retaining
  • 34
    25-828114 GROMMET
    GROMMET
  • 35
    19-855937 PLUG
    PLUG
  • 36
    54-28700 CLAMP
    (Electric)
    CLAMP
    (Electric)
  • 37
    10-82239312 SCREW, (M5 x 12)
    (Electric)
    SCREW, (M5 x 12)
    (Electric)
