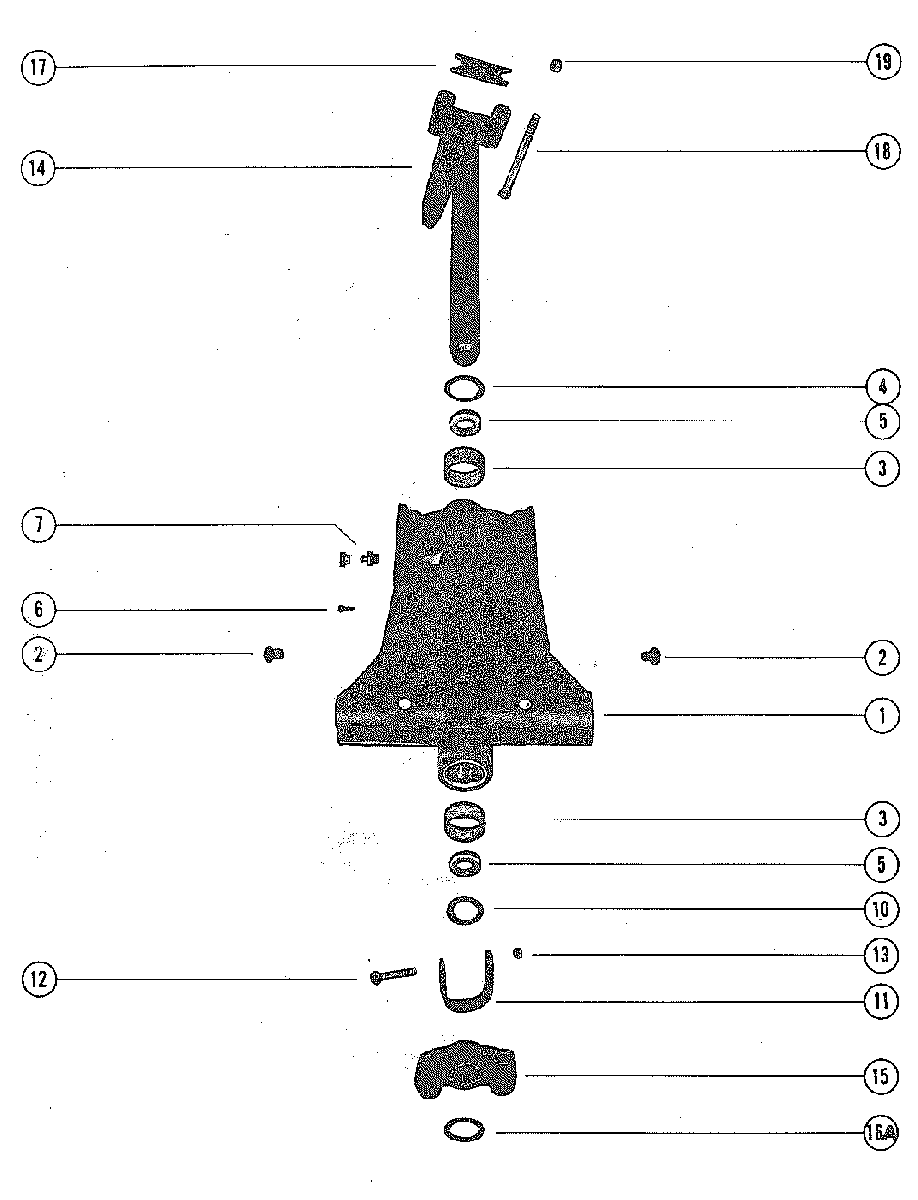

SWIVEL BRACKET ASSEMBLY для Mariner - 140 5443030 AND UP
-
№АртикулНазвание
-
11482-6386A4 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
223-69132 BUSHING, REVERSE LOCK PIVOT SHAFTBUSHING, REVERSE LOCK PIVOT SHAFT
-
323-69341 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
412-69342 WASHER, SWIVEL PIN - UPPERWASHER, SWIVEL PIN - UPPER
-
526-37448 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
610-47828 SCREW, DRIVE - SWIVEL BRACKETSCREW, DRIVE - SWIVEL BRACKET
-
722-74036 FITTING, GREASE - SWIVEL BRACKETFITTING, GREASE - SWIVEL BRACKET
-
1012-37429 WASHER, SWIVEL PIN - LOWERWASHER, SWIVEL PIN - LOWER
-
1128205T STRAP STO, DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STO, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
-
1210-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")
-
1311-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
1417-73593A2 SWIVEL PING AND ARM ASSEMBLYSWIVEL PING AND ARM ASSEMBLY
-
1573984T YOKE, BOTTOMYOKE, BOTTOM
-
16A53-73591 RETAINING RING, BOTTOM YOKE ATTACHINGRETAINING RING, BOTTOM YOKE ATTACHING
-
1728203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
1810-49554 BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")
-
1911-34933 NUT, STEERING ARM BOLT FASTENEINGNUT, STEERING ARM BOLT FASTENEING
Все узлы модели:
- .015 OVERSIZE PISTONS AND RINGS
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET AND REVERSE LOCK
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- END CAP, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STARTER MOTOR AND STATOR
- FUEL PUMP AND FUEL LINE ASSEMBLY
- FUEL TANK ASSEMBLY (6 GALLON)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- HYDRAULIC PUMP AND CONTROL VALVE
- HYDRAULIC PUMP ASSEMBLY
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM CYLINDER REPAIR KITS
- REMOTE CONTROL ASSEMBLY (ELECTRIC)
- REMOTE CONTROL ASSEMBLY (ELECTRIC) (USE ON MARINER 90)
- STARTER MOTOR ASSEMBLY, COMPLETE
- • SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND LINK RODS
- TOP COWL AND SUPPORT BRACKETS
- TRIM CYLINDERS AND HYDRAULIC HOSES
- WIRING HARNESS, SWITCH BOX AND IGNITION COIL
