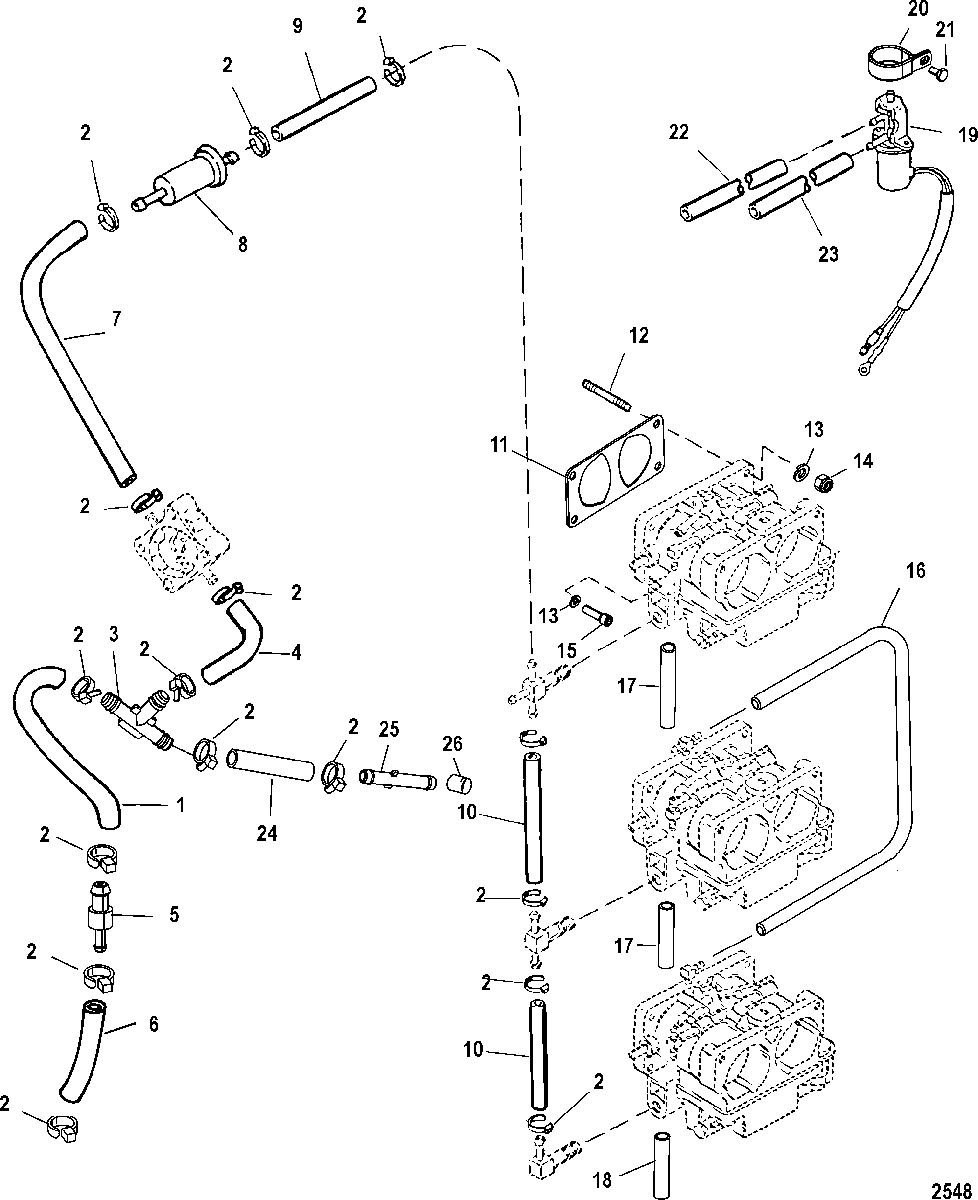

Fuel Lines для Mariner - 140 JET 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    32-82381335 TUBING, (15.00 Inches Bulk) (Cut to 4-1/2 Inches)
    TUBING, (15.00 Inches Bulk) (Cut to 4-1/2 Inches)
  • 2
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 3
    22-818993 CONNECTOR, Tee
    CONNECTOR, Tee
  • 4
    32-830760 HOSE
    HOSE
  • 5
    22-8189941 CHECK VALVE
    CHECK VALVE
  • 6
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 2 Inches)- To Oil Pump
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 2 Inches)- To Oil Pump
  • 7
    32-830762 HOSE
    HOSE
  • 8
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 9
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 11 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 11 Inches)
  • 10
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 4-1/2 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 4-1/2 Inches)
  • 11
    27-828292 GASKET
    GASKET
  • 12
    16-270372 STUD, (.250-28 x 1.125)
    STUD, (.250-28 x 1.125)
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 14
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 15
    10-55715 SCREW, (.250-20 x .880)
    SCREW, (.250-20 x .880)
  • 16
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 9 Inches)
    SN# 0T800999 & Below
    TUBING, (20.00 Feet Bulk) (Cut to 9 Inches)
    SN# 0T800999 & Below
  • 16
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 9 Inches)
    SN# 0T801000 & Up
    TUBING, (240.00 Inches Bulk) (Cut to 9 Inches)
    SN# 0T801000 & Up
  • 17
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 4-1/4 Inches)
    HOSE, (.187) (26.00 Inches Bulk) (Cut to 4-1/4 Inches)
  • 18
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (26 Inches RequiredI)- To Cylinder Head
    HOSE, (.187) (26.00 Inches Bulk) (26 Inches RequiredI)- To Cylinder Head
  • 19
    89-819503A4 SOLENOID KIT, Enrichner Valve
    SOLENOID KIT, Enrichner Valve
  • 20
    54-633003 CLAMP
    CLAMP
  • 21
    10-73286 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 22
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 4-1/2 Inches)- To Top Carb
    TUBING, (36.00 Inches Bulk) (Cut to 4-1/2 Inches)- To Top Carb
  • 23
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 3-3/4 Inches)-To Middle Carb
    TUBING, (36.00 Inches Bulk) (Cut to 3-3/4 Inches)-To Middle Carb
  • 24
    32-85682257 TUBING, (26.00 Inches Bulk) (Cut to 18 Inches)
    TUBING, (26.00 Inches Bulk) (Cut to 18 Inches)
  • 25
    22-822769 CONNECTOR
    CONNECTOR
  • 26
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • -
    27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included
    GASKET SET, Engine, Cylinder head o-rings and seal not included
  • -
    812815R97 POWERHEAD ASSEMBLY
    (135)
    POWERHEAD ASSEMBLY
    (135)
  • -
    823434R00 POWERHEAD ASSEMBLY
    (140/150/XR6/MAGNUM III)
    POWERHEAD ASSEMBLY
    (140/150/XR6/MAGNUM III)
  • -
    813043R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
