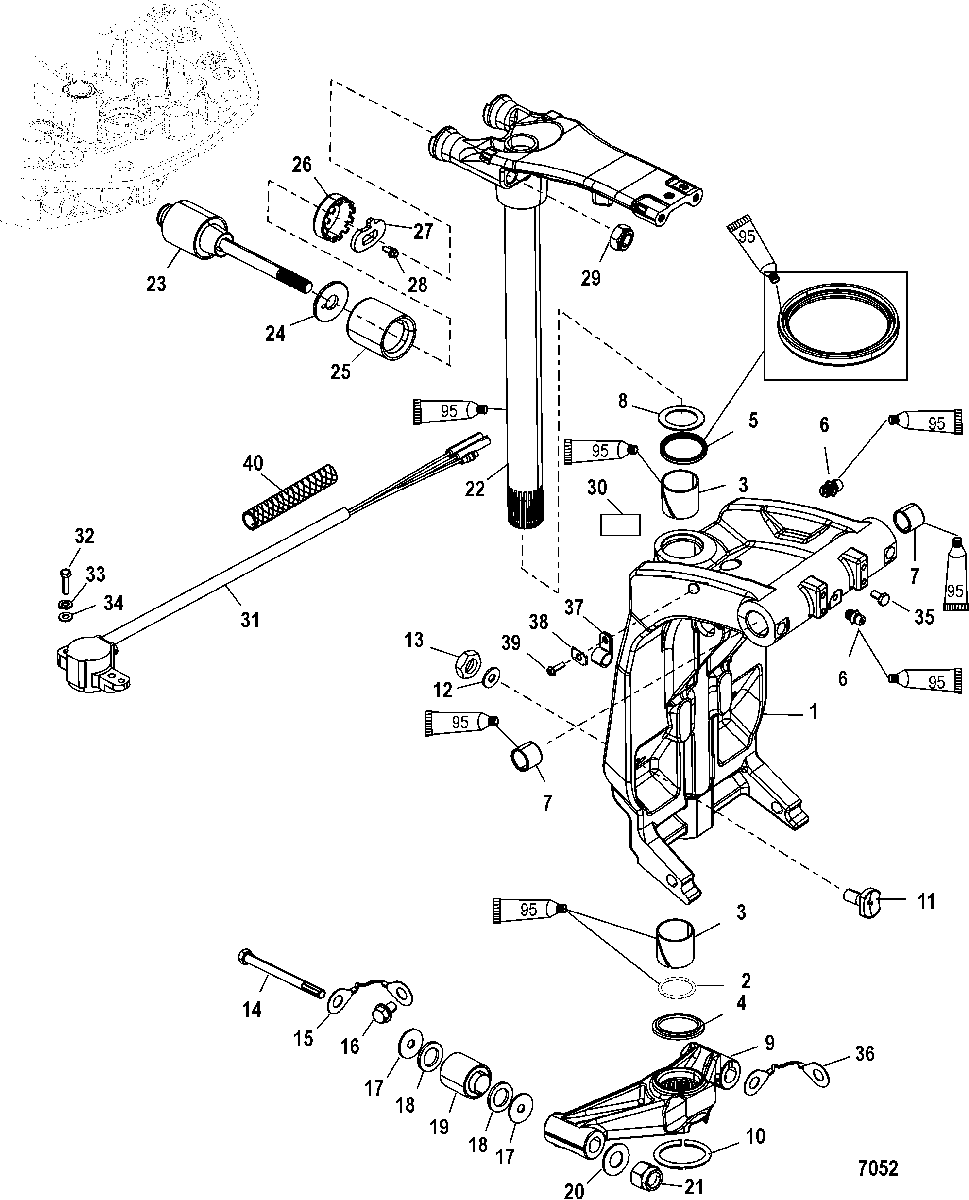

Swivel Bracket and Steering Arm для Mariner - 135 VERADO (4-STROKE)(4 CYL.) 1B381712 THRU 1B517158
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKETSWIVEL BRACKET
-
225-33504 O-RINGO-RING
-
323-818764 BUSHINGBUSHING
-
423-816039 SPACERSPACER
-
526-87735 SEAL, Oil (Lower)SEAL, Oil (Lower)
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
812-816432 THRUST WASHERTHRUST WASHER
-
9896888T YOKE, BottomYOKE, Bottom
-
1053-67684 RING, RetainingRING, Retaining
-
118M0045383 STRIKER PLATESTRIKER PLATE
-
1213-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1311-46335 NUT, (.375-24)NUT, (.375-24)
-
1410-896217 BOLT, (M14 x 175)BOLT, (M14 x 175)
-
1588238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1610-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
1712-815432 WASHER, (.562 x 2.00 x .125)WASHER, (.562 x 2.00 x .125)
-
1812-8154331 WASHER, (1.25 x 2.00 x .19)WASHER, (1.25 x 2.00 x .19)
-
19813771003 MOUNT, LowerMOUNT, Lower
-
2012-825190 WASHERWASHER
-
2111-896602 NUT, (M14)NUT, (M14)
-
2217-8M0133581 SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
23897991A01 MOUNT ASSEMBLYMOUNT ASSEMBLY
-
2412-898443 WASHER, RetainerWASHER, Retainer
-
25898444001 SLEEVESLEEVE
-
2611-897731001 NUT, SpannerNUT, Spanner
-
27897728 RETAINERRETAINER
-
2810-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
2911-896602 NUT, (M14)NUT, (M14)
-
30NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
31896688001 SENDER ASSEMBLY, TrimSENDER ASSEMBLY, Trim
-
3210-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
-
3313-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
3412-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
3510-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
3688238T22 CABLE ASSEMBLYCABLE ASSEMBLY
-
3754-22740 CLIPCLIP
-
388M0084613 C WASHERC WASHER
-
3910-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
4032-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to16 Inches)CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to16 Inches)
