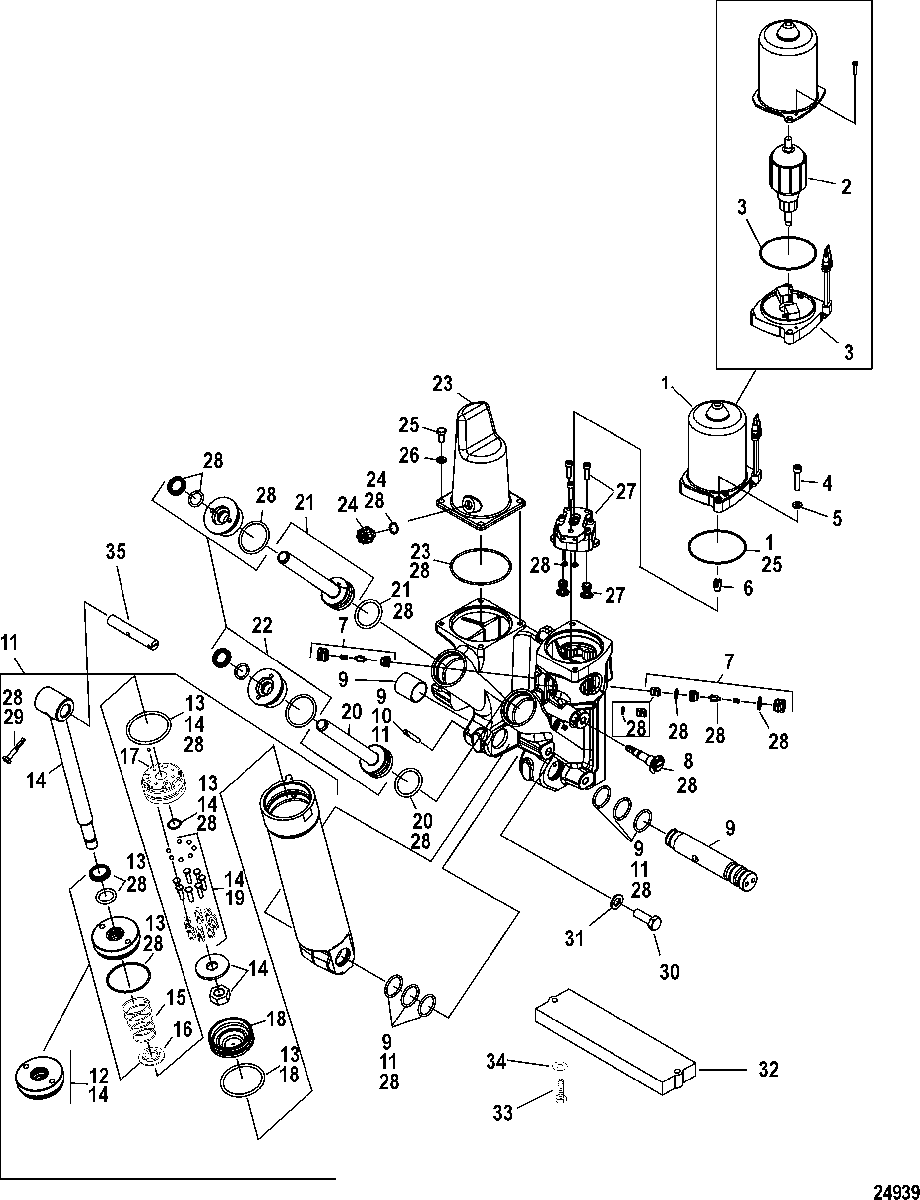

Power Trim Components для Mariner - 135 VERADO (4-STROKE)(4 CYL.) 0P514869 & Up

  • №
    Артикул
    Название
  • -
    855998A11 POWER TRIM KIT
    POWER TRIM KIT
  • 1
    8M0031551 TRIM MOTOR
    TRIM MOTOR
  • 2
    NSS NOT SOLD SEPARATE, Armature
    NOT SOLD SEPARATE, Armature
  • 3
    NSS NOT SOLD SEPARATE, End Frame
    NOT SOLD SEPARATE, End Frame
  • -
    25-878285 O-RING
    O-RING
  • 4
    10-82494830 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 5
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 6
    8M0090403 DRIVESHAFT
    DRIVESHAFT
  • 7
    878410A1 PO CHECK KIT
    PO CHECK KIT
  • 8
    893929A01 MANUAL RELEASE ASSEMBLY (Includes Reference #26)
    MANUAL RELEASE ASSEMBLY (Includes Reference #26)
  • 9
    878241A03 SHAFT KIT
    SHAFT KIT
  • 10
    17-878267 PIN
    PIN
  • 11
    898479A03 CYLINDER ASSEMBLY, Tilt
    CYLINDER ASSEMBLY, Tilt
  • 12
    8M0090322 GUIDE KIT (Includes Reference #26)
    GUIDE KIT (Includes Reference #26)
  • 13
    878409A1 O-RING KIT (Includes Reference #26)
    O-RING KIT (Includes Reference #26)
  • 14
    NSS NOT SOLD SEPARATE, Shock Rod Kit
    NOT SOLD SEPARATE, Shock Rod Kit
  • 15
    NSS NOT SOLD SEPARATE, Spring-Damper
    NOT SOLD SEPARATE, Spring-Damper
  • 16
    NSS NOT SOLD SEPARATE, Plate-Damper
    NOT SOLD SEPARATE, Plate-Damper
  • 17
    NSS NOT SOLD SEPARATE, Shock Piston
    NOT SOLD SEPARATE, Shock Piston
  • 18
    878242A02 PISTON ASSEMBLY, Memory
    PISTON ASSEMBLY, Memory
  • 19
    8M0090322 REPAIR KIT, Check Valve (Includes Reference #26)
    REPAIR KIT, Check Valve (Includes Reference #26)
  • 20
    878414T01 PISTON ASSEMBLY (Starboard)
    PISTON ASSEMBLY (Starboard)
  • 21
    878413A1 PISTON ASSEMBLY (Port)
    PISTON ASSEMBLY (Port)
  • 22
    1100-8M0021648 GUIDE ASSEMBLY
    GUIDE ASSEMBLY
  • 23
    878264A1 RESERVOIR KIT
    RESERVOIR KIT
  • 24
    19-811613 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • 25
    10-4000327 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 26
    12-4002315 WASHER
    WASHER
  • 27
    892251A01 PUMP KIT
    PUMP KIT
  • 28
    878408A1 REPAIR KIT, Power Trim
    REPAIR KIT, Power Trim
  • 29
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 30
    10-858771 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 31
    12-4002319 WASHER
    WASHER
  • 32
    97-818298Q1 ANODE KIT
    ANODE KIT
  • 33
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 34
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 35
    99625003 SHAFT, Upper Tilt
    SHAFT, Upper Tilt
