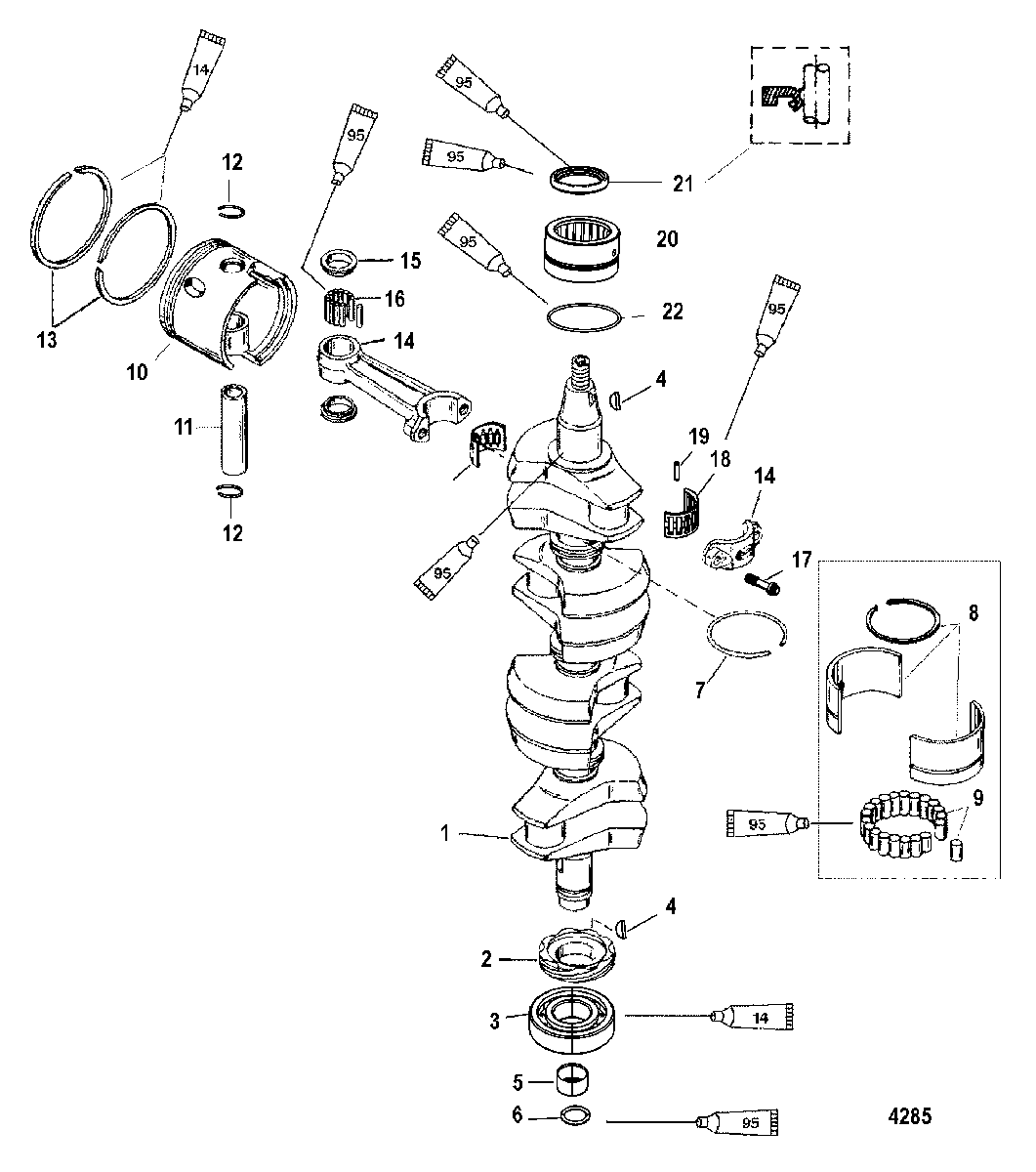

Crankshaft, Pistons and Connecting Rods для Mariner - 125 (4 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
1473-9193T5 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
243-43019A1 GEAR ASSEMBLYGEAR ASSEMBLY
-
330-43011T BEARING, Ball, LowerBEARING, Ball, Lower
-
428-91800 KEY, WoodruffKEY, Woodruff
-
5786611 WEAR SLEEVEWEAR SLEEVE
-
625-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
739-818412A4 RING ASSEMBLYRING ASSEMBLY
-
842943A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
9NSS NOT SOLD SEPARATE, Roller BearingNOT SOLD SEPARATE, Roller Bearing
-
102704-826191T4 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
102704-821896A3 PISTON ASSEMBLY
(.015 O.S.)PISTON ASSEMBLY
(.015 O.S.) -
102704-821896A4 PISTON ASSEMBLY
(.030 O.S.)PISTON ASSEMBLY
(.030 O.S.) -
11NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
1253-857196 LOCK RINGLOCK RING
-
1339-822321A12 RING KIT, Piston - Standard
(Standard)RING KIT, Piston - Standard
(Standard) -
1339-822321A1 RING KIT, Piston - .015 Oversize
(.015 O.S.)RING KIT, Piston - .015 Oversize
(.015 O.S.) -
1339-822321A2 RING SET, Piston
(.030 O.S.)RING SET, Piston
(.030 O.S.) -
14646-818846T6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1512-8M0012298 WASHERWASHER
-
1629-818391001 BEARING, NeedleBEARING, Needle
-
1710-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1831-844338A01 BEARING ASSEMBLYBEARING ASSEMBLY
-
19NSS NOT SOLD SEPARATE, Roller BearingNOT SOLD SEPARATE, Roller Bearing
-
2031-43013T3 BEARING ASSEMBLY, Roller, UpperBEARING ASSEMBLY, Roller, Upper
-
2126-43993 SEAL, OilSEAL, Oil
-
2225-858225 O-RING
(2.112 X .103 Square)O-RING
(2.112 X .103 Square) -
2225-823683 O-RING, (1.989 x .070)
(1.989 X .070 Round)O-RING, (1.989 x .070)
(1.989 X .070 Round) -
-27-13461A99 GASKET SETGASKET SET
-
-17791R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
