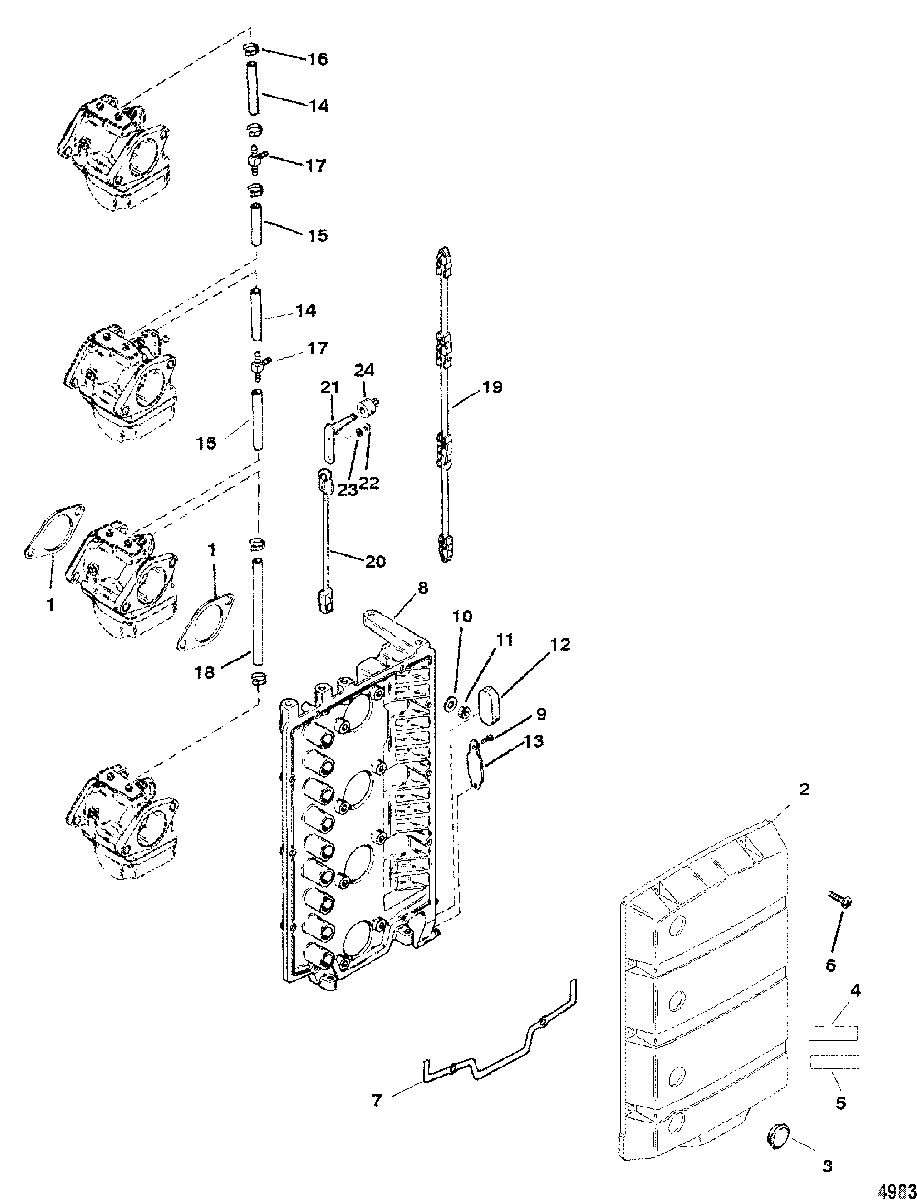

Attenuator Plate для Mariner - 125 (4 CYL.) 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    27-151724 GASKET
    GASKET
  • 2
    44342A1 COVER
    COVER
  • 3
    19-815784 CAP
    CAP
  • 4
    NSS NOT SOLD SEPARATE, Decal-Timing
    NOT SOLD SEPARATE, Decal-Timing
  • 5
    NSS NOT SOLD SEPARATE, Decal-Caution Airbox
    NOT SOLD SEPARATE, Decal-Caution Airbox
  • 6
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 7
    27-828479 GASKET
    GASKET
  • 8
    44340A2 PLATE ASSEMBLY, Attenuator
    PLATE ASSEMBLY, Attenuator
  • 9
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 10
    12-4002217 WASHER
    WASHER
  • 11
    11-826365 NUT
    NUT
  • 12
    39519 CUP
    CUP
  • 13
    98889 LATCH
    LATCH
  • 14
    32-9912878 HOSE, (.187) (26.00 Inches Bulk)
    (Cut to 1.50 Inch Length)
    HOSE, (.187) (26.00 Inches Bulk)
    (Cut to 1.50 Inch Length)
  • 15
    32-9912878 HOSE, (.187) (26.00 Inches Bulk)
    (Cut to 3.25 Inch Length)
    HOSE, (.187) (26.00 Inches Bulk)
    (Cut to 3.25 Inch Length)
  • 16
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 16
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 17
    22-830285 FITTING TEE
    FITTING TEE
  • 18
    32-9912878 HOSE, (.187) (26.00 Inches Bulk)
    (Cut to 5.25 Inch Length)
    HOSE, (.187) (26.00 Inches Bulk)
    (Cut to 5.25 Inch Length)
  • 19
    825203T LINK, Throttle, Main
    LINK, Throttle, Main
  • 20
    193859 LINK ROD
    LINK ROD
  • 21
    11399A1 ARM ASSEMBLY
    ARM ASSEMBLY
  • 22
    10-40056103 SCREW, (M5 x 6)
    SCREW, (M5 x 6)
  • 23
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 24
    67748 ROLLER
    ROLLER
  • -
    27-13461A99 GASKET SET
    GASKET SET
