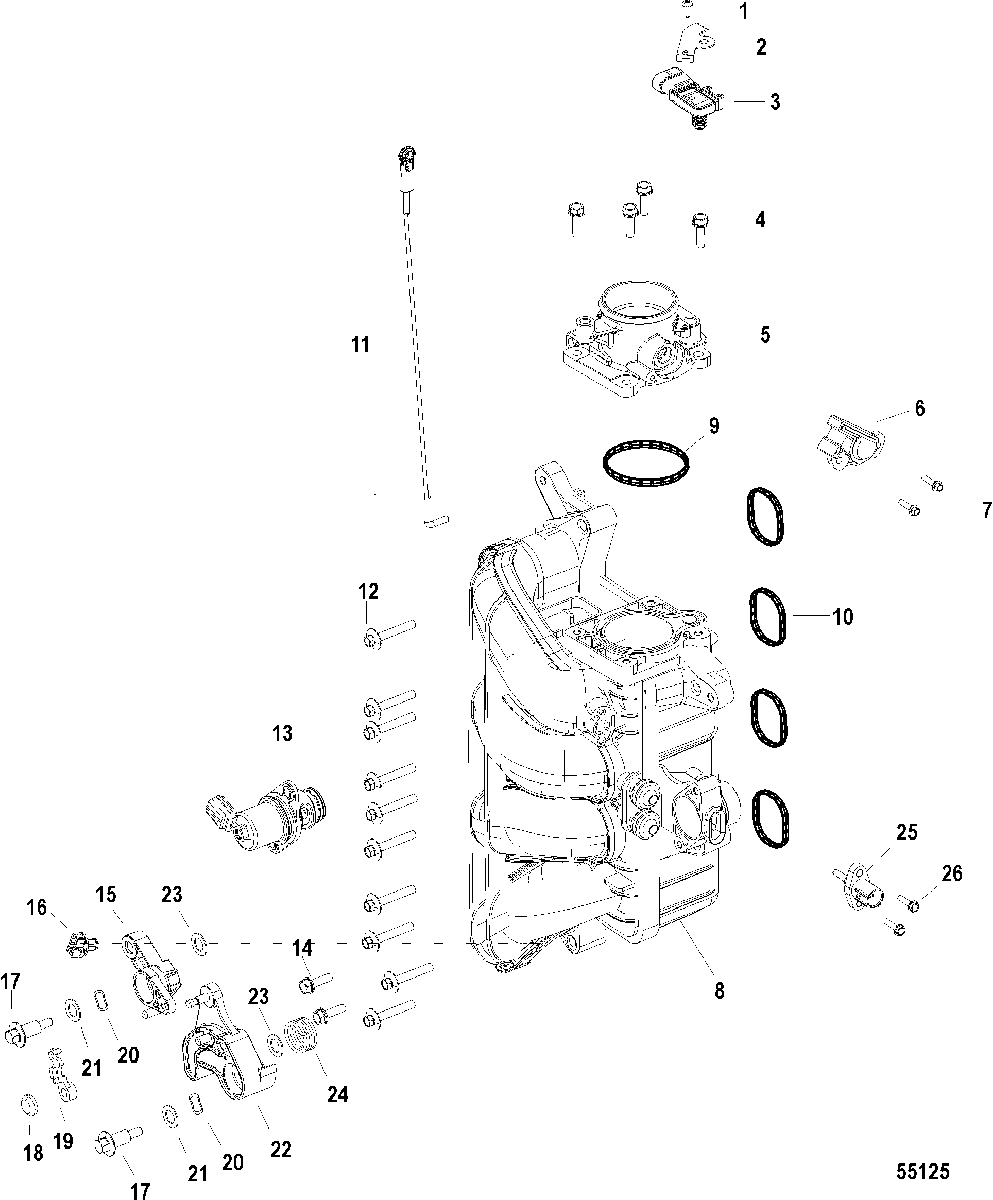

Integrated Air Fuel Module Components для Mariner - 115 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
110-87775610 SCREW, (M4 X 10)SCREW, (M4 X 10)
-
28M0060503 BRACKET - MAP SENSORBRACKET - MAP SENSOR
-
3854445 SENSOR, MAPSENSOR, MAP
-
410-897445501 SCREW, (M6 x 20 MM)SCREW, (M6 x 20 MM)
-
58M0088066 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
68M0125617 SENSOR, PositionSENSOR, Position
-
710-8M0063490 SCREW, (M4 X .7 X 16 MM)SCREW, (M4 X .7 X 16 MM)
-
88M0088065 INTAKE MANIFOLD ASSEMBLYINTAKE MANIFOLD ASSEMBLY
-
925-8M0061361 GASKETGASKET
-
1025-8M0061362 GASKETGASKET
-
118M0059235 LINK - THROTTLE ASSEMBLYLINK - THROTTLE ASSEMBLY
-
1210-8M0060385 SCREW, (M6 X 1 X 37 HEX FLNG HD)SCREW, (M6 X 1 X 37 HEX FLNG HD)
-
13897526T IAC VALVEIAC VALVE
-
1410-897445501 SCREW, (M6 x 20 MM)SCREW, (M6 x 20 MM)
-
158M0077848 LEVER THROTTLE FOLLOWER ASSEMBLYLEVER THROTTLE FOLLOWER ASSEMBLY
-
168M0077229 BUSHING - SWIVELBUSHING - SWIVEL
-
1710-8M0071815 BOLT - SHOULDER, THROTTLE LEVERBOLT - SHOULDER, THROTTLE LEVER
-
1811-825677 PUSH NUTPUSH NUT
-
19822459 RETAINERRETAINER
-
2013-898093 WASHER, WaveWASHER, Wave
-
2112-897937 WASHERWASHER
-
228M0068644 THROTTLE CAM ASSEMBLYTHROTTLE CAM ASSEMBLY
-
2312-897936 WASHERWASHER
-
2424-897535005 SPRING, Throttle Cam ReturnSPRING, Throttle Cam Return
-
25891663001 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
2610-895054 SCREW, (M4 x 16 MM)SCREW, (M4 x 16 MM)
