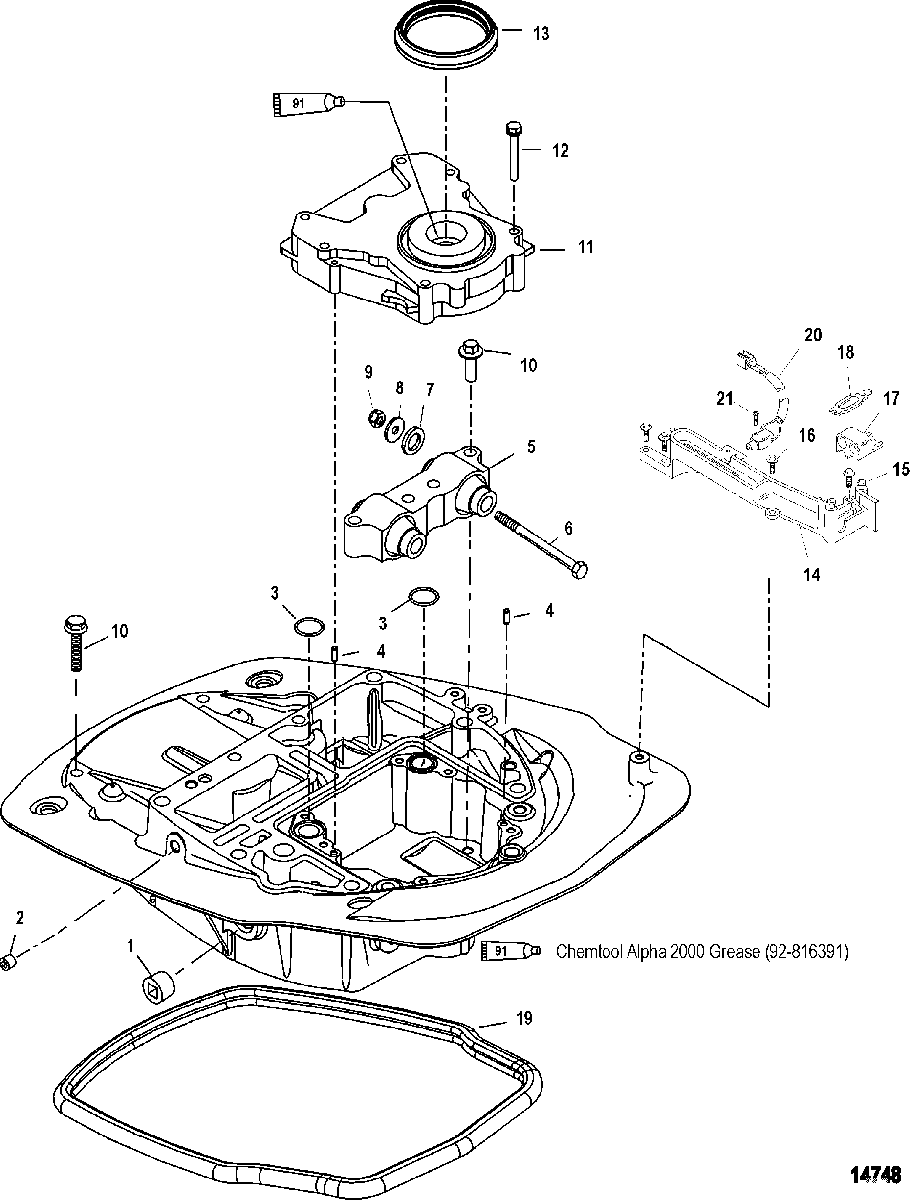

Oil Pump для Mariner - 115 EFI (4-STROKE) 0T178500 THRU 0T800999
-
№АртикулНазвание
-
122-384073 PLUG, Pipe (.500-14)PLUG, Pipe (.500-14)
-
222-479452 PLUGPLUG
-
325-62705001 O-RINGO-RING
-
417-41275M PIN, DowelPIN, Dowel
-
5881900T03 MOUNTMOUNT
-
610-898487 BOLT, (M12 x 175)BOLT, (M12 x 175)
-
712-32834 WASHER, NeopreneWASHER, Neoprene
-
812-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
911-896963 NUT, (M12)NUT, (M12)
-
1010-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
11858579T3 PUMP, OilPUMP, Oil
-
1210-8M0052670 BOLT, (M6 x 45)BOLT, (M6 x 45)
-
1326-804349 SEALSEAL
-
14878562T8 BRACKET, Shift LinkageBRACKET, Shift Linkage
-
1510-42975 DRIVE SCREWDRIVE SCREW
-
1610-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
17878560 CUPCUP
-
1898889 LATCHLATCH
-
198M0043168 SEALSEAL
-
2087-8M0052930 SWITCHSWITCH
-
2110-88075020 SCREW, (M3 x 20)SCREW, (M3 x 20)
Все узлы модели:
- Bottom Cowl
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block
- Cylinder Head
- Drive Shaft Housing
- Electrical Components
- Exhaust Plate
- Flywheel
- Fuel Injection Nozzle
- Fuel Injection Pump
- Fuel Pump
- Gear Housing(Propshaft) (2.07:1) (S/N-0T590053 And Below)
- Gear Housing(Propshaft) (2.07:1) (S/N-0T590054 And Up)
- Gear Housing, Driveshaft (2.07:1) (S/N-0T590053 And Below)
- Gear Housing, Driveshaft (2.07:1) (S/N-0T590054 And Up)
- Ignition Components
- Intake
- Intake And Exhaust Valves
- Intake Silencer
- Key Chart, Ignition Switch
- • Oil Pump
- Power Trim Components
- Sensors
- Service/Support Material
- Starter Motor
- Steering Handle Kit
- Steering Handle Kit Components
- Swivel Bracket And Steering Arm
- Throttle Lever And Linkage
- Tools 1
- Tools 2
- Top Cowl
- Transom Bracket
