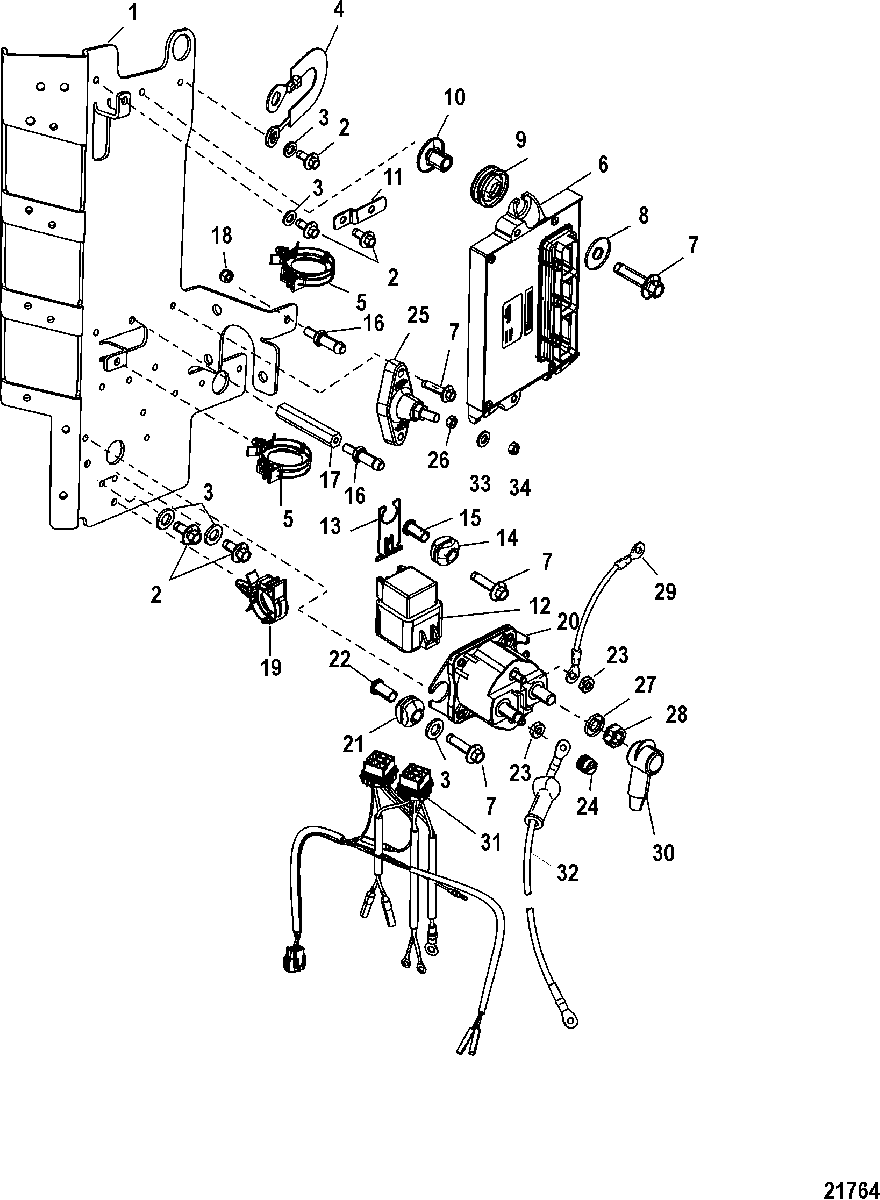

Electrical Components, PCM Mounting, 2B092562 and Below для Mariner - 115 DFI (3 CYL.)(1.5L) 1B736885 & Up

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
    NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
  • 1
    880190T05 PLATE ASSEMBLY, Electrical
    PLATE ASSEMBLY, Electrical
  • 2
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 3
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 4
    84-858414A1 CABLE ASSEMBLY, Braided
    CABLE ASSEMBLY, Braided
  • 5
    54-858755 CLIP, (1.00)
    CLIP, (1.00)
  • 6
    8M0075943 PCM, Propulsion Control Module
    75 Horsepower SN# 1B973559 & Below
    PCM, Propulsion Control Module
    75 Horsepower SN# 1B973559 & Below
  • 6
    8M0075943 PCM, Propulsion Control Module
    75 Horsepower SN# 1B973560 & Up
    PCM, Propulsion Control Module
    75 Horsepower SN# 1B973560 & Up
  • 6
    8M0075861 PCM, Propulsion Control Module
    90 Horsepower SN# 1B973554 & Below
    PCM, Propulsion Control Module
    90 Horsepower SN# 1B973554 & Below
  • 6
    8M0075861 PCM, Propulsion Control Module
    90 Horsepower SN# 1B973555 & Up
    PCM, Propulsion Control Module
    90 Horsepower SN# 1B973555 & Up
  • 6
    8M0075592 PCM, Propulsion Control Module
    115/Jet 80 SN# 1B974742 & Below
    PCM, Propulsion Control Module
    115/Jet 80 SN# 1B974742 & Below
  • 6
    8M0075592 PCM, Propulsion Control Module
    115/Jet 80 SN# 1B974743 & Up
    PCM, Propulsion Control Module
    115/Jet 80 SN# 1B974743 & Up
  • 6
    8M0075599 PCM, Propulsion Control Module
    125 SN# 1B974554 & Below
    PCM, Propulsion Control Module
    125 SN# 1B974554 & Below
  • 6
    8M0075599 PCM, Propulsion Control Module
    125 SN# 1B974555 & Up
    PCM, Propulsion Control Module
    125 SN# 1B974555 & Up
  • 7
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 8
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 9
    25-834985 GROMMET
    GROMMET
  • 10
    23-856954 BUSHING
    BUSHING
  • 11
    858953 BRACKET
    BRACKET
  • 12
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 13
    828102 BRACKET
    BRACKET
  • 14
    25-818967 GROMMET
    GROMMET
  • 15
    23-818968 BUSHING
    BUSHING
  • 16
    8215832 PIN, Special (1.5 Inches)
    PIN, Special (1.5 Inches)
  • 17
    889600 SPACER
    SPACER
  • 18
    11-401376 NUT, (M6)
    NUT, (M6)
  • 19
    54-858954 CLIP, (.625)
    CLIP, (.625)
  • 20
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
  • 21
    25-822179 GROMMET
    GROMMET
  • 22
    23-818968 BUSHING
    BUSHING
  • 23
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 24
    11-813938 CAP NUT, (#10-32)
    CAP NUT, (#10-32)
  • 25
    85-875302A1 HOT STUD ASSEMBLY
    HOT STUD ASSEMBLY
  • 26
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 27
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 28
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 29
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
  • 30
    85-8500673 BOOT, Insulator - Yellow
    BOOT, Insulator - Yellow
  • 31
    84-819514T21 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 32
    84-93388T21 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 33
    12-85172 WASHER
    WASHER
  • 34
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
