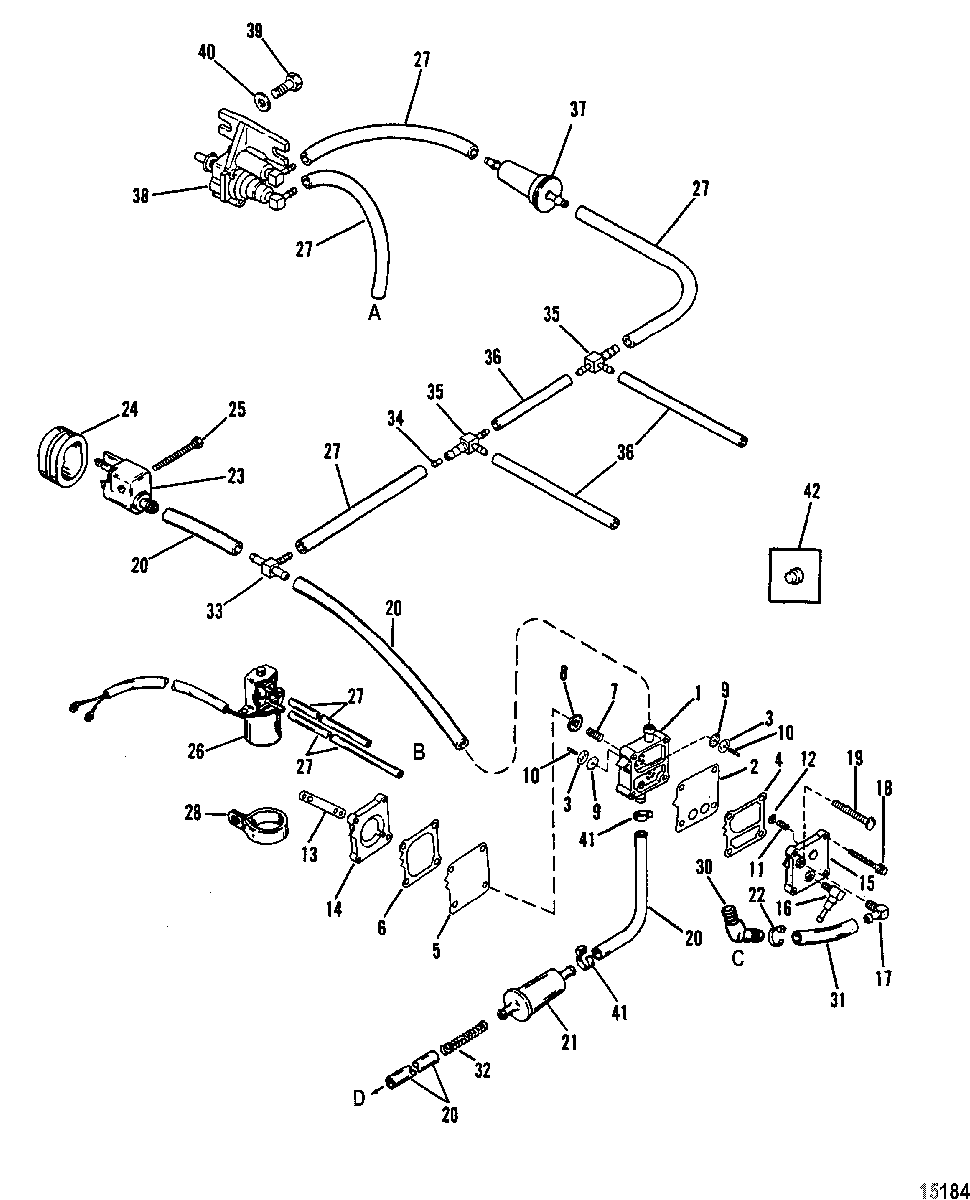

Fuel Pump(Use With 90 Degree Check Valve Reference #16) для Mariner - 115 (4 CYL.) 9559771 THRU 9793576

  • №
    Артикул
    Название
  • 1
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    42909A4 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 4
    NSS NOT SOLD SEPARATE, Gasket, Boost
    NOT SOLD SEPARATE, Gasket, Boost
  • 5
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 6
    NSS NOT SOLD SEPARATE, Gasket, Pulse
    NOT SOLD SEPARATE, Gasket, Pulse
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 10
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 11
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 12
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 13
    27-987691 GASKET
    GASKET
  • 14
    98768 BASE
    BASE
  • 15
    98775A1 PLATE
    PLATE
  • 16
    21-424811 CHECK VALVE
    CHECK VALVE
  • 17
    22-19688 FITTING
    FITTING
  • 18
    10-82104540 SCREW
    SCREW
  • 19
    10-40057134 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 20
    32-8M0108349 TUBING
    (D = To Carburetor)
    TUBING
    (D = To Carburetor)
  • 21
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 22
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 22
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 23
    22-816856Q3 CONNECTOR ASSEMBLY, Fuel - Plastic
    CONNECTOR ASSEMBLY, Fuel - Plastic
  • 24
    25-145091 GROMMET
    GROMMET
  • 25
    10-4010635 SCREW, (M6 x 35) Stainless Steel
    SCREW, (M6 x 35) Stainless Steel
  • 26
    89-819503A2 VALVE, Enrichner
    VALVE, Enrichner
  • 27
    32-1430165 TUBING, (38.00 Inches Bulk)
    (A = To Lower Tee) (B = To Upper Tee)
    TUBING, (38.00 Inches Bulk)
    (A = To Lower Tee) (B = To Upper Tee)
  • 28
    10-F1887 CLAMP
    CLAMP
  • 30
    22-19688 FITTING
    (C = To Crankcase)
    FITTING
    (C = To Crankcase)
  • 31
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 32
    24-68434 SPRING, Old Design
    SPRING, Old Design
  • 33
    22-17607 TEE FITTING
    TEE FITTING
  • 34
    19-17608 FLOW RESTRICTOR
    FLOW RESTRICTOR
  • 35
    22-830570 TEE FITTING
    TEE FITTING
  • 36
    32-892024122 TUBING, (20.00 Feet Bulk)
    TUBING, (20.00 Feet Bulk)
  • 37
    35-8M0042285 FILTER, Fuel
    FILTER, Fuel
  • 38
    14687A4 PUMP ASSEMBLY, Accelerator, Repair Kit, 1395-811287
    PUMP ASSEMBLY, Accelerator, Repair Kit, 1395-811287
  • 39
    10-4009416 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 40
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 41
    54-13791 CLAMP, (15.7), Old Design, New Design Use Reference Number 22
    CLAMP, (15.7), Old Design, New Design Use Reference Number 22
  • 42
    22-56800 PLUG, Pipe (.0625-27), Non Oil Injection
    PLUG, Pipe (.0625-27), Non Oil Injection
  • -
    42909A4 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • -
    27-13461A99 GASKET SET
    GASKET SET
