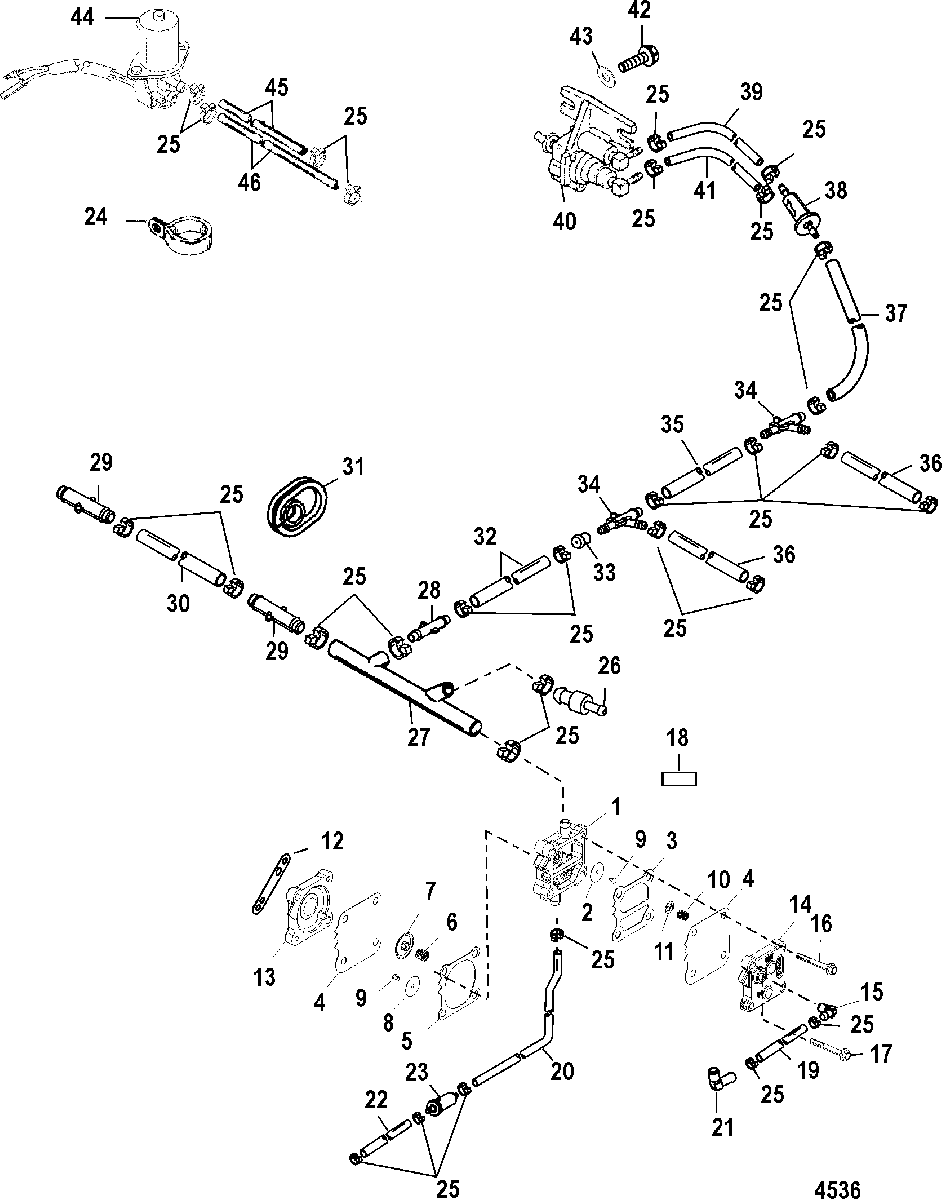

Fuel Pump для Mariner - 115 (4 CYL.) 0T980000 THRU 0T999999

  • №
    Артикул
    Название
  • 1
    14360A78 PUMP KIT, Fuel
    PUMP KIT, Fuel
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 4
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 5
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 6
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 7
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 8
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 9
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 10
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 11
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 12
    27-987691 GASKET
    GASKET
  • 13
    144303 BASE
    BASE
  • 14
    987752 PLATE
    PLATE
  • 15
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 16
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 17
    10-82130050 SCREW, (M6 x 50), Pump To Block
    SCREW, (M6 x 50), Pump To Block
  • 18
    NSS NOT SOLD SEPARATE, Decal-Assembled in Mexico
    NOT SOLD SEPARATE, Decal-Assembled in Mexico
  • 19
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 4.00 Inch Length)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 4.00 Inch Length)
  • 20
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 8.50 Inch Length)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 8.50 Inch Length)
  • 21
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (To Crankcase)
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (To Crankcase)
  • 22
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 2.00 Inch Length)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 2.00 Inch Length)
  • 23
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 24
    54-188871 CLAMP
    CLAMP
  • 25
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 25
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 26
    22-8189941 CHECK VALVE (To Oil Pump)
    CHECK VALVE (To Oil Pump)
  • 27
    32-822554 MOLDED HOSE
    MOLDED HOSE
  • 28
    22-822771 CONNECTOR
    CONNECTOR
  • 29
    22-822769 CONNECTOR
    CONNECTOR
  • 30
    32-85682257 TUBING, (26.00 Inches Bulk) (Cut to 4.00 Inch Length)
    TUBING, (26.00 Inches Bulk) (Cut to 4.00 Inch Length)
  • 31
    25-145093 GROMMET
    GROMMET
  • 32
    32-1430165 TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length)
    TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length)
  • 33
    19-17608 FLOW RESTRICTOR
    FLOW RESTRICTOR
  • 34
    22-830570 FITTING, Tee
    FITTING, Tee
  • 35
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 4.50 Inch Length)
    TUBING, (240.00 Inches Bulk) (Cut to 4.50 Inch Length)
  • 36
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 2.50 Inch Length)
    TUBING, (240.00 Inches Bulk) (Cut to 2.50 Inch Length)
  • 37
    32-1430165 TUBING, (38.00 Inches Bulk) (Cut to 1.25 Inch Length)
    TUBING, (38.00 Inches Bulk) (Cut to 1.25 Inch Length)
  • 38
    35-8M0042285 FILTER
    FILTER
  • 39
    32-1430165 TUBING, (38.00 Inches Bulk) (Cut to 13.00 Inch Length)
    TUBING, (38.00 Inches Bulk) (Cut to 13.00 Inch Length)
  • 40
    14687A4 PUMP ASSEMBLY, Accelerator
    PUMP ASSEMBLY, Accelerator
  • 41
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 5.25 Inch Length) (To Lower Tee)
    TUBING, (36.00 Inches Bulk) (Cut to 5.25 Inch Length) (To Lower Tee)
  • 42
    10-4009416 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 43
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 44
    89-819503A1 SOLENOID ASSEMBLY, Enrichner Valve
    SOLENOID ASSEMBLY, Enrichner Valve
  • 45
    32-1430165 TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length)
    TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length)
  • 46
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inch Length) (To Upper Tee)
    TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inch Length) (To Upper Tee)
  • -
    27-13461A99 GASKET SET
    GASKET SET
  • -
    17791R97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
