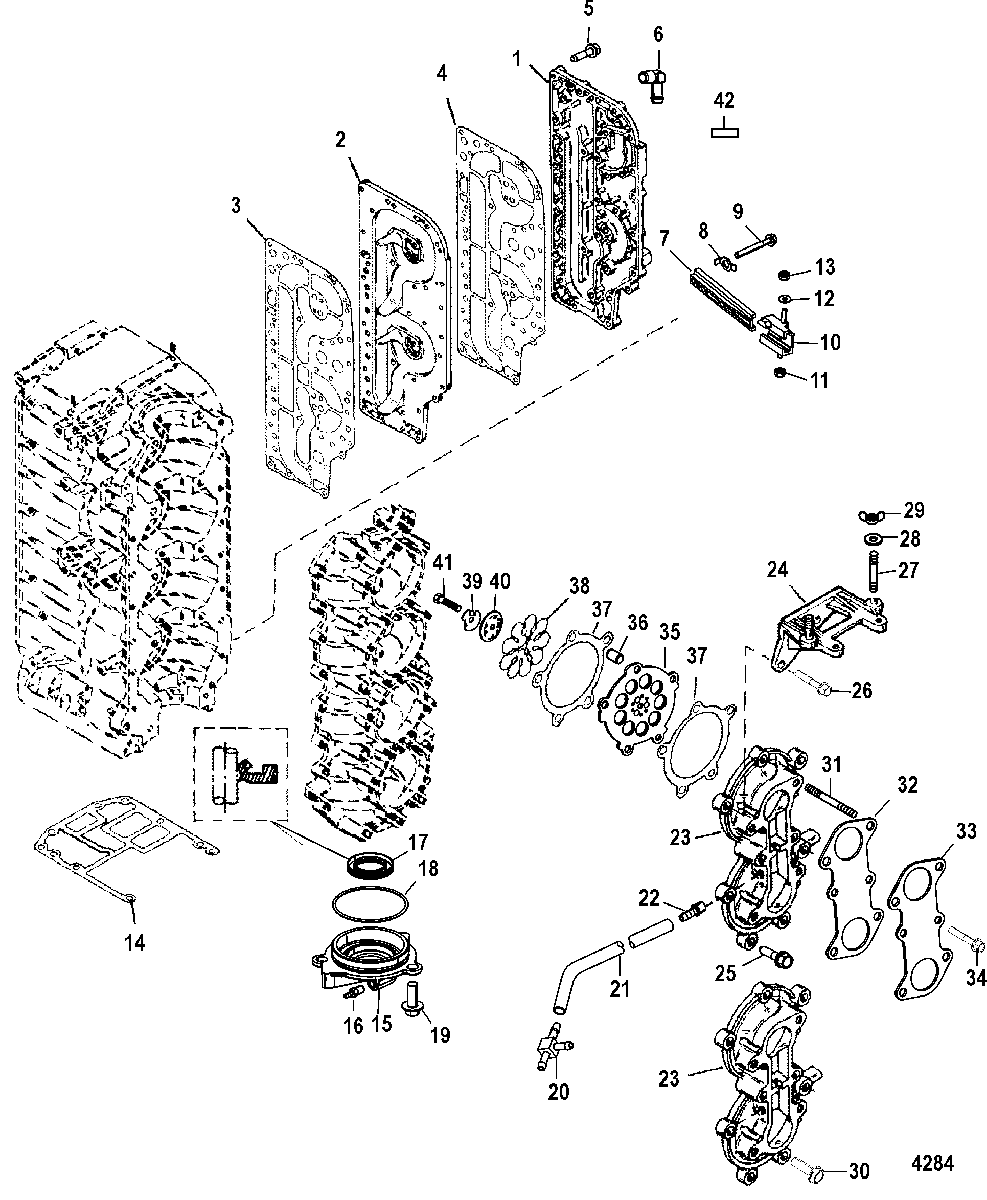

Inducition Manifold and Reed Block для Mariner - 115 (4 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
144325A1 COVER/PLATE KIT, ExhaustCOVER/PLATE KIT, Exhaust
-
2NSS NOT SOLD SEPARATE, Exhaust PlateNOT SOLD SEPARATE, Exhaust Plate
-
327-812775007 GASKET, Baffle Plate to Cylinder BlockGASKET, Baffle Plate to Cylinder Block
-
427-812775006 GASKET, Exhaust Baffle to Exhaust CoverGASKET, Exhaust Baffle to Exhaust Cover
-
510-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
622-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
742881A1 SHIFT RAIL ASSEMBLYSHIFT RAIL ASSEMBLY
-
814-42981 TAB WASHERTAB WASHER
-
910-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
10988851 SLIDESLIDE
-
1111-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1212-35459 WASHERWASHER
-
1311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1427-430075 GASKETGASKET
-
151169-858552T2 END CAP ASSEMBLY, Lower
SN# 0G760300 THRU 0T758474END CAP ASSEMBLY, Lower
SN# 0G760300 THRU 0T758474 -
151169-858552T2 CAP ASSEMBLY, Lower End
SN# 0T758475 THRU 0T979999CAP ASSEMBLY, Lower End
SN# 0T758475 THRU 0T979999 -
1621-426585 CHECK VALVECHECK VALVE
-
1726-41953 SEAL
SN# 0G760300 THRU 0T758474SEAL
SN# 0G760300 THRU 0T758474 -
1726-419533 SEAL, Oil
SN# 0T758475 THRU 0T979999SEAL, Oil
SN# 0T758475 THRU 0T979999 -
1825-89224 O-RINGO-RING
-
1910-4010825 SCREW, (M10 x 25) Hex Flange - Stainless SteelSCREW, (M10 x 25) Hex Flange - Stainless Steel
-
2022-13033 TEE FITTINGTEE FITTING
-
2132-1430165 TUBING, (38.00 Inches Bulk)
(Cut to 5.50 Inch Length)TUBING, (38.00 Inches Bulk)
(Cut to 5.50 Inch Length) -
2222-130351 FITTING (STRAIGHT)FITTING (STRAIGHT)
-
2313545A1 MANIFOLD ASSEMBLY, InductionMANIFOLD ASSEMBLY, Induction
-
24827514 BRACKETBRACKET
-
2510-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2610-81742740 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
2716-8161949 STUD, (M6 x 44)STUD, (M6 x 44)
-
2812-49221 WASHER, (.187 x .500 x .062) NeopreneWASHER, (.187 x .500 x .062) Neoprene
-
2911-816872 WING NUTWING NUT
-
3010-40001167 SCREW, (M8 x 110) (#4 CYLINDER)SCREW, (M8 x 110) (#4 CYLINDER)
-
3116-824470 STUD, (M8 x 1.25) (#1, 2, 3 CYLINDER)STUD, (M8 x 1.25) (#1, 2, 3 CYLINDER)
-
3227-134612 GASKETGASKET
-
3313460 COVERCOVER
-
3410-81742755 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
3542963A11 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
36NSS NOT SOLD SEPARATE, Dowel PinNOT SOLD SEPARATE, Dowel Pin
-
3727-139376 GASKETGASKET
-
3834-43018A1 REED SETREED SET
-
3914-429821 TAB WASHERTAB WASHER
-
4042924 RETAINERRETAINER
-
4110-88421471 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4237-856985A9 DECAL, EPA Label Information
(1999)DECAL, EPA Label Information
(1999) -
4237-804667A00 DECAL, EPA Label Information
(2000)DECAL, EPA Label Information
(2000) -
4237-804667A01 DECAL, EPA Label Information
(2001)DECAL, EPA Label Information
(2001) -
4237-804667A02 DECAL, EPA Label Information
(2002)DECAL, EPA Label Information
(2002) -
4237-804667A03 DECAL, EPA Label Information
(2003)DECAL, EPA Label Information
(2003) -
4237-804667A04 DECAL, EPA Label Information
(2004)DECAL, EPA Label Information
(2004) -
-27-13461A99 GASKET SETGASKET SET
-
-17791R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
