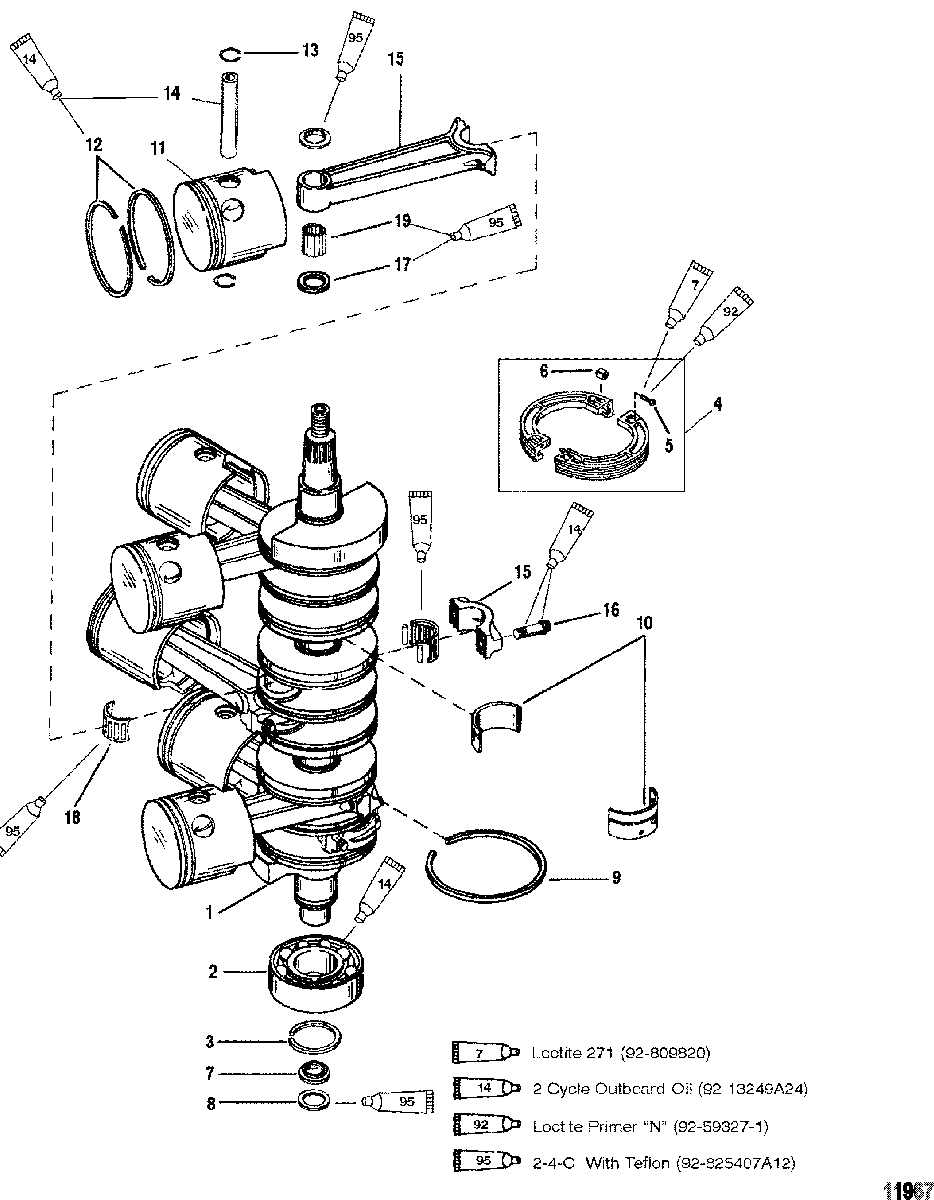

Crankshaft, Pistons And Connecting Rods для Mariner - 105 JET 0G303046 THRU 0G760299

№

Артикул

Название
1

455-9536T4 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY
2

30-67923T BEARING, Ball, Lower

BEARING, Ball, Lower
3

53-67446 RING

RING
4

43-14513A09 GEAR SEGMENT KIT, Drive
(Brown Gear)

GEAR SEGMENT KIT, Drive
(Brown Gear)
5

10-854812 SCREW, (#6-32 x .630) Socket Button Head
(Brown Gear)

SCREW, (#6-32 x .630) Socket Button Head
(Brown Gear)
6

11-854811 NUT, Special (#6-32)
(Brown Gear)

NUT, Special (#6-32)
(Brown Gear)
4

43-14513A09 GEAR SEGMENT KIT, Drive
(Gray Gear)

GEAR SEGMENT KIT, Drive
(Gray Gear)
5

10-813073 SCREW, (#6-32 x .620) Socket Head
(Gray Gear)

SCREW, (#6-32 x .620) Socket Head
(Gray Gear)
6

11-813134 NUT, (#6-32) Special
(Gray Gear)

NUT, (#6-32) Special
(Gray Gear)
7

54196A6 CARRIER ASSEMBLY

CARRIER ASSEMBLY
8

65800 PACKING

PACKING
9

39-67377T RING, Sealing, Crankshaft

RING, Sealing, Crankshaft
10

31-16756A6 BEARING KIT

BEARING KIT
11

765-7441T32 PISTON
(Starboard-Standard, 135/150)

PISTON
(Starboard-Standard, 135/150)
11

765-7443A11 PISTON
(Starboard-.015 Over Sized, 135/150)

PISTON
(Starboard-.015 Over Sized, 135/150)
11

765-7445T11 PISTON
(Starboard-.030 OS., 135/150)

PISTON
(Starboard-.030 OS., 135/150)
11

765-7442T32 PISTON
(Port-Standard, 135/150)

PISTON
(Port-Standard, 135/150)
11

765-7444A11 PISTON
(Port-.015 Over Sized, 135/150)

PISTON
(Port-.015 Over Sized, 135/150)
11

765-7446A11 PISTON
(Port-.030 Over Sized, 135/150)

PISTON
(Port-.030 Over Sized, 135/150)
12

39-93481A12 RING SET, Piston - Standard
(Standard, 135/150)

RING SET, Piston - Standard
(Standard, 135/150)
12

39-78918A4 RING SET, Piston - .015 Oversize
(.015 Over Sized 135/150)

RING SET, Piston - .015 Oversize
(.015 Over Sized 135/150)
12

39-85636A4 RING SET, Piston - .030 Oversize
(.030 Over Sized, 135/150)

RING SET, Piston - .030 Oversize
(.030 Over Sized, 135/150)
13

53-857196 RING, Lock
(135/150)

RING, Lock
(135/150)
14

NSS NOT SOLD SEPARATE, Pision Pin
(135/150)

NOT SOLD SEPARATE, Pision Pin
(135/150)
11

785-9738T9 PISTON ASSEMBLY, Standard
(Starboard Standard) (XR6 Magnum III 175/200)

PISTON ASSEMBLY, Standard
(Starboard Standard) (XR6 Magnum III 175/200)
11

785-9738T10 PISTON ASSEMBLY, .015 Oversize
(Starboard-.015 Over Sized) (XR6 Magnum III 175/200)

PISTON ASSEMBLY, .015 Oversize
(Starboard-.015 Over Sized) (XR6 Magnum III 175/200)
11

785-9737T9 PISTON ASSEMBLY, Standard
(Port Standard) (XR6 Magnum III 175/200)

PISTON ASSEMBLY, Standard
(Port Standard) (XR6 Magnum III 175/200)
11

785-9737A10 PISTON ASSEMBLY, .015 Oversize
(Port-.015 Over Sized) (XR6 Magnum III 175/200

PISTON ASSEMBLY, .015 Oversize
(Port-.015 Over Sized) (XR6 Magnum III 175/200
12

39-822321A12 RING KIT, Piston - Standard
(Standard) (XR6 Magnum III 175/200

RING KIT, Piston - Standard
(Standard) (XR6 Magnum III 175/200
12

39-822321A1 RING KIT, Piston - .015 Oversize
(.015 O.S.) (XR6 Magnum III 175/200)

RING KIT, Piston - .015 Oversize
(.015 O.S.) (XR6 Magnum III 175/200)
13

53-857196 RING, Lock
(XR6 Magnum III 175/200)

RING, Lock
(XR6 Magnum III 175/200)
14

NSS NOT SOLD SEPARATE, Pistion Pin
(XR6 Magnum III 175/200)

NOT SOLD SEPARATE, Pistion Pin
(XR6 Magnum III 175/200)
15

644-818141A13 CONNECTING ROD KIT

CONNECTING ROD KIT
16

10-763491 SCREW, (.312-24 x .875)

SCREW, (.312-24 x .875)
17

12-8M0012298 WASHER

WASHER
18

31-8M0045428 BEARING KIT

BEARING KIT
19

29-822553 BEARING, Needle

BEARING, Needle
-

27-815791A92 GASKET SET, Engine

GASKET SET, Engine
-

812815R97 POWERHEAD ASSEMBLY
(135/150)

POWERHEAD ASSEMBLY
(135/150)
-

823434R97 POWERHEAD ASSEMBLY
(XR6/Magnum III)

POWERHEAD ASSEMBLY
(XR6/Magnum III)
-

812817R97 POWERHEAD ASSEMBLY
(175)

POWERHEAD ASSEMBLY
(175)
-

813043R97 POWERHEAD ASSEMBLY
(200)

POWERHEAD ASSEMBLY
(200)
