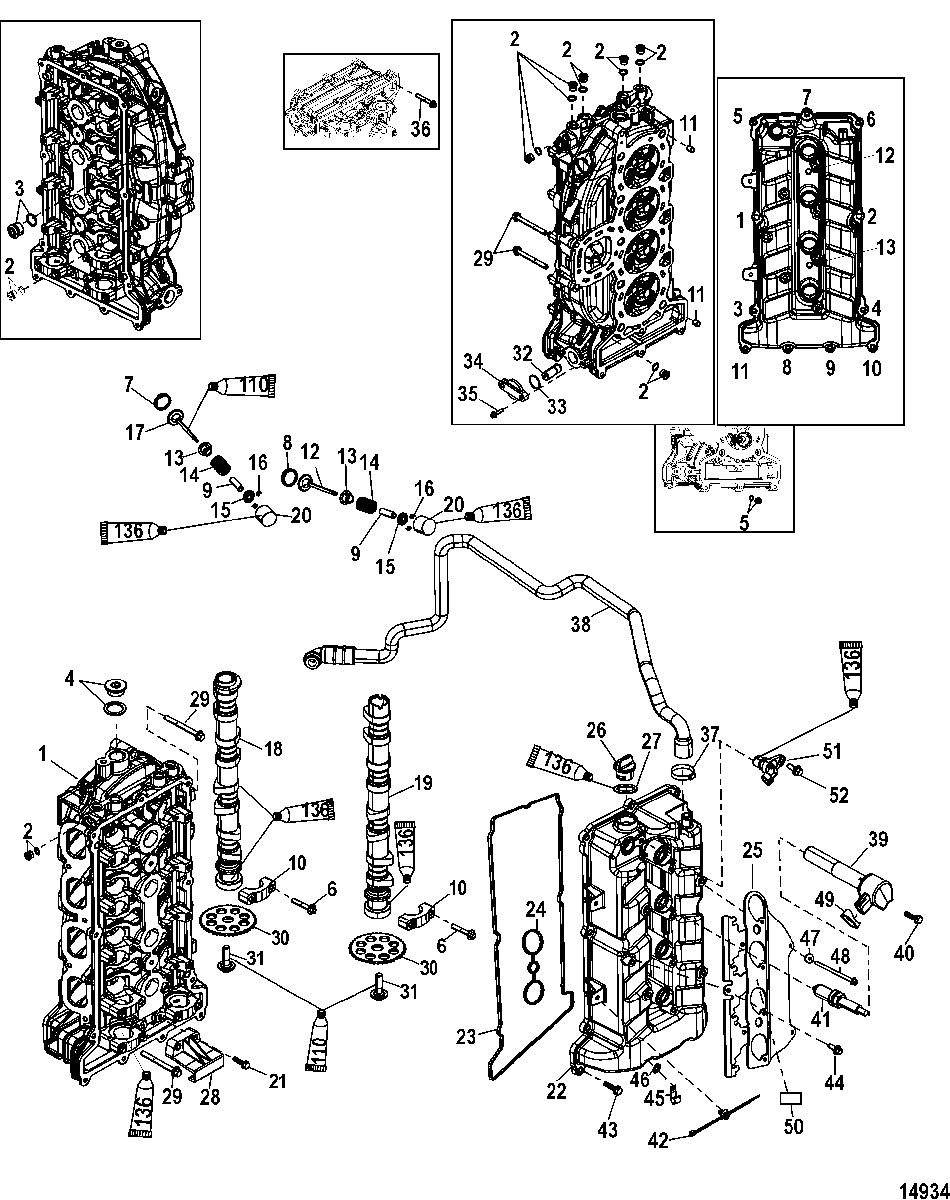

Cylinder Head and Camshaft для Mariner - 100 EFI (4-STROKE) 1B366823 THRU 2B094995

  • №
    Артикул
    Название
  • 1
    900-8M0110154 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 2
    19-889767 PLUG, (12 mm)
    PLUG, (12 mm)
  • 3
    19-891953 PLUG, (18 mm)
    PLUG, (18 mm)
  • 4
    19-896951 PLUG, (24 mm)
    PLUG, (24 mm)
  • 5
    19-8M0087446 PLUG, (10 mm)
    PLUG, (10 mm)
  • 6
    10-892454035 BOLT, (M6 x 36 MM)
    BOLT, (M6 x 36 MM)
  • 7
    880533 SEAT, Intake Valve
    SEAT, Intake Valve
  • 8
    8M0089477 SEAT, Exhaust Valve
    SEAT, Exhaust Valve
  • 9
    880537 GUIDE, Intake and Exhaust Valves
    GUIDE, Intake and Exhaust Valves
  • 10
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 11
    17-880524 PIN, Dowel (14 mm)
    PIN, Dowel (14 mm)
  • 12
    20-898908 VALVE, Exhaust
    SN# 1B493701 & Below
    VALVE, Exhaust
    SN# 1B493701 & Below
  • 12
    20-898908 VALVE, Exhaust
    SN# 1B493702 & Up
    VALVE, Exhaust
    SN# 1B493702 & Up
  • 13
    26-896880 SEAL, Valve
    SEAL, Valve
  • 14
    24-8M0103092 SPRING, Intake and Exhaust Valve
    SPRING, Intake and Exhaust Valve
  • 15
    8M0908500 RETAINER ASSEMBLY, Valves
    RETAINER ASSEMBLY, Valves
  • 16
    28-880543 KEY
    KEY
  • 17
    20-898907 VALVE, Intake
    SN# 1B493701 & Below
    VALVE, Intake
    SN# 1B493701 & Below
  • 17
    20-898907 VALVE, Intake
    SN# 1B493702 & Up
    VALVE, Intake
    SN# 1B493702 & Up
  • 18
    400-898397A04 CAMSHAFT ASSEMBLY, Intake
    CAMSHAFT ASSEMBLY, Intake
  • 18
    400-898397A02 CAMSHAFT ASSEMBLY, Intake 75/80/90/100
    CAMSHAFT ASSEMBLY, Intake 75/80/90/100
  • 19
    400-898077A02 CAMSHAFT ASSEMBLY, Exhaust
    CAMSHAFT ASSEMBLY, Exhaust
  • 20
    899912001 TAPPET
    (2.996)
    TAPPET
    (2.996)
  • 20
    899912002 TAPPET
    (3.021)
    TAPPET
    (3.021)
  • 20
    899912003 TAPPET
    (3.046)
    TAPPET
    (3.046)
  • 20
    899912004 TAPPET
    (3.071)
    TAPPET
    (3.071)
  • 20
    899912005 TAPPET
    (3.096)
    TAPPET
    (3.096)
  • 20
    899912006 TAPPET
    (3.118)
    TAPPET
    (3.118)
  • 20
    899912007 TAPPET
    (3.138)
    TAPPET
    (3.138)
  • 20
    899912008 TAPPET
    (3.158)
    TAPPET
    (3.158)
  • 20
    899912009 TAPPET
    (3.178)
    TAPPET
    (3.178)
  • 20
    899912010 TAPPET
    (3.198)
    TAPPET
    (3.198)
  • 20
    899912011 TAPPET
    (3.218)
    TAPPET
    (3.218)
  • 20
    899912012 TAPPET
    (3.238)
    TAPPET
    (3.238)
  • 20
    899912013 TAPPET
    (3.258)
    TAPPET
    (3.258)
  • 20
    899912014 TAPPET
    (3.278)
    TAPPET
    (3.278)
  • 20
    899912015 TAPPET
    (3.298)
    TAPPET
    (3.298)
  • 20
    899912016 TAPPET
    (3.318)
    TAPPET
    (3.318)
  • 20
    899912017 TAPPET
    (3.338)
    TAPPET
    (3.338)
  • 20
    899912018 TAPPET
    (3.358)
    TAPPET
    (3.358)
  • 20
    899912019 TAPPET
    (3.378)
    TAPPET
    (3.378)
  • 20
    899912020 TAPPET
    (3.398)
    TAPPET
    (3.398)
  • 20
    899912021 TAPPET
    (3.418)
    TAPPET
    (3.418)
  • 20
    899912022 TAPPET
    (3.438)
    TAPPET
    (3.438)
  • 20
    899912023 TAPPET
    (3.458)
    TAPPET
    (3.458)
  • 20
    899912024 TAPPET
    (3.478)
    TAPPET
    (3.478)
  • 20
    899912025 TAPPET
    (3.498)
    TAPPET
    (3.498)
  • 20
    899912026 TAPPET
    (3.518)
    TAPPET
    (3.518)
  • 20
    899912027 TAPPET
    (3.538)
    TAPPET
    (3.538)
  • 20
    899912028 TAPPET
    (3.558)
    TAPPET
    (3.558)
  • 20
    899912029 TAPPET
    (3.578)
    TAPPET
    (3.578)
  • 20
    899912030 TAPPET
    (3.598)
    TAPPET
    (3.598)
  • 20
    899912031 TAPPET
    (3.621)
    TAPPET
    (3.621)
  • 20
    899912032 TAPPET
    (3.646)
    TAPPET
    (3.646)
  • 20
    899912033 TAPPET
    (3.671)
    TAPPET
    (3.671)
  • 20
    899912034 TAPPET
    (3.696)
    TAPPET
    (3.696)
  • 20
    899912035 TAPPET
    (3.721)
    TAPPET
    (3.721)
  • 21
    10-892454030 SCREW, (M6 x 30)
    SN# 1B733388 & Below
    SCREW, (M6 x 30)
    SN# 1B733388 & Below
  • 22
    880553A07 COVER ASSEMBLY, Cam
    SN# 1B461989 & Below
    COVER ASSEMBLY, Cam
    SN# 1B461989 & Below
  • 22
    880553A07 COVER ASSEMBLY, Cam
    SN# 0P512812 & Below
    COVER ASSEMBLY, Cam
    SN# 0P512812 & Below
  • 22
    880553T06 COVER ASSEMBLY, Cam
    SN# 1B461990 THRU 1B733388
    COVER ASSEMBLY, Cam
    SN# 1B461990 THRU 1B733388
  • 22
    880553T06 COVER ASSEMBLY, Cam
    SN# 0P512813 & Up
    COVER ASSEMBLY, Cam
    SN# 0P512813 & Up
  • 22
    880553A07 COVER ASSEMBLY, Cam
    SN# 1B733389 & Up
    COVER ASSEMBLY, Cam
    SN# 1B733389 & Up
  • -
    880553T06 COVER, Cam
    SN# 1B733389 & Up
    COVER, Cam
    SN# 1B733389 & Up
  • 23
    892893 SEAL
    SEAL
  • 24
    892584 SEAL
    SEAL
  • 25
    8M0008370 PLATE ASSEMBLY, Coil
    SN# 1B461989 & Below
    PLATE ASSEMBLY, Coil
    SN# 1B461989 & Below
  • 25
    8M0008370 PLATE ASSEMBLY, Coil
    SN# 0P512812 & Below
    PLATE ASSEMBLY, Coil
    SN# 0P512812 & Below
  • 25
    8M0010552 PLATE ASSEMBLY, Coil
    SN# 1B461990 & Up
    PLATE ASSEMBLY, Coil
    SN# 1B461990 & Up
  • 25
    8M0010552 PLATE ASSEMBLY, Coil
    SN# 0P512813 & Up
    PLATE ASSEMBLY, Coil
    SN# 0P512813 & Up
  • 26
    859578A1 PLUG ASSEMBLY, Oil
    PLUG ASSEMBLY, Oil
  • 27
    25-90196 O-RING, (.921 x .139)
    O-RING, (.921 x .139)
  • 28
    880558 GUIDE, Short
    SN# 1B733388 & Below
    GUIDE, Short
    SN# 1B733388 & Below
  • 29
    10-8M0103817 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 30
    43-880550 SPROCKET, Cam Drive
    SPROCKET, Cam Drive
  • 31
    10-8M0021532 SCREW, (M12 x 40)
    SCREW, (M12 x 40)
  • 32
    898463A01 TENSIONER ASSEMBLY
    TENSIONER ASSEMBLY
  • 33
    25-898836 O-RING, Orange
    O-RING, Orange
  • 34
    1100-8M0064752 END CAP, Tensioner
    END CAP, Tensioner
  • 35
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 36
    10-8M0103809 SCREW, (M6 x 40 MM) Stainless Steel
    SCREW, (M6 x 40 MM) Stainless Steel
  • 37
    54-888988019 CLAMP, (22.6 mm)
    CLAMP, (22.6 mm)
  • 38
    32-897673A01 HOSE ASSEMBLY, Breather
    HOSE ASSEMBLY, Breather
  • 39
    339-880615T01 COIL ASSEMBLY
    COIL ASSEMBLY
  • 40
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 41
    33-898829001 SPARK PLUG, (NGK#LFR4A)
    SPARK PLUG, (NGK#LFR4A)
  • 42
    54-899145 CLIP, Tie Strap
    CLIP, Tie Strap
  • 43
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 44
    10-8M0103804 SCREW, (M6 x 12 MM) Stainless Steel
    SCREW, (M6 x 12 MM) Stainless Steel
  • 45
    54-55098 J CLIP
    J CLIP
  • 46
    13-93702 WASHER, (.250 External Star)
    WASHER, (.250 External Star)
  • 47
    12-8M0008232 WASHER
    WASHER
  • 48
    8M0008535 SCREW, (M6 x 90)
    SN# 1B461989 & Below
    SCREW, (M6 x 90)
    SN# 1B461989 & Below
  • 48
    8M0008535 SCREW, (M6 x 90)
    SN# 0P512812 & Below
    SCREW, (M6 x 90)
    SN# 0P512812 & Below
  • 48
    10-88552585 SCREW, (M6 x 85 MM) Stainless Steel
    SN# 1B461990 & Up
    SCREW, (M6 x 85 MM) Stainless Steel
    SN# 1B461990 & Up
  • 48
    10-88552585 SCREW, (M6 x 85 MM) Stainless Steel
    SN# 0P512813 & Up
    SCREW, (M6 x 85 MM) Stainless Steel
    SN# 0P512813 & Up
  • 49
    25-8M0119617 RING, Rubber, Anti-Rotation
    RING, Rubber, Anti-Rotation
  • 50
    37-8M0008936 DECAL, Coil Screw Torque
    DECAL, Coil Screw Torque
  • 51
    8M0011987 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 52
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel
    SCREW, (M6 x 16 MM) Stainless Steel
  • -
    27-897534A07 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    8M8033014 LONG BLOCK ASSEMBLY, 75/80/90/100
    LONG BLOCK ASSEMBLY, 75/80/90/100
  • -
    8M8033013 LONG BLOCK ASSEMBLY, 115
    LONG BLOCK ASSEMBLY, 115
