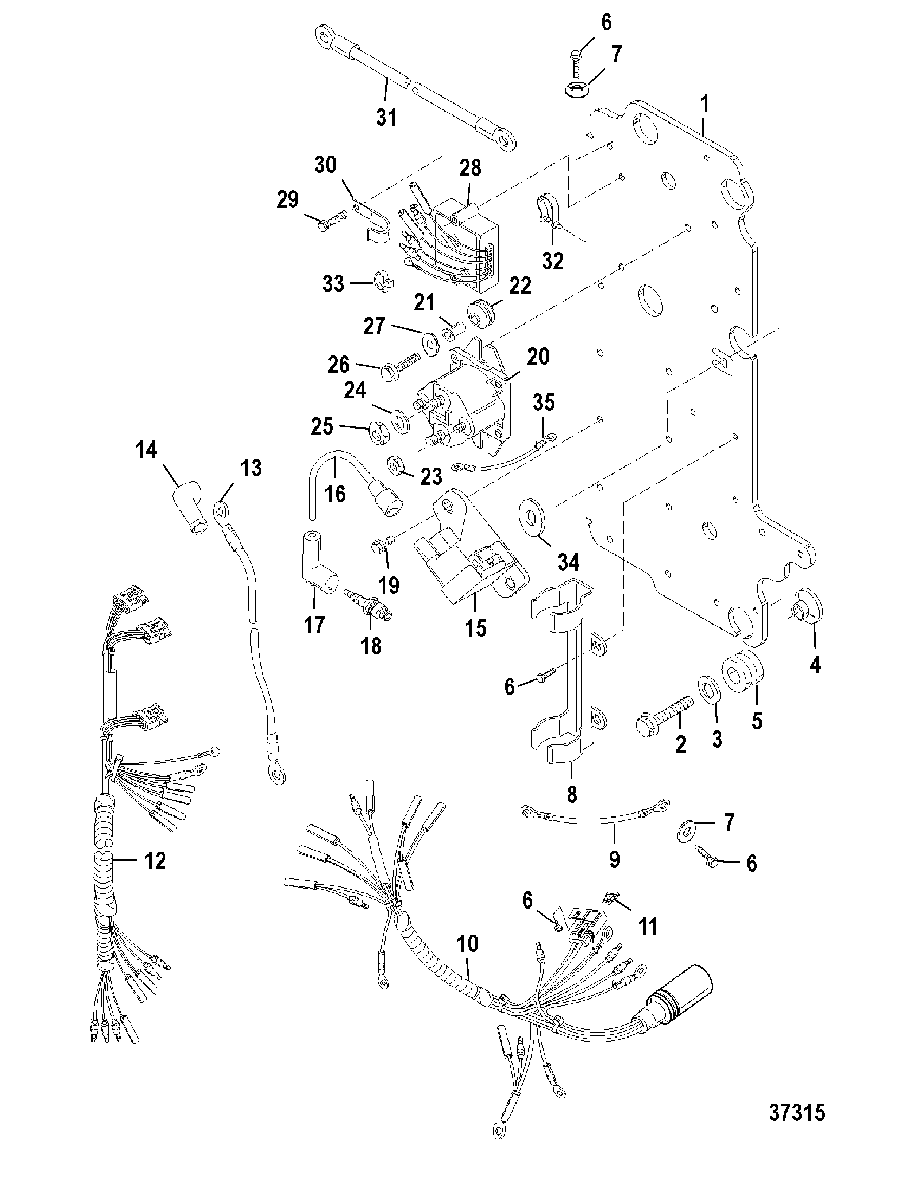

ELECTRICAL COMPONENTS, USA-0G438000/BEL-9937000 AND UP для Mariner - 100 (4 CYL.) 9793577 THRU 0P016999
-
№АртикулНазвание
-
18327531 IGNITION PLATEIGNITION PLATE
-
210-40011150 SCREW, (M8 x 30) Stainless SteelSCREW, (M8 x 30) Stainless Steel
-
312-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
423-8502341 BUSHINGBUSHING
-
525-833155 GROMMETGROMMET
-
610-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
712-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
88261151 CLAMPCLAMP
-
984-88807A44 CABLE ASSEMBLY (10 IN.)CABLE ASSEMBLY (10 IN.)
-
1084-850043A2 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
1188-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
1284-850045A2 HARNESS ASSEMBLY, IgnitionHARNESS ASSEMBLY, Ignition
-
1384-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
1485-830233 BOOT, Insulator - RedBOOT, Insulator - Red
-
15827509A10 CDM MODULE ASSEMBLY
SN# USA-0G438000/BEL-9937000 THRU USA-0G589999/BEL-9973099CDM MODULE ASSEMBLY
SN# USA-0G438000/BEL-9937000 THRU USA-0G589999/BEL-9973099 -
15827509A10 CDM MODULE ASSEMBLY
SN# USA-0G590000/BEL-9973100 & UpCDM MODULE ASSEMBLY
SN# USA-0G590000/BEL-9973100 & Up -
1684-821945A61 CABLE ASSEMBLY, Hi TensionCABLE ASSEMBLY, Hi Tension
-
1785-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
1833-816737Q SPARK PLUG (NGK #BP8H-N-10)SPARK PLUG (NGK #BP8H-N-10)
-
1833-816837Q SPARK PLUG (NGK#BPZ8H-N-10)SPARK PLUG (NGK#BPZ8H-N-10)
-
1910-82129116 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2089-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
2123-818968 BUSHINGBUSHING
-
2225-822179 GROMMETGROMMET
-
2311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2413-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2511-68292 NUT, (.312-18)NUT, (.312-18)
-
2610-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
288M0084173 REGULATOR, VoltageREGULATOR, Voltage
-
2910-82129135 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
3054-54457 J CLIPJ CLIP
-
3184-93388A8 CABLE ASSEMBLY, (12.5 Inchs) BlackCABLE ASSEMBLY, (12.5 Inchs) Black
-
3254-834813 CLAMPCLAMP
-
3354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3412-36001 WASHERWASHER
-
3584-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
