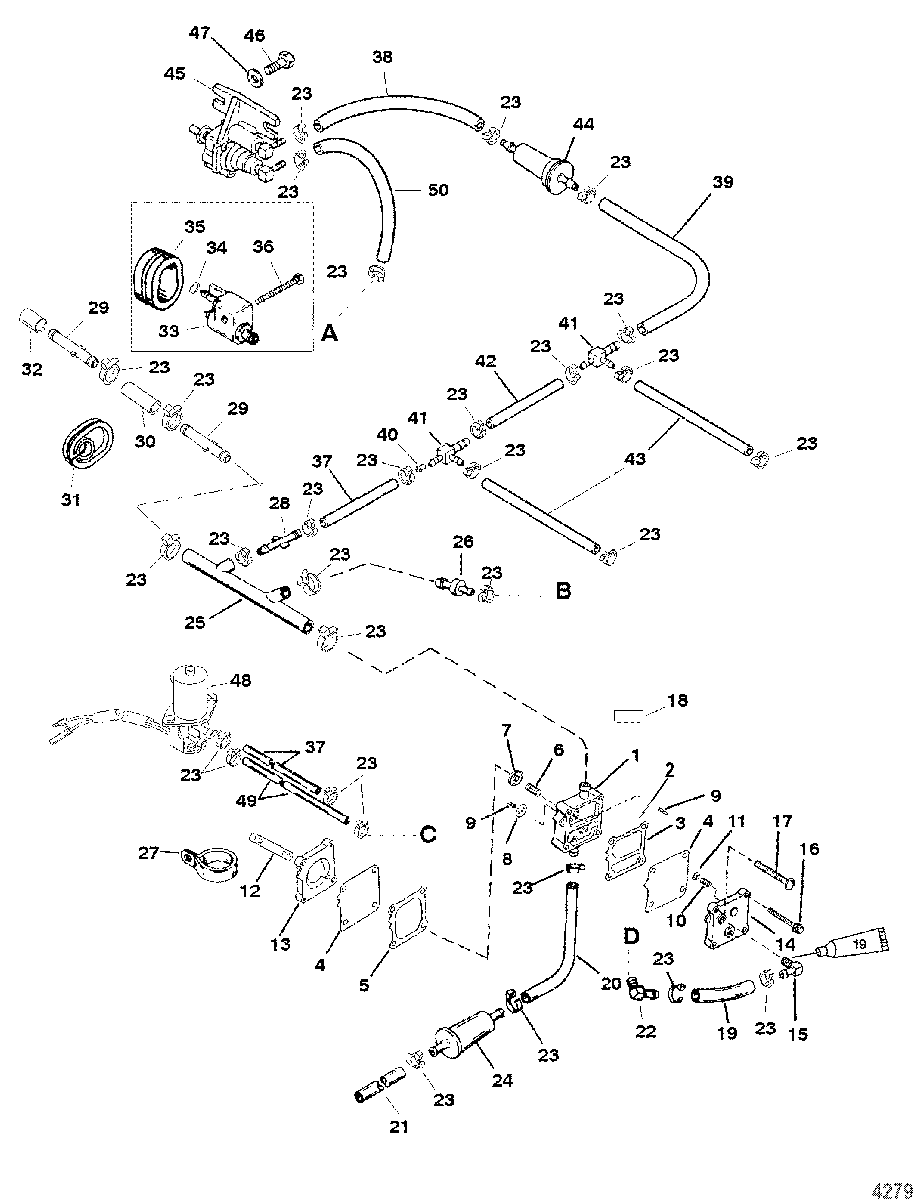

Fuel Pump для Mariner - 100 (4 CYL.) 0P017000 THRU 0P058999

  • №
    Артикул
    Название
  • 1
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 4
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 5
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 6
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 7
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 8
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 9
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 10
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 11
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 12
    27-987691 GASKET
    GASKET
  • 13
    144303 BASE
    BASE
  • 14
    987752 PLATE
    PLATE
  • 15
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 16
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 17
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 18
    NSS NOT SOLD SEPARATE, Decal
    NOT SOLD SEPARATE, Decal
  • 19
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
    (Cut to 4 Inches)
    TUBING, (.312) (70.00 Inches Bulk)
    (Cut to 4 Inches)
  • 20
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
    (Cut to 8.5 Inches)
    TUBING, (.312) (70.00 Inches Bulk)
    (Cut to 8.5 Inches)
  • 21
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
    (Cut to 2 Inches)
    TUBING, (.312) (70.00 Inches Bulk)
    (Cut to 2 Inches)
  • 22
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 23
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 23
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 24
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 25
    32-822554 MOLDED HOSE
    MOLDED HOSE
  • 26
    22-8189941 CHECK VALVE
    CHECK VALVE
  • 27
    54-188871 CLAMP
    CLAMP
  • 28
    22-822771 CONNECTOR
    CONNECTOR
  • 29
    22-822769 CONNECTOR
    SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499
    CONNECTOR
    SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499
  • 30
    32-85682257 TUBING, (26.00 Inches Bulk)
    (Cut to 4 Inch Length) SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499
    TUBING, (26.00 Inches Bulk)
    (Cut to 4 Inch Length) SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499
  • 31
    25-145093 GROMMET
    SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499
    GROMMET
    SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499
  • 32
    NSS NOT SOLD SEPARATE, Plug
    SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499
    NOT SOLD SEPARATE, Plug
    SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499
  • 33
    22-816856Q3 CONNECTOR ASSEMBLY, Fuel
    SN# USA-0G960499/BEL-0P059777 & Below
    CONNECTOR ASSEMBLY, Fuel
    SN# USA-0G960499/BEL-0P059777 & Below
  • 34
    25-16524 O-RING, Fuel Connector
    SN# USA-0G960499/BEL-0P059777 & Below
    O-RING, Fuel Connector
    SN# USA-0G960499/BEL-0P059777 & Below
  • 35
    25-145091 GROMMET
    SN# USA-0G960499/BEL-0P059777 & Below
    GROMMET
    SN# USA-0G960499/BEL-0P059777 & Below
  • 36
    10-4010635 SCREW, (M6 x 35) Stainless Steel
    SN# USA-0G960499/BEL-0P059777 & Below
    SCREW, (M6 x 35) Stainless Steel
    SN# USA-0G960499/BEL-0P059777 & Below
  • 37
    32-1430165 TUBING, (38.00 Inches Bulk)
    (Cut to 15 Inch Length)
    TUBING, (38.00 Inches Bulk)
    (Cut to 15 Inch Length)
  • 38
    32-1430165 TUBING, (38.00 Inches Bulk)
    (Cut to 13 Inch Length)
    TUBING, (38.00 Inches Bulk)
    (Cut to 13 Inch Length)
  • 39
    32-1430165 TUBING, (38.00 Inches Bulk)
    (Cut to 1.25 Inch Length)
    TUBING, (38.00 Inches Bulk)
    (Cut to 1.25 Inch Length)
  • 40
    19-17608 FLOW RESTRICTOR
    FLOW RESTRICTOR
  • 41
    22-830570 FITTING, Tee
    FITTING, Tee
  • 42
    32-892024122 TUBING, (20.00 Feet Bulk)
    (Cut to 4.50 Inch Length)
    TUBING, (20.00 Feet Bulk)
    (Cut to 4.50 Inch Length)
  • 43
    32-892024122 TUBING, (20.00 Feet Bulk)
    (Cut to 2.50 Inch Length)
    TUBING, (20.00 Feet Bulk)
    (Cut to 2.50 Inch Length)
  • 44
    35-8M0042285 FILTER
    FILTER
  • 45
    14687A4 PUMP ASSEMBLY, Accelerator (REPAIR KIT 1395-811287)
    PUMP ASSEMBLY, Accelerator (REPAIR KIT 1395-811287)
  • 46
    10-4009416 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 47
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 48
    89-819503A1 SOLENOID ASSEMBLY, Enrichner Valve
    SOLENOID ASSEMBLY, Enrichner Valve
  • 49
    32-9912688 TUBING, (36.00 Inches Bulk)
    (Cut to 11.50 Inch Length)
    TUBING, (36.00 Inches Bulk)
    (Cut to 11.50 Inch Length)
  • 50
    32-9912688 TUBING, (36.00 Inches Bulk)
    (Cut to 5.25 Inch Length)
    TUBING, (36.00 Inches Bulk)
    (Cut to 5.25 Inch Length)
  • -
    27-13461A99 GASKET SET
    GASKET SET
  • -
    17791R97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
