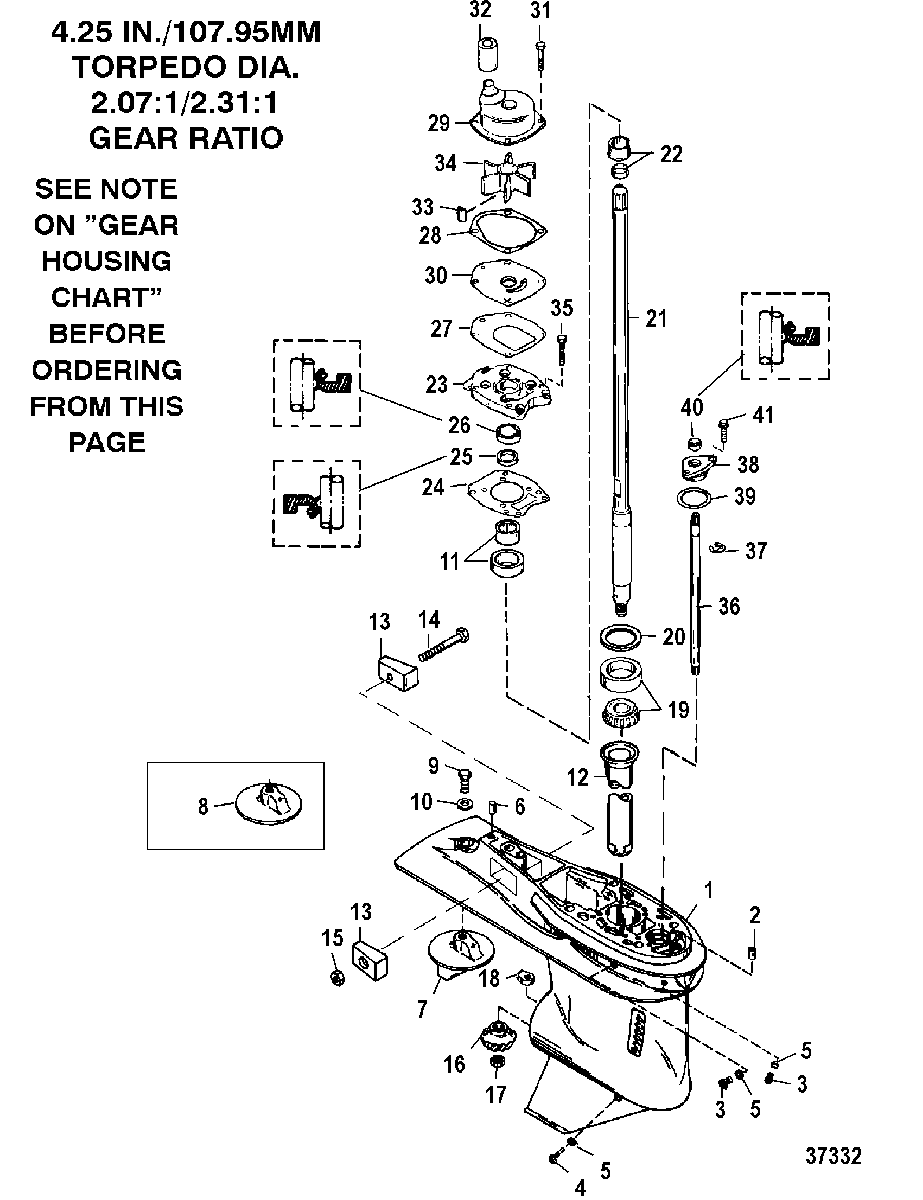

GEAR HOUSING(DRIVESHAFT)(3 JAW REVERSE CLUTCH) для Mariner - 100 (4 CYL.) 0D283222 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Basic
    (BLACK)
    GEAR HOUSING ASSEMBLY, Basic
    (BLACK)
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Basic
    (GRAY)
    GEAR HOUSING ASSEMBLY, Basic
    (GRAY)
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Basic
    (TRACKER-GRAPHITE GRAY)
    GEAR HOUSING ASSEMBLY, Basic
    (TRACKER-GRAPHITE GRAY)
  • 2
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625) (FRONT) (QTY. OF 2 ON X-LONG)
    PIN, Dowel - With Hole (.375 x .625) (FRONT) (QTY. OF 2 ON X-LONG)
  • 3
    10-79953Q04 SCREW KIT, (.375-16 x .250)
    SCREW KIT, (.375-16 x .250)
  • 4
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 5
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 6
    17-43044 PIN, Dowel - Without Hole (.375 x .625) (REAR)
    PIN, Dowel - Without Hole (.375 x .625) (REAR)
  • 7
    97-31640Q4 TRIM TAB
    (USE W/GH W/O ANODES)
    TRIM TAB
    (USE W/GH W/O ANODES)
  • 8
    31640T07 TRIM TAB
    (USE W/GH WITH ANODES)
    TRIM TAB
    (USE W/GH WITH ANODES)
  • 9
    10-825427 SCREW, (.437-14 x 1.250) Stainless Steel
    SCREW, (.437-14 x 1.250) Stainless Steel
  • 10
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 11
    43040T1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 12
    43046 TUBE, Oiler
    TUBE, Oiler
  • 13
    97-826134Q ANODE
    DESIGN II
    ANODE
    DESIGN II
  • 14
    10-4000333 SCREW, (M6 x 40)
    DESIGN II
    SCREW, (M6 x 40)
    DESIGN II
  • 15
    11-401386 NUT, (M6)
    DESIGN II
    NUT, (M6)
    DESIGN II
  • 16
    43-881259A1 GEAR ASSEMBLY, Pinion
    (2.07:1 GEAR RATIO - 14 TEETH)
    GEAR ASSEMBLY, Pinion
    (2.07:1 GEAR RATIO - 14 TEETH)
  • 16
    43-44484T GEAR, Pinion (13 Teeth)
    (HIGH ALTITUDE) (2.31:1 GEAR RATIO - 13 TEETH)
    GEAR, Pinion (13 Teeth)
    (HIGH ALTITUDE) (2.31:1 GEAR RATIO - 13 TEETH)
  • 17
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 18
    760394 CAM, Shift Control
    CAM, Shift Control
  • 19
    31-42677A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 20
    15-8M0063265 SHIM SET
    SHIM SET
  • 21
    45-43031A1 DRIVESHAFT ASSEMBLY
    (LONG)
    DRIVESHAFT ASSEMBLY
    (LONG)
  • 21
    45-43032A4 DRIVESHAFT ASSEMBLY
    (X-LONG)
    DRIVESHAFT ASSEMBLY
    (X-LONG)
  • 22
    42461A1 SLEEVE/RING KIT
    SLEEVE/RING KIT
  • 23
    46-8M0113262 COVER ASSEMBLY, Water Pump
    COVER ASSEMBLY, Water Pump
  • 24
    27-430472 GASKET
    GASKET
  • 25
    26-43036 SEAL, Oil (LOWER)
    SEAL, Oil (LOWER)
  • 26
    26-43035 SEAL, Oil (UPPER)
    SEAL, Oil (UPPER)
  • 27
    27-430331 GASKET
    GASKET
  • 28
    27-8172771 GASKET
    GASKET
  • 29
    817275A2 HOUSING KIT, Upper Water Pump
    HOUSING KIT, Upper Water Pump
  • 30
    8172761 FACEPLATE
    FACEPLATE
  • 31
    10-8248327 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 32
    430232 SEAL
    SEAL
  • 33
    28-8M0032833 KEY
    KEY
  • 34
    47-43026T2 IMPELLER
    IMPELLER
  • 35
    10-8248326 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 36
    43048A1 SHIFT SHAFT ASSEMBLY
    (LONG)
    SHIFT SHAFT ASSEMBLY
    (LONG)
  • 36
    43049A1 SHIFT SHAFT ASSEMBLY
    (X-LONG)
    SHIFT SHAFT ASSEMBLY
    (X-LONG)
  • 37
    53-29641 E RING
    E RING
  • 38
    23-43052A4 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 39
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 40
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 41
    10-8248326 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • -
    26-43035A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    46-8M0113799 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    27-13461A99 GASKET SET
    GASKET SET
