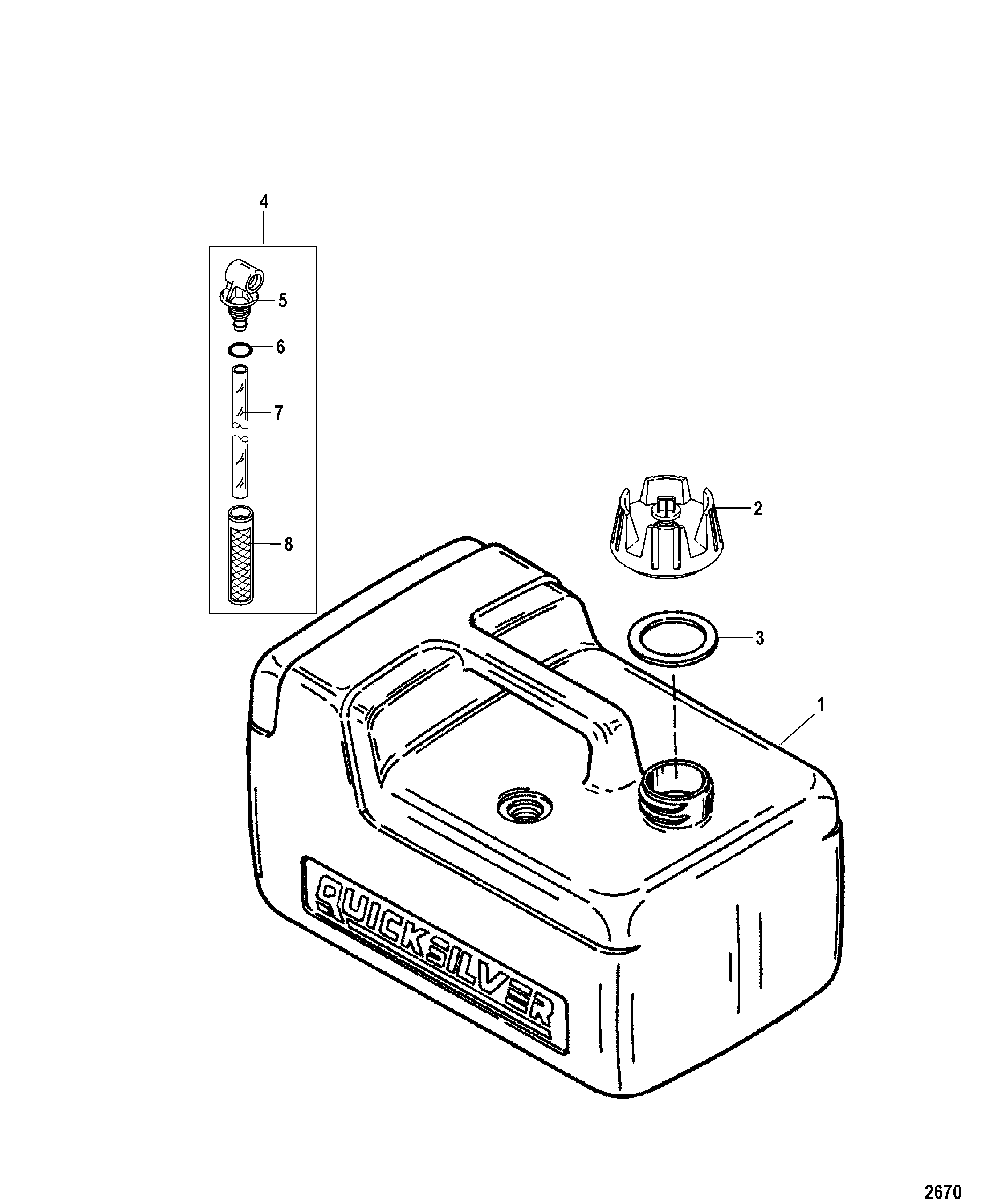

Fuel Tank Assembly(3.2 Gallon) для Mariner - 10 VIKING 0P017000 THRU 0P325499
-
№АртикулНазвание
-
11260-859060A2 TANK ASSEMBLY, Fuel, FuelTANK ASSEMBLY, Fuel, Fuel
-
236-816976Q1 CAP ASSEMBLY, Fuel, FuelCAP ASSEMBLY, Fuel, Fuel
-
327-8169771 GASKET, Fuel Cap, Fuel CapGASKET, Fuel Cap, Fuel Cap
-
422-823531A1 CONNECTOR KIT, Fuel, FuelCONNECTOR KIT, Fuel, Fuel
-
5NSS NOT SOLD SEPARATE (Connector)NOT SOLD SEPARATE (Connector)
-
625-823533 O-RINGO-RING
-
7NSS NOT SOLD SEPARATE (Tube)NOT SOLD SEPARATE (Tube)
-
835-823534 SCREEN, Fuel FilterSCREEN, Fuel Filter
