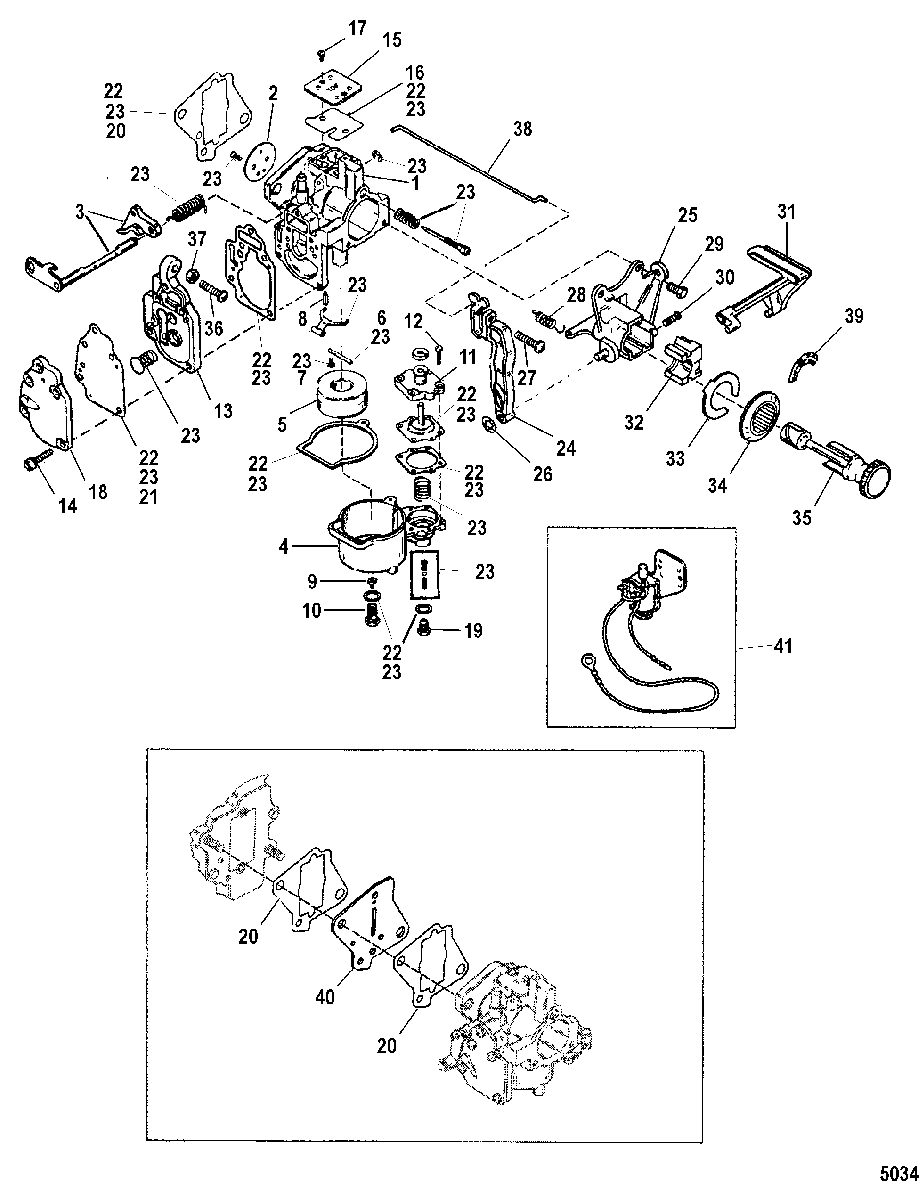

Carburetor(10/XR/Magnum 10/Viking) для Mariner - 10 MAGNUM 0G760300 THRU 0T979999
-
№АртикулНазвание
-
11392-827005T08 CARBURETOR, (WMC-62) (10/10 Sailpower/XR/Magnum)CARBURETOR, (WMC-62) (10/10 Sailpower/XR/Magnum)
-
11392-827005T08 CARBURETOR, (WMC-81) (10/10 Sailpower/XR/Magnum)CARBURETOR, (WMC-81) (10/10 Sailpower/XR/Magnum)
-
11392-9726T18 CARBURETOR (WMC-63-Viking)CARBURETOR (WMC-63-Viking)
-
11392-9726T18 CARBURETOR, (WMC-77) (Viking)CARBURETOR, (WMC-77) (Viking)
-
11392-9726T18 CARBURETOR, (WMC-83) (Viking)CARBURETOR, (WMC-83) (Viking)
-
2815133 VALVE, Throttle
(WMC-48A/62/81)VALVE, Throttle
(WMC-48A/62/81) -
21395-823716 VALVE, Throttle
(WMC-49A/63/77/83)VALVE, Throttle
(WMC-49A/63/77/83) -
3813022 SHAFT, Throttle (Includes Srew and Spring)
(WMC-48A/62/81)SHAFT, Throttle (Includes Srew and Spring)
(WMC-48A/62/81) -
319267 SHAFT, Throttle (Includes Srew and Spring)
(WMC-49A/63/77/83)SHAFT, Throttle (Includes Srew and Spring)
(WMC-49A/63/77/83) -
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
6F10064 SHAFTSHAFT
-
71395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
81395-803861 VALVE, Inlet NeedleVALVE, Inlet Needle
-
91395-6359 JET, (.052)
(WMC-48A/62/81)JET, (.052)
(WMC-48A/62/81) -
91395-6207 JET, (.072)
(WMC-49A/63/77/83)JET, (.072)
(WMC-49A/63/77/83) -
101395-9171 PLUGPLUG
-
111395-823648 COVER, DiaphragmCOVER, Diaphragm
-
121395-9697 SCREWSCREW
-
131395-9702 BODYBODY
-
141395-9643 SCREWSCREW
-
151395-9699 PLATEPLATE
-
1627-44426 GASKETGASKET
-
171395-9696 SCREWSCREW
-
181395-9637 COVERCOVER
-
191395-9762 PLUGPLUG
-
2027-192061 GASKET, CarburetorGASKET, Carburetor
-
211395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
221395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
231395-8237072 REPAIR KITREPAIR KIT
-
24128053 LEVER, Fast IdleLEVER, Fast Idle
-
2512803 BRACKET, PrimerBRACKET, Primer
-
2611-821979 NUTNUT
-
2710-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
2824-11277 SPRING, TensionSPRING, Tension
-
2910-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
3010-79965 SCREW, (#8-32 x .500) Stainless SteelSCREW, (#8-32 x .500) Stainless Steel
-
31112731 LEVER, PrimerLEVER, Primer
-
3211280 CAM BLOCKCAM BLOCK
-
3353-11278 CLIP, RetainingCLIP, Retaining
-
3412804A1 BEZEL ASSEMBLY, ChokeBEZEL ASSEMBLY, Choke
-
35128022 PRIMER KNOBPRIMER KNOB
-
3610-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
3711-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
38445541 IDLE WIREIDLE WIRE
-
3937-129701 DECAL (Slow/Fast)DECAL (Slow/Fast)
-
40125681 RESTRICTOR PLATE
(Viking)RESTRICTOR PLATE
(Viking) -
411395-823433 CHOKE, ElectricCHOKE, Electric
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-19072T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
