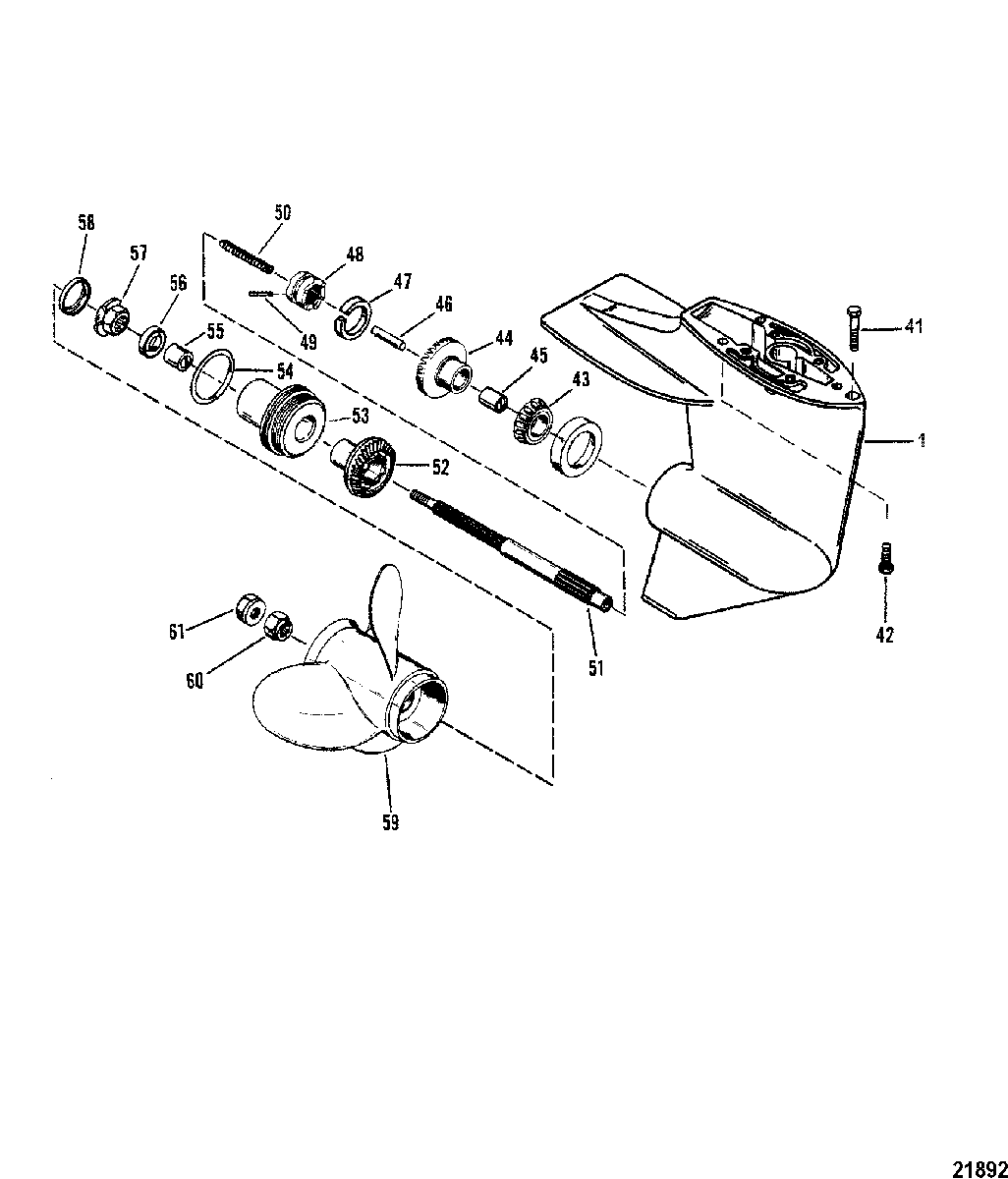

Gear Hsg(Propshaft)(Design I-Refer to Driveshaft Drawing) для Mariner - 10 MAGNUM 0D038000 THRU 0D279999
-
№АртикулНазвание
-
-1666-8833T13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT)- BLACKGEAR HOUSING ASSEMBLY, COMPLETE (SHORT)- BLACK
-
-1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) BLACKGEAR HOUSING ASSEMBLY, COMPLETE (LONG) BLACK
-
-1666-8833T14 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT)- GRAYGEAR HOUSING ASSEMBLY, COMPLETE (SHORT)- GRAY
-
-1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) GRAYGEAR HOUSING ASSEMBLY, COMPLETE (LONG) GRAY
-
11666-8833A1 GEAR HOUSING ASSEMBLY
(Black)GEAR HOUSING ASSEMBLY
(Black) -
11666-8833A4 GEAR HOUSING ASSEMBLY
(Gray)GEAR HOUSING ASSEMBLY
(Gray) -
4110-82407110 SCREWSCREW
-
4210-8240717 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
4331-821321A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
4443-41371A1 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
4523-41367 BUSHINGBUSHING
-
46813139 FOLLOWER, CamFOLLOWER, Cam
-
4753-32449 RING, RetainingRING, Retaining
-
4852-43217 CLUTCHCLUTCH
-
4917-30535 PIN, CrossPIN, Cross
-
5024-42204 SPRINGSPRING
-
5144-41370 PROPELLER SHAFTPROPELLER SHAFT
-
5243-44115T GEAR, ReverseGEAR, Reverse
-
5342144T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5425-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
5523-41368 BUSHINGBUSHING
-
5626-66022 SEAL, OilSEAL, Oil
-
5742037 THRUST HUBTHRUST HUB
-
5842201 CAPCAP
-
5948-828156A12 PROPELLER (9X9)PROPELLER (9X9)
-
5948-828152A12 PROPELLER (9-1/4X7)PROPELLER (9-1/4X7)
-
6023-420911 SPACERSPACER
-
6111-40140 NUT, (M10)NUT, (M10)
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-26-41365A3 SEAL KITSEAL KIT
