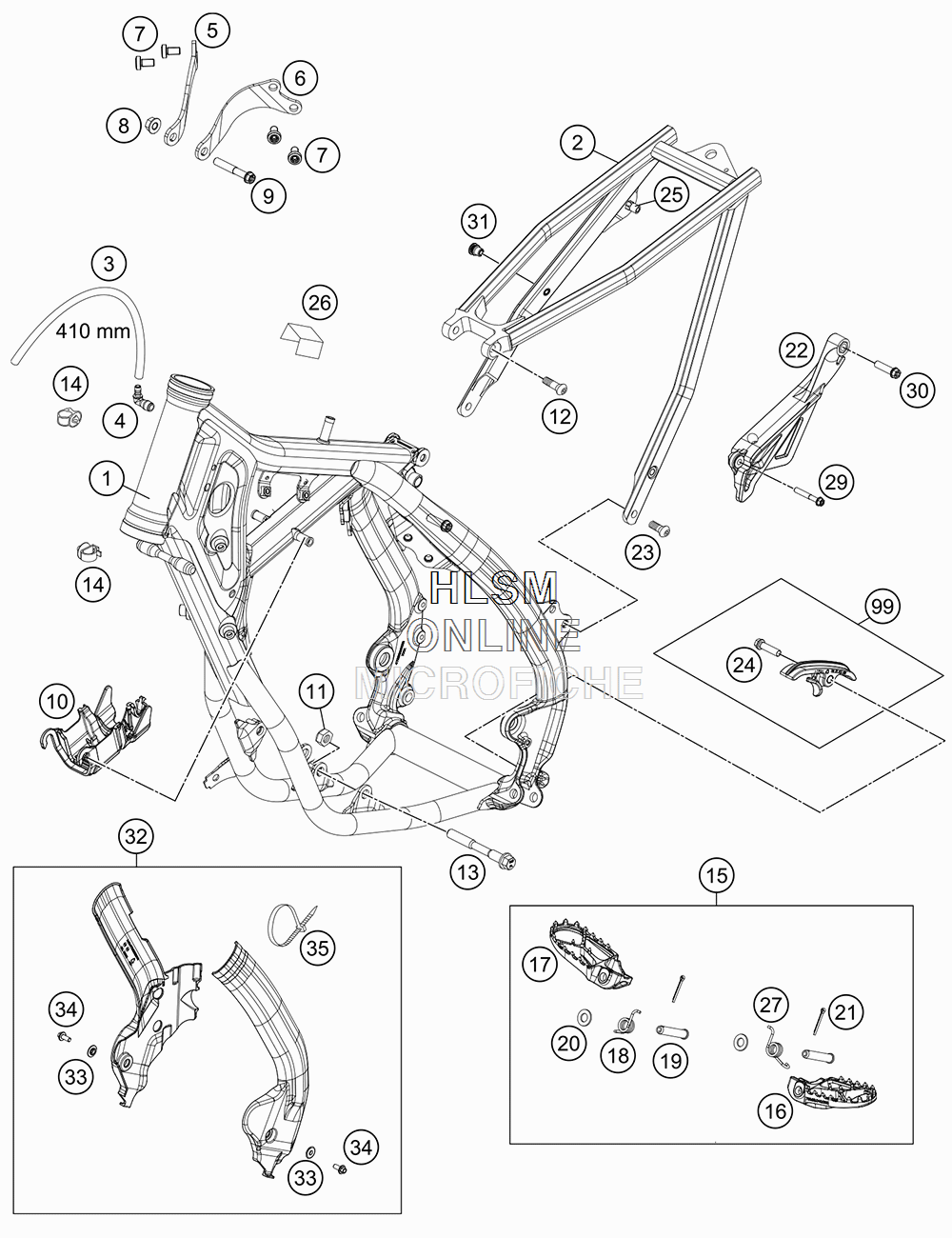

FRAME для Ktm 85SX 1714 - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    47203001000EB FRAME "472R3" ELEC. ORANGE
    FRAME "472R3" ELEC. ORANGE
  • 2
    47203002000 SUBFRAME
    SUBFRAME
  • 3
    50335030001 PVC-HOSE 6X9
    PVC-HOSE 6X9
  • 4
    51030022000 ANGLE PIECE 90 DEGREE M10X1
    ANGLE PIECE 90 DEGREE M10X1
  • 5
    47203014000 MOTORSTREBE RECHTS
    MOTORSTREBE RECHTS
  • 6
    47203013000 MOTORBRACKET LEFT
    MOTORBRACKET LEFT
  • 7
    0035080156S AH-COLLAR SCREW M8X15 TORX45
    AH-COLLAR SCREW M8X15 TORX45
  • 8
    54310086200 SELF LOCKING NUT M8
    SELF LOCKING NUT M8
  • 9
    0025080506 HH COLLAR SCREW M8X50
    HH COLLAR SCREW M8X50
  • 10
    47211095000 CABLE COMPARTMENT
    CABLE COMPARTMENT
  • 11
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 12
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 13
    47003013000 ENGINE BRACKET SCREW 85 SX
    ENGINE BRACKET SCREW 85 SX
  • 14
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 15
    79003040033 FOOT PEGS SET CPL. 2016
    FOOT PEGS SET CPL. 2016
  • 16
    79003040000 FOOTREST L/S
    FOOTREST L/S
  • 17
    79003041000 FOOTREST R/S
    FOOTREST R/S
  • 18
    79003044000 FOOTREST SPRING R/S
    FOOTREST SPRING R/S
  • 19
    54803044000 PIN FOR FOOT PED 51.5X9.8 MM
    PIN FOR FOOT PED 51.5X9.8 MM
  • 20
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 21
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 22
    47203096000 SPROCKET COVER 85
    SPROCKET COVER 85
  • 23
    79003003000 SPECIAL SCREW M8X18 TORX45 SS
    SPECIAL SCREW M8X18 TORX45 SS
  • 24
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 25
    77303139000 BLIND RIVET NUT EM6-60LF/HX
    BLIND RIVET NUT EM6-60LF/HX
  • 26
    50307012000 ADH. FOIL TRANSP. 80X80 MM 04
    ADH. FOIL TRANSP. 80X80 MM 04
  • 27
    79003045000 FOOTREST SPRING L/S
    FOOTREST SPRING L/S
  • 29
    0025060406 HH COLLAR SCREW M6X40
    HH COLLAR SCREW M6X40
  • 30
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 31
    79003002080 BLIND RIVET NUT M6 KNURLED
    BLIND RIVET NUT M6 KNURLED
  • 32
    47203094000EB FRAME PROTECTOR SET
    FRAME PROTECTOR SET
  • 33
    54803092060 BUSH F. FRAME PROTECTION
    BUSH F. FRAME PROTECTION
  • 34
    0014050123 HH COLLAR SCREW M 5X12
    HH COLLAR SCREW M 5X12
  • 35
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 99
    79003053010 CHAIN SLIDING KIT BELOW CPL.16
    CHAIN SLIDING KIT BELOW CPL.16
