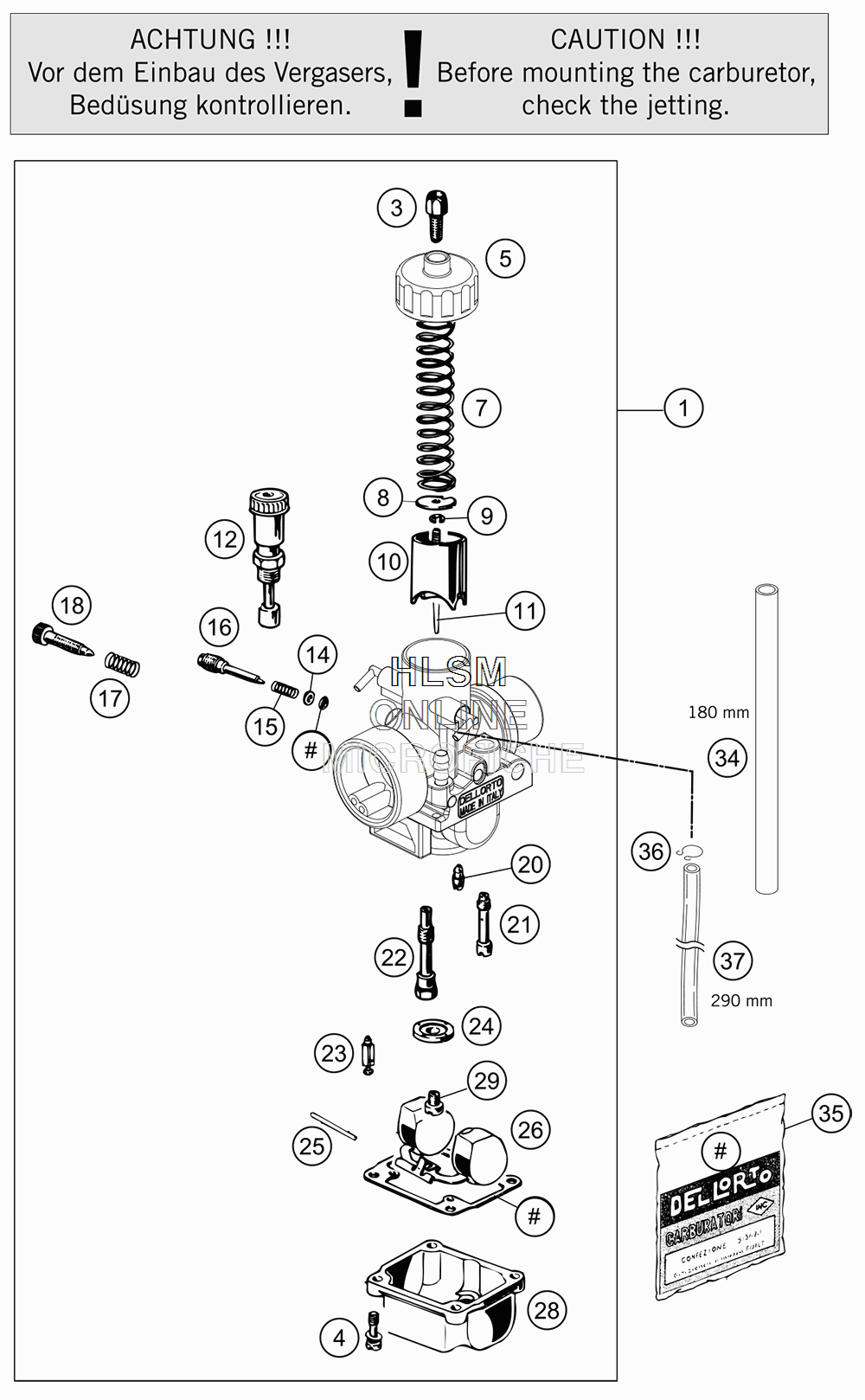

CARBURETOR для Ktm 50 SX - 2019 года выпуска`
-
№АртикулНазвание
-
145231101000 CARBURETOR PHBG 19 BSCARBURETOR PHBG 19 BS
-
357031525000 ADJUSTMENT SCREW M6X0,75ADJUSTMENT SCREW M6X0,75
-
40016040163 HH COLLAR SCREW M 4X16 WS=6HH COLLAR SCREW M 4X16 WS=6
-
545131027000 CARBURETOR COVER DELLORTO 19CARBURETOR COVER DELLORTO 19
-
745131030000 SPRING DELLORTOSPRING DELLORTO
-
845131109000 RETAINING SPRING DELLORTORETAINING SPRING DELLORTO
-
90799025055 TAB WASHER DIN6799-RS 2,5TAB WASHER DIN6799-RS 2,5
-
1045131035000 THR. VALVE DELLO.19 60THR. VALVE DELLO.19 60
-
1045131035040 THR. VALVE DELLO.40THR. VALVE DELLO.40
-
1145131034007 JET NEEDLE W7JET NEEDLE W7
-
1145131034009 JET NEEDLE W9JET NEEDLE W9
-
1245131048000 STARTING BUTTON DELLORTO 19STARTING BUTTON DELLORTO 19
-
1457031572000 WASHER 3,3 X 5,8 X 0,5WASHER 3,3 X 5,8 X 0,5
-
1545131015000 SPRING DELLORTOSPRING DELLORTO
-
1645131017000 AIR ADJUST SCREW DELLORTOAIR ADJUST SCREW DELLORTO
-
1745131518000 SPRINGSPRING
-
1845131019000 IDLE ADJUST SCREWIDLE ADJUST SCREW
-
2045131007045 IDLING JET 45 DELLORTOIDLING JET 45 DELLORTO
-
2045131007048 IDLING JET 48 DELLORTOIDLING JET 48 DELLORTO
-
2045131007050 IDLING JET 50 DELLORTOIDLING JET 50 DELLORTO
-
2045131007052 IDLING JET 52 DELLORTOIDLING JET 52 DELLORTO
-
2045131007055 IDLING JET 55 DELLORTOIDLING JET 55 DELLORTO
-
2045131007058 IDLING JET 58 DELLORTOIDLING JET 58 DELLORTO
-
2145131051060 START JET 60 DELLORTOSTART JET 60 DELLORTO
-
2245131021260 NEEDLE JET 260NEEDLE JET 260
-
2245131021262 NEEDLE JET 262NEEDLE JET 262
-
2345131020000 FLOATING NEEDLE VALVE DELLORTOFLOATING NEEDLE VALVE DELLORTO
-
2445131074000 COVER DELLORTOCOVER DELLORTO
-
2545131008000 PIN DELLORTOPIN DELLORTO
-
2645131009000 FLOAT 4 GR.FLOAT 4 GR.
-
2845131011000 FLOAT BOWL DELLORTO 19FLOAT BOWL DELLORTO 19
-
2915131123080 MAIN JET 80 DELLORTOMAIN JET 80 DELLORTO
-
2915131123085 MAIN JET 85 DELLORTOMAIN JET 85 DELLORTO
-
2915131123090 MAIN JET 90 DELLORTOMAIN JET 90 DELLORTO
-
2915131123095 MAIN JET 95 DELLORTOMAIN JET 95 DELLORTO
-
3458307016001 FUEL HOSE VITON 6X1,5 PER/MFUEL HOSE VITON 6X1,5 PER/M
-
3545131099000 GASKET SET DELLORTO 19GASKET SET DELLORTO 19
-
3654531696000 CLAMP 6 MMCLAMP 6 MM
-
3731007007101 PVC-HOSE 4X6MMPVC-HOSE 4X6MM
