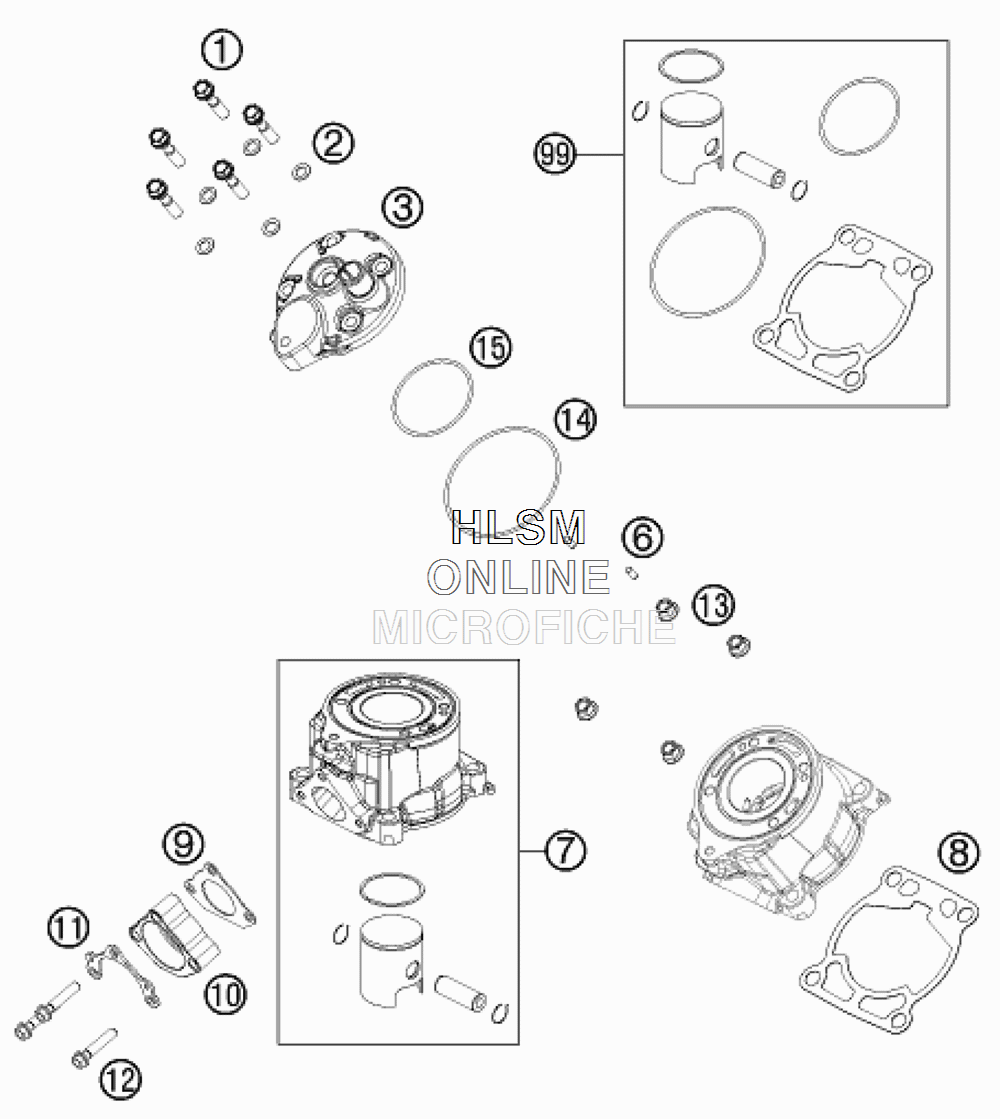

CYLINDER- CYLINDER HEAD для Ktm 50 SX MINI - 2019 года выпуска`
-
№АртикулНазвание
-
150430079000 CYLINDER HEAD SCREWCYLINDER HEAD SCREW
-
20603070121 CU-SEAL RING DIN7603- 7,3X12X1CU-SEAL RING DIN7603- 7,3X12X1
-
345230006000 CYLINDER HEADCYLINDER HEAD
-
60402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
745230038000 CYLINDER + PISTONCYLINDER + PISTON
-
846230035060 CYLINDER BASE GASKET 0,6MMCYLINDER BASE GASKET 0,6MM
-
846230035050 CYLINDER BASE GASKET 0,5 MMCYLINDER BASE GASKET 0,5 MM
-
846230035040 CYLINDER BASE GASKET 0,4 MMCYLINDER BASE GASKET 0,4 MM
-
846230035020 CYLINDER BASE GASKET 0,2 MMCYLINDER BASE GASKET 0,2 MM
-
945205004000 EXHAUST FLANGE GASKETEXHAUST FLANGE GASKET
-
1045205003000 EXHAUST FLANGEEXHAUST FLANGE
-
1146205003050 BRACKET FOR SPRINGHOLDERBRACKET FOR SPRINGHOLDER
-
120025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
1346030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
140770078020 O-RING 78,00X2,00 VIT. BLACKO-RING 78,00X2,00 VIT. BLACK
-
150770052020 O-RING 52,00X2,0 VITON 75O-RING 52,00X2,0 VITON 75
-
9900050000208 PISTON KIT GR.IPISTON KIT GR.I
-
9900050000209 PISTON KIT GR.IIPISTON KIT GR.II
