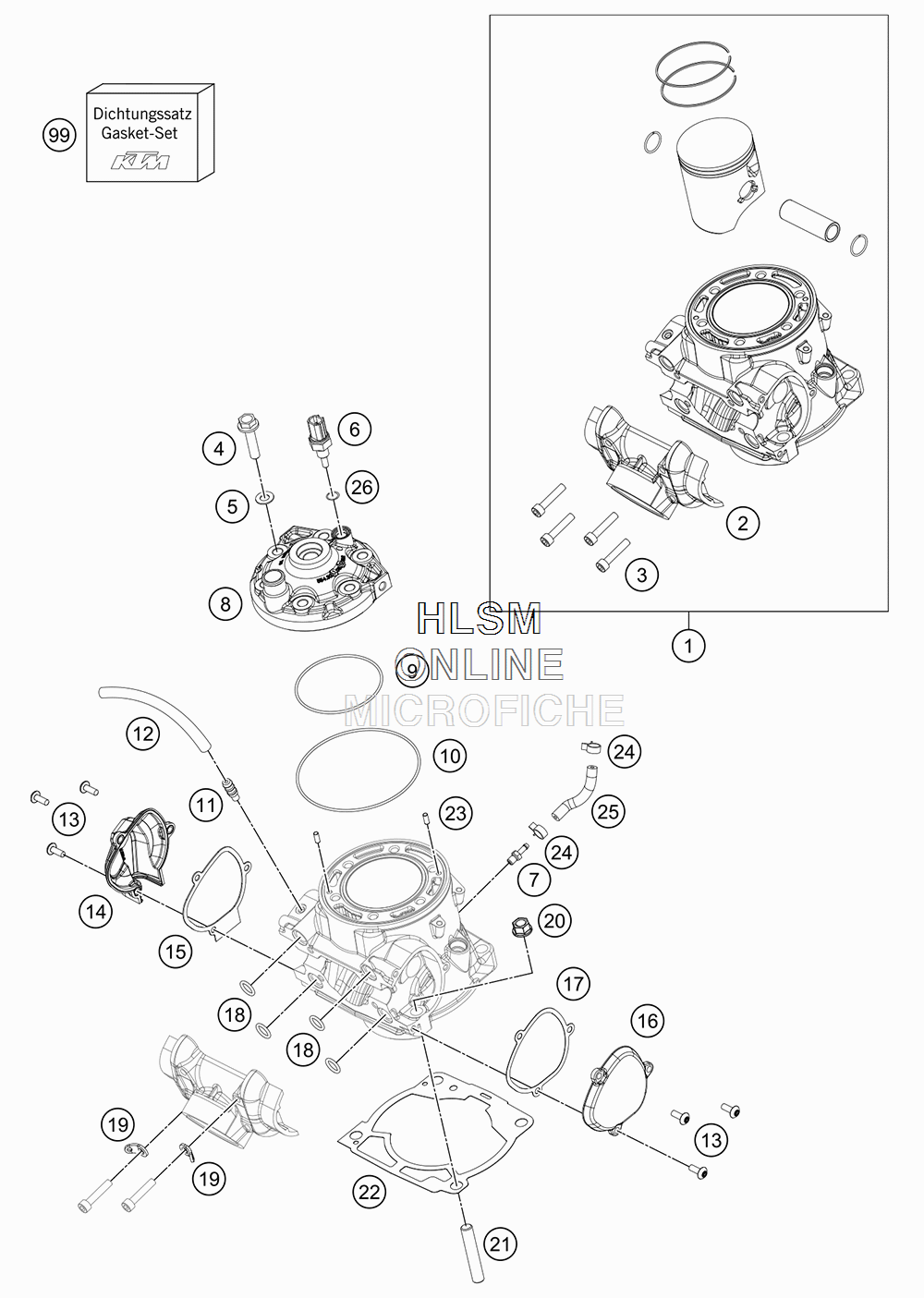

CYLINDER- CYLINDER HEAD для Ktm 250 XCW-TPI - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    55430038100 CYLINDER + PISTON CPL. 18
    CYLINDER + PISTON CPL. 18
  • 2
    55437001000 CONNECTION FLANGE
    CONNECTION FLANGE
  • 3
    0912060353 AH SCREW DIN0912-M 6X35
    AH SCREW DIN0912-M 6X35
  • 4
    54830079000 COLLAR SCREW M 8X35
    COLLAR SCREW M 8X35
  • 5
    56530080000 CU-SEAL RING 8 X 16 X 1
    CU-SEAL RING 8 X 16 X 1
  • 6
    79435047000 TEMPERATUR SENSOR WATER
    TEMPERATUR SENSOR WATER
  • 7
    55430023000 VACUUM CONNECTION
    VACUUM CONNECTION
  • 8
    55430106100 CYLINDER HEAD KTM 250 EXC
    CYLINDER HEAD KTM 250 EXC
  • 9
    0770730020 O-RING 73,00X2,00 VITON
    O-RING 73,00X2,00 VITON
  • 10
    0770105020 O-RING 105,00X2,00
    O-RING 105,00X2,00
  • 11
    58336020090 VACUUM CONNECTION M 6X1
    VACUUM CONNECTION M 6X1
  • 12
    78015019001 HOSE EPA D=6/10 PER METER
    HOSE EPA D=6/10 PER METER
  • 13
    58605083014 SCREW M5X14 TORX 25
    SCREW M5X14 TORX 25
  • 14
    5483700710015 EXHAUST CONTROL COVER RH
    EXHAUST CONTROL COVER RH
  • 15
    54837008000 GASKET FOR CONTROL COVER R/S
    GASKET FOR CONTROL COVER R/S
  • 16
    5483700500015 CONTROL COVER L/S
    CONTROL COVER L/S
  • 17
    54837006000 GASKET FOR CONTROL COVER L/S
    GASKET FOR CONTROL COVER L/S
  • 18
    0770116241 O-RING 11,3 X2,4 SILICON
    O-RING 11,3 X2,4 SILICON
  • 19
    51005074000 RETAINING PLATE
    RETAINING PLATE
  • 20
    54630044000 COLLAR NUT M10
    COLLAR NUT M10
  • 21
    0835100351S STUD SCREW DIN0835-M10X35
    STUD SCREW DIN0835-M10X35
  • 22
    55430030025 CYLINDER BASE GASKET
    CYLINDER BASE GASKET
  • 22
    55430030020 CYLINDER BASE GASKET
    CYLINDER BASE GASKET
  • 22
    55430030040 CYLINDER BASE GASKET
    CYLINDER BASE GASKET
  • 22
    55430030050 CYLINDER BASE GASKET
    CYLINDER BASE GASKET
  • 22
    55430030075 CYLINDER FOOT GASKET
    CYLINDER FOOT GASKET
  • 23
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 24
    59007017000 CLAMP YDNAC 10096F (9,6MM)
    CLAMP YDNAC 10096F (9,6MM)
  • 25
    61041095075 TUBE 3,2X9.0 L=75MM
    TUBE 3,2X9.0 L=75MM
  • 26
    0770100020 O-RING 10,00X2,00 SILCONE
    O-RING 10,00X2,00 SILCONE
  • 99
    55430097000 GASKET SET PISTON 250/300
    GASKET SET PISTON 250/300
