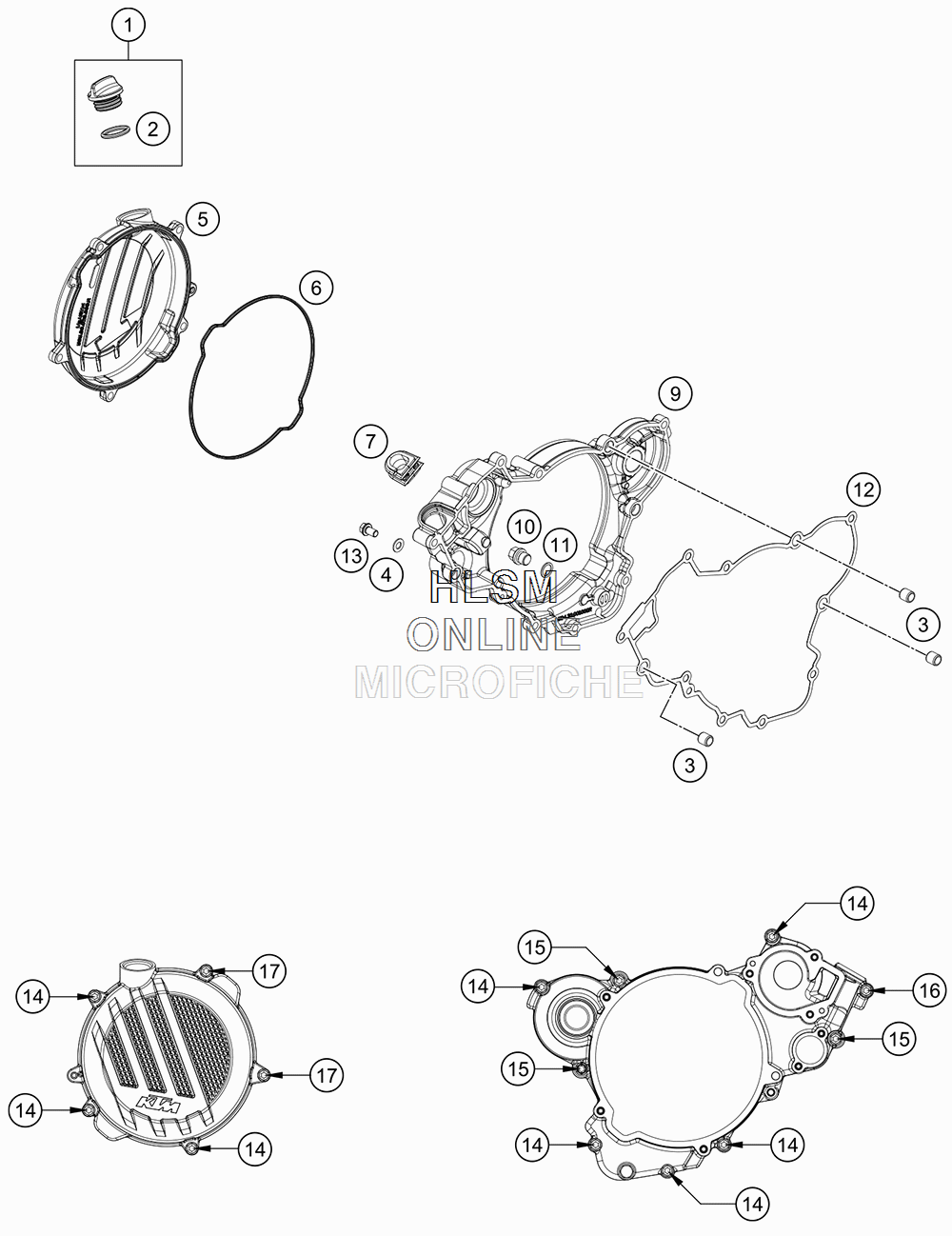

CLUTCH COVER для Ktm 150 SX - 2019 года выпуска`
-
№АртикулНазвание
-
179430020033 OIL FILLER CAP M24X3 WITH O-ROIL FILLER CAP M24X3 WITH O-R
-
20770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
349030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
40603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
55053002600015 OUTER CLUTCH COVEROUTER CLUTCH COVER
-
650430027000 GASKET OUTER CLUTCH COVERGASKET OUTER CLUTCH COVER
-
750437091100 SEALING ELEMENTSEALING ELEMENT
-
950430001044 INNER CLUTCH COVER CPL.INNER CLUTCH COVER CPL.
-
100910100003 PLUG DIN0910-M 10X1PLUG DIN0910-M 10X1
-
110603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
1250430025000 GASKET INNER CLUTCH COVERGASKET INNER CLUTCH COVER
-
130025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
140025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
150025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
160025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
170025060506 HH COLLAR SCREW M6X50HH COLLAR SCREW M6X50
