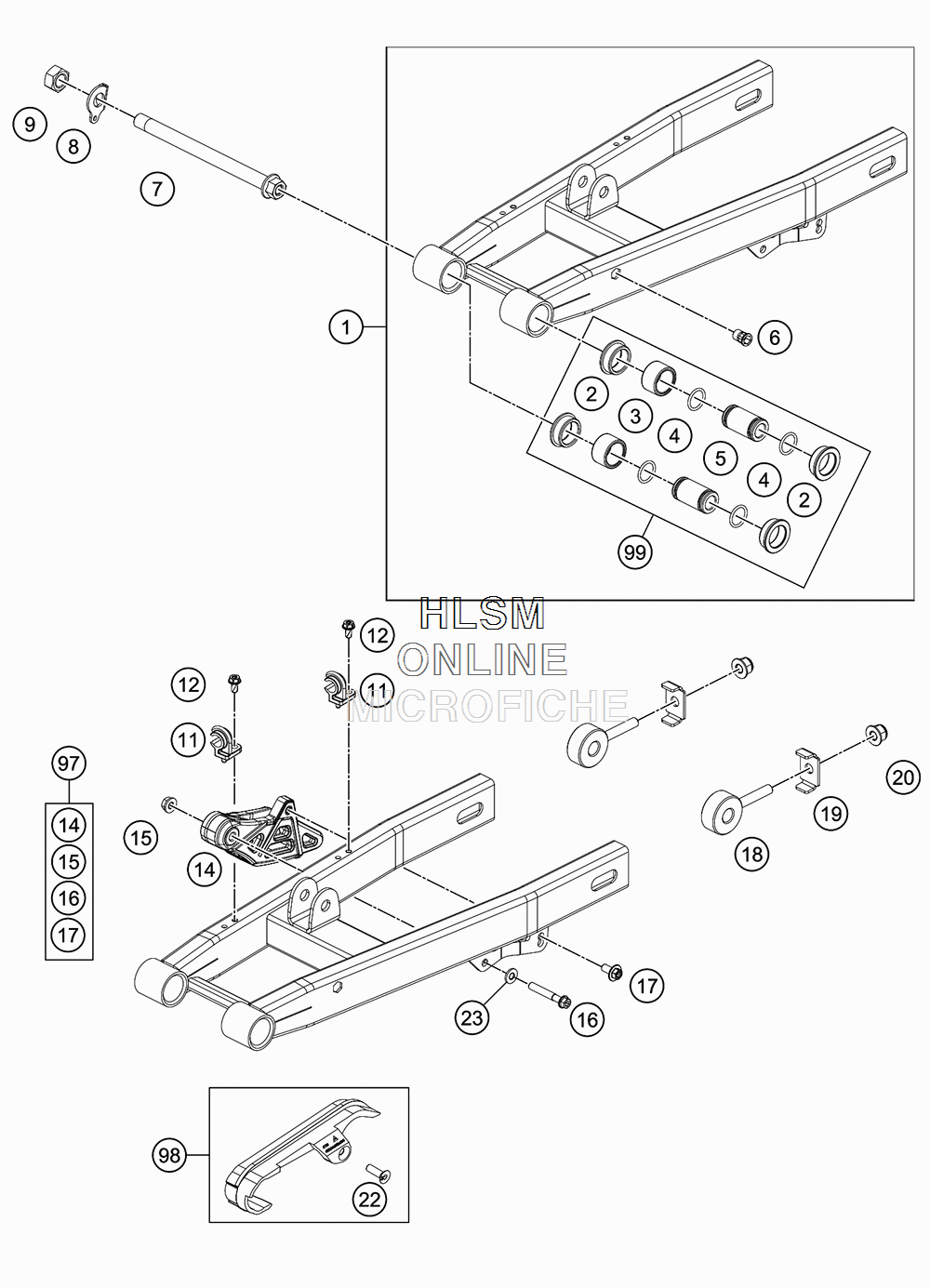

SWING ARM для Ktm 50 SX - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    4530403004491 SWING ARM CPL. 50 SX
    SWING ARM CPL. 50 SX
  • 2
    46004030070 SPACER BUSHING 20X26X30X9,7
    SPACER BUSHING 20X26X30X9,7
  • 3
    54603097000 NEEDLE BUSH HK 2016
    NEEDLE BUSH HK 2016
  • 4
    0770160021 O-RING 16,00X2,00 VITON
    O-RING 16,00X2,00 VITON
  • 5
    46004030071 BUSHING BOX 12X20X36,5
    BUSHING BOX 12X20X36,5
  • 6
    55003139900 BLIND RIVET THREAD M6 STE. 4MM
    BLIND RIVET THREAD M6 STE. 4MM
  • 7
    45103014144 SWING ARM BOLT CPL.
    SWING ARM BOLT CPL.
  • 8
    45213053000 LOCK WASHER
    LOCK WASHER
  • 9
    0934120103 HEXAGON NUT DIN0934-M12X1
    HEXAGON NUT DIN0934-M12X1
  • 11
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE
    RETAIN.CLAMP FOR BRAKE HOSE
  • 12
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 14
    46304070000 CHAIN GUIDE
    CHAIN GUIDE
  • 15
    56509064100 SELF LOCKING NUT M6
    SELF LOCKING NUT M6
  • 16
    0025060406 HH COLLAR SCREW M6X40
    HH COLLAR SCREW M6X40
  • 17
    0024060136 HH COLLAR SCREW M6X13
    HH COLLAR SCREW M6X13
  • 18
    45010083000 CHAIN ADJUSTER
    CHAIN ADJUSTER
  • 19
    45010083060 SUPPORTING BRACKET
    SUPPORTING BRACKET
  • 20
    0926080003 STOP NUT DIN6926 M8 SS
    STOP NUT DIN6926 M8 SS
  • 22
    0991060202 FLAT HEAD DIN7991-M 6X20
    FLAT HEAD DIN7991-M 6X20
  • 23
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 97
    46304070044 CHAIN GUIDE KIT MINI
    CHAIN GUIDE KIT MINI
  • 98
    45204066010 CHAIN GUARD KIT
    CHAIN GUARD KIT
  • 99
    45204230010 SWINGARM REP. KIT
    SWINGARM REP. KIT
