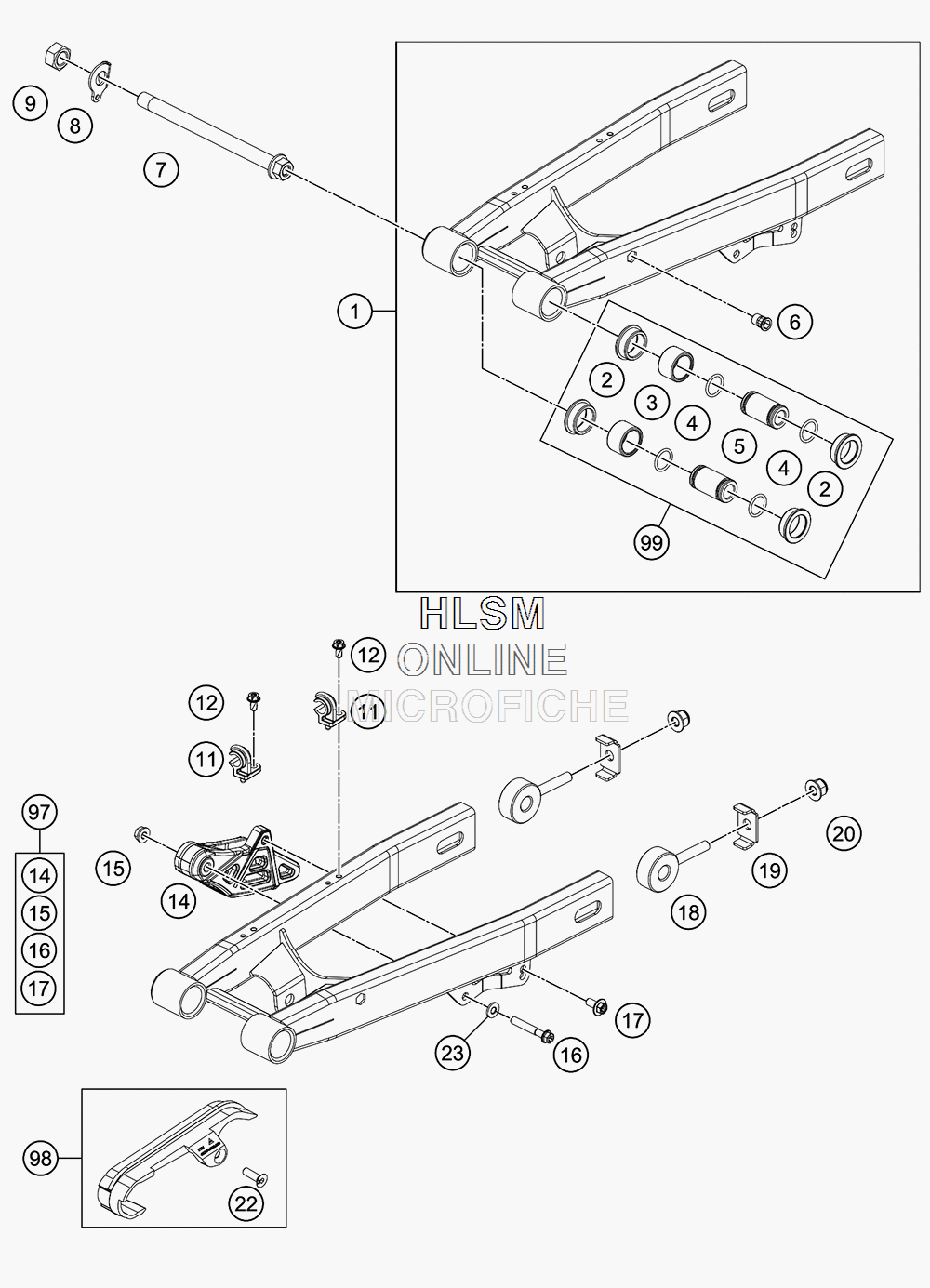

SWING ARM для Ktm 50 SX MINI - 2018 года выпуска`
-
№АртикулНазвание
-
14530403014491 SWING ARM CPL.SWING ARM CPL.
-
246004030070 SPACER BUSHING 20X26X30X9,7SPACER BUSHING 20X26X30X9,7
-
354603097000 NEEDLE BUSH HK 2016NEEDLE BUSH HK 2016
-
40770160021 O-RING 16,00X2,00 VITONO-RING 16,00X2,00 VITON
-
546004030071 BUSHING BOX 12X20X36,5BUSHING BOX 12X20X36,5
-
655003139900 BLIND RIVET THREAD M6 STE. 4MMBLIND RIVET THREAD M6 STE. 4MM
-
745103014144 SWING ARM BOLT CPL.SWING ARM BOLT CPL.
-
845213053000 LOCK WASHER 50 SXLOCK WASHER 50 SX
-
90934120103 HEXAGON NUT DIN0934-M12X1HEXAGON NUT DIN0934-M12X1
-
1154611076100 RETAIN.CLAMP FOR BRAKE HOSERETAIN.CLAMP FOR BRAKE HOSE
-
120009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
1446304070000 CHAIN GUIDECHAIN GUIDE
-
1556509064100 SELF LOCKING NUT M6SELF LOCKING NUT M6
-
160025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
170024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
-
1845010083000 CHAIN ADJUSTERCHAIN ADJUSTER
-
1945010083060 SUPPORTING BRACKETSUPPORTING BRACKET
-
200926080003 STOP NUT DIN6926 M8 SSSTOP NUT DIN6926 M8 SS
-
220991060202 FLAT HEAD DIN7991-M 6X20FLAT HEAD DIN7991-M 6X20
-
230125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
9746304070044 CHAIN GUIDE KITCHAIN GUIDE KIT
-
9845204066010 CHAIN GUARD KITCHAIN GUARD KIT
-
9945204230010 SWINGARM REP. KITSWINGARM REP. KIT
