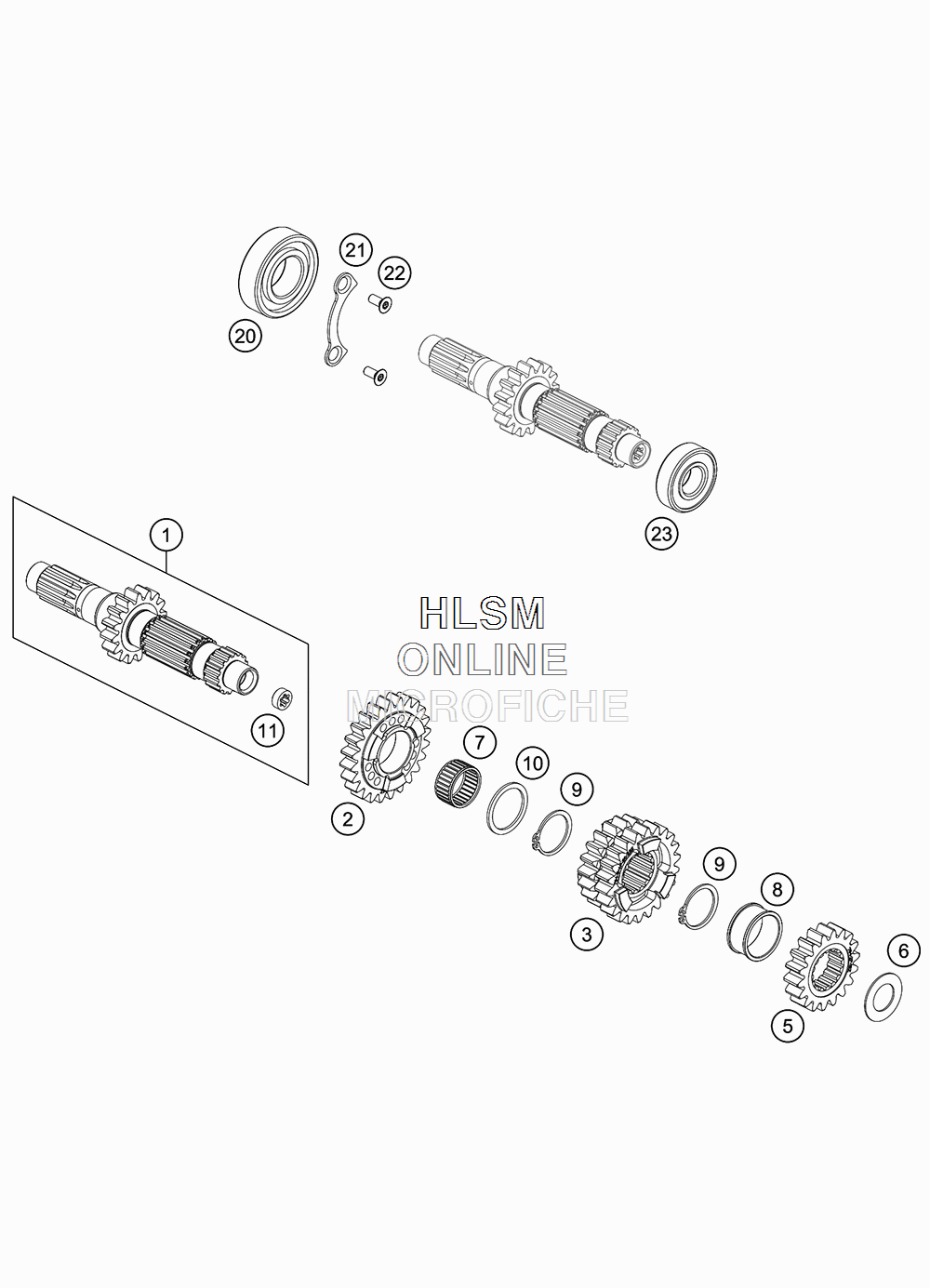

TRANSMISSION I - MAIN SHAFT для Ktm 450 SX-F - 2018 года выпуска`
-
№АртикулНазвание
-
179433001200 DRIVE SHAFTDRIVE SHAFT
-
279433005100 IDLER GEAR 5TH GEARIDLER GEAR 5TH GEAR
-
379433003100 SLIDING GEAR 3RD/4TH GEARSLIDING GEAR 3RD/4TH GEAR
-
579433002100 SOLID GEAR 2ND GSOLID GEAR 2ND G
-
656033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
70405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
879433032000 DISTANCE BUSHINGDISTANCE BUSHING
-
90471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
-
1078033031000 STOP DISK 26 X 32 X 1,5STOP DISK 26 X 32 X 1,5
-
1178033001110 BUSHINGBUSHING
-
200625062056 GROOVE BALL BEARING 6205 C4 NTNGROOVE BALL BEARING 6205 C4 NTN
-
2178033032000 TAB WASHER BEARING MAIN SHAFTTAB WASHER BEARING MAIN SHAFT
-
220019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
230625062036 BALL BEARING 6203 RSH C3BALL BEARING 6203 RSH C3
