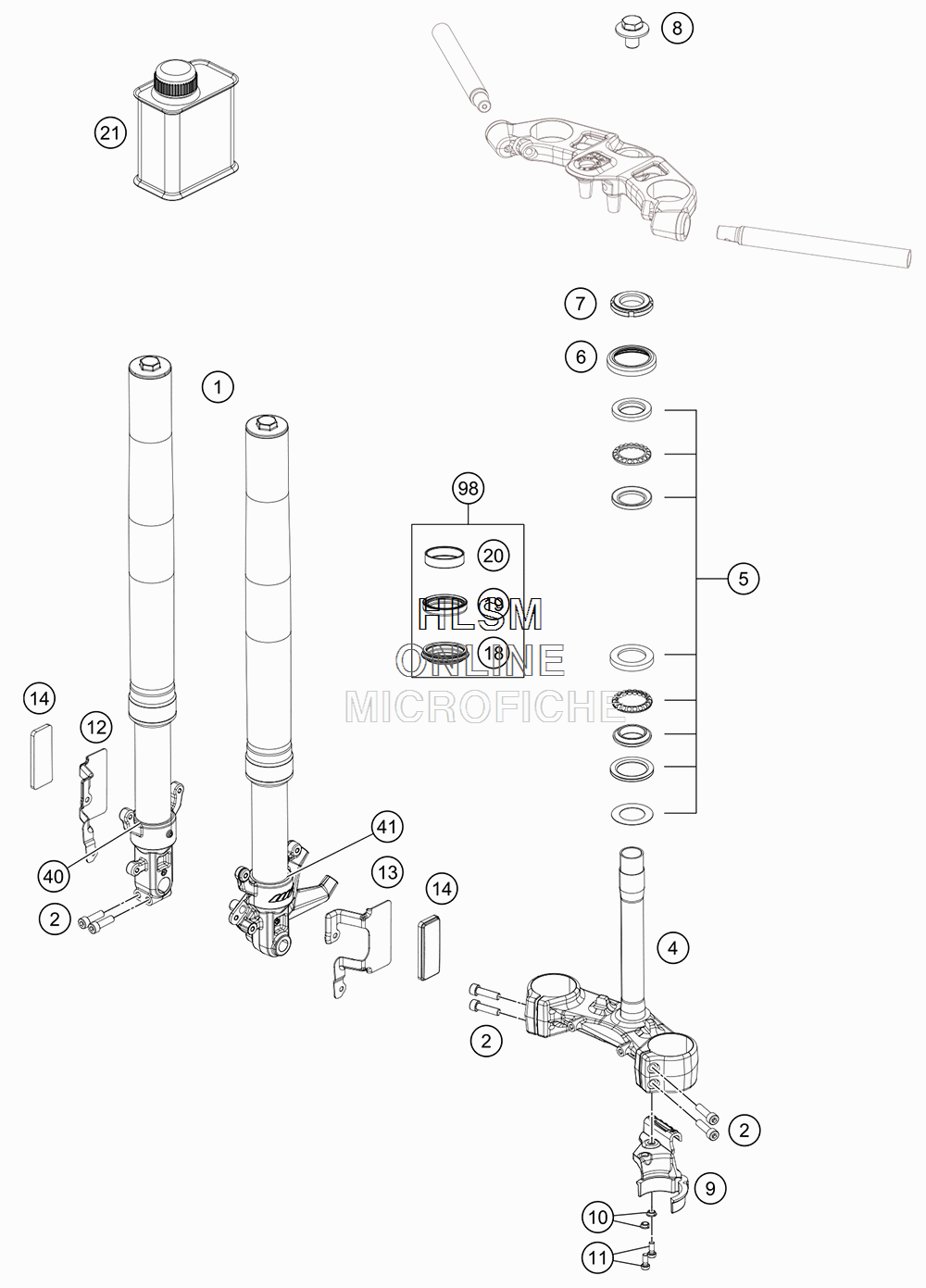

FRONT FROK- TRIPLE CLAMP для Ktm 390 RC - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    93501001100 LEG ASSEMBLY LH - NON HEAVY DUTY
    LEG ASSEMBLY LH - NON HEAVY DUTY
  • 1
    93501002100 LEG ASSEMBLY RIGHT - NON HEAVY DUTY
    LEG ASSEMBLY RIGHT - NON HEAVY DUTY
  • 2
    90501045000 AH SCREW M8X1.25X30
    AH SCREW M8X1.25X30
  • 4
    9010103210033 LOWER TRIPLE CLAMP CPL.
    LOWER TRIPLE CLAMP CPL.
  • 5
    90101080044 STEERING HEAD BEARING-KIT
    STEERING HEAD BEARING-KIT
  • 6
    90101086000 PROTECTION CAP
    PROTECTION CAP
  • 7
    90101036000 ADJUSTING RING STEERING HEAD
    ADJUSTING RING STEERING HEAD
  • 8
    90501044000 SCREW STEERING HEAD
    SCREW STEERING HEAD
  • 9
    93013055000 HOSE CLAMP
    HOSE CLAMP
  • 10
    90113055010 SLEEVE FOR HOSE CLAMP
    SLEEVE FOR HOSE CLAMP
  • 11
    J021060156 AH SCREW M6X15 10.9
    AH SCREW M6X15 10.9
  • 12
    90512181000 BRACKET SIDE REFLECTOR FR R/S
    BRACKET SIDE REFLECTOR FR R/S
  • 13
    90512081000 BRACKET SIDE REFLECTOR FR L/S
    BRACKET SIDE REFLECTOR FR L/S
  • 14
    90512082000 SIDE REFLECTOR FRONT
    SIDE REFLECTOR FRONT
  • 18
    43570624 DUST CAP 43X53,4X5,8
    DUST CAP 43X53,4X5,8
  • 19
    43570623 OIL SEAL RING 43X52,9X11,4
    OIL SEAL RING 43X52,9X11,4
  • 20
    43570618 GUIDE BUSHING 43X47X12
    GUIDE BUSHING 43X47X12
  • 21
    48601166S1 FORK OIL SAE4 5L
    FORK OIL SAE4 5L
  • 40
    93501007000 AXLE CLAMP AND FORK PIPE RIGHT
    AXLE CLAMP AND FORK PIPE RIGHT
  • 41
    93501006000 AXLE CLAMP AND FORK PIPE LEFT
    AXLE CLAMP AND FORK PIPE LEFT
  • 98
    90101000010 REP. KIT FORK KPL.
    REP. KIT FORK KPL.
