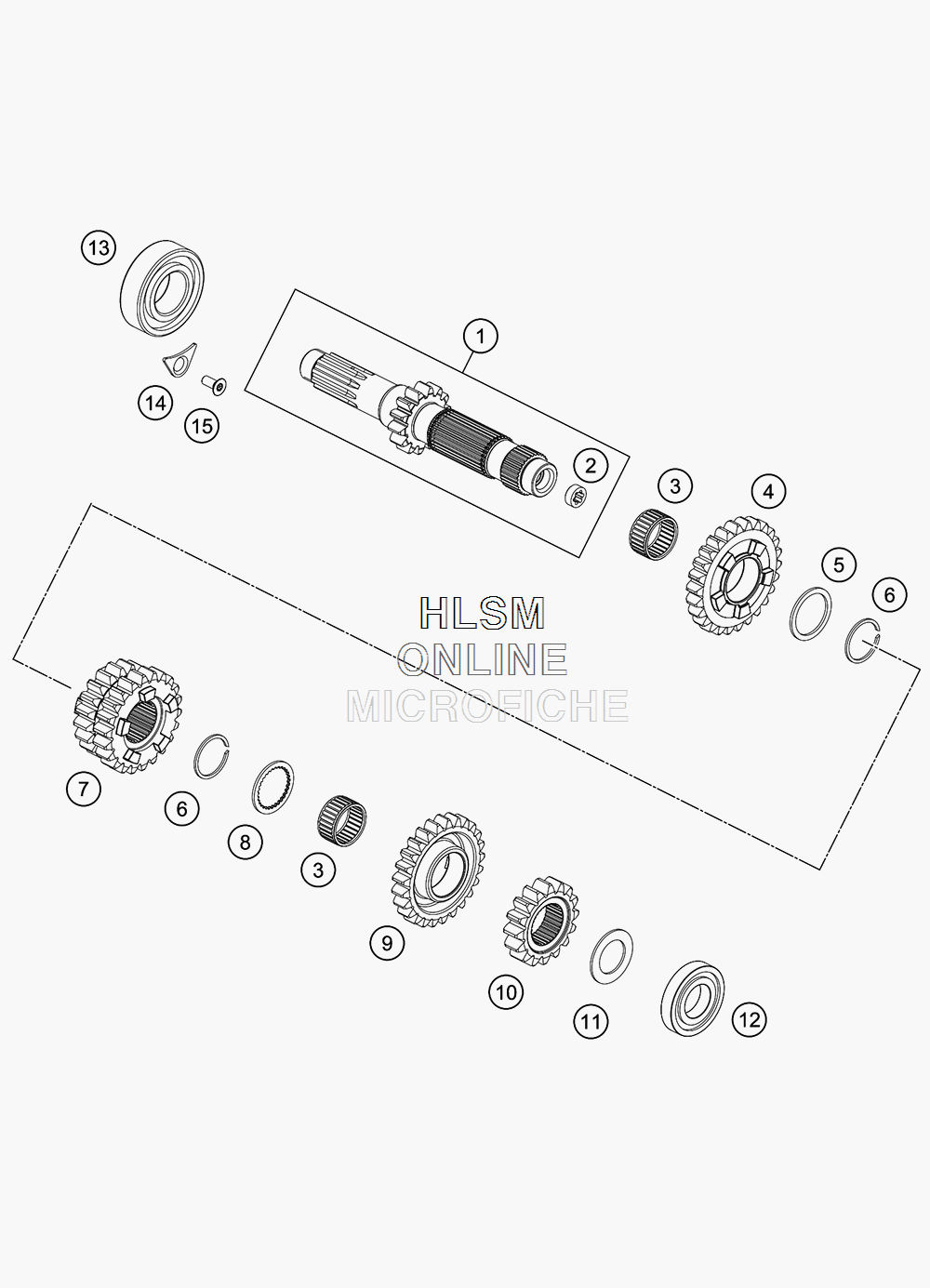

TRANSMISSION I - MAIN SHAFT для Ktm 300 XC-W - 2018 года выпуска
-
№АртикулНазвание
-
177233101100 MAIN SHAFT CPL. 14TMAIN SHAFT CPL. 14T
-
278033001110 BUSHINGBUSHING
-
30405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
454833206100 IDLER GEAR 6.G, Z=26IDLER GEAR 6.G, Z=26
-
554833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
-
60417024000 CIRCLIP WS24CIRCLIP WS24
-
779233103100 SLIDING GEAR 3RD/4TH., T=20/22SLIDING GEAR 3RD/4TH., T=20/22
-
854833043000 STOP DISC 25X0,8X30X30X7HSTOP DISC 25X0,8X30X30X7H
-
954833205100 IDLER GEAR 5.G, Z=25IDLER GEAR 5.G, Z=25
-
1054833202100 IDLER GEAR 2 ND. GEAR T=16IDLER GEAR 2 ND. GEAR T=16
-
1077233015000 DISK 20,2X32X1,3DISK 20,2X32X1,3
-
120625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
130625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1475030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
150019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
