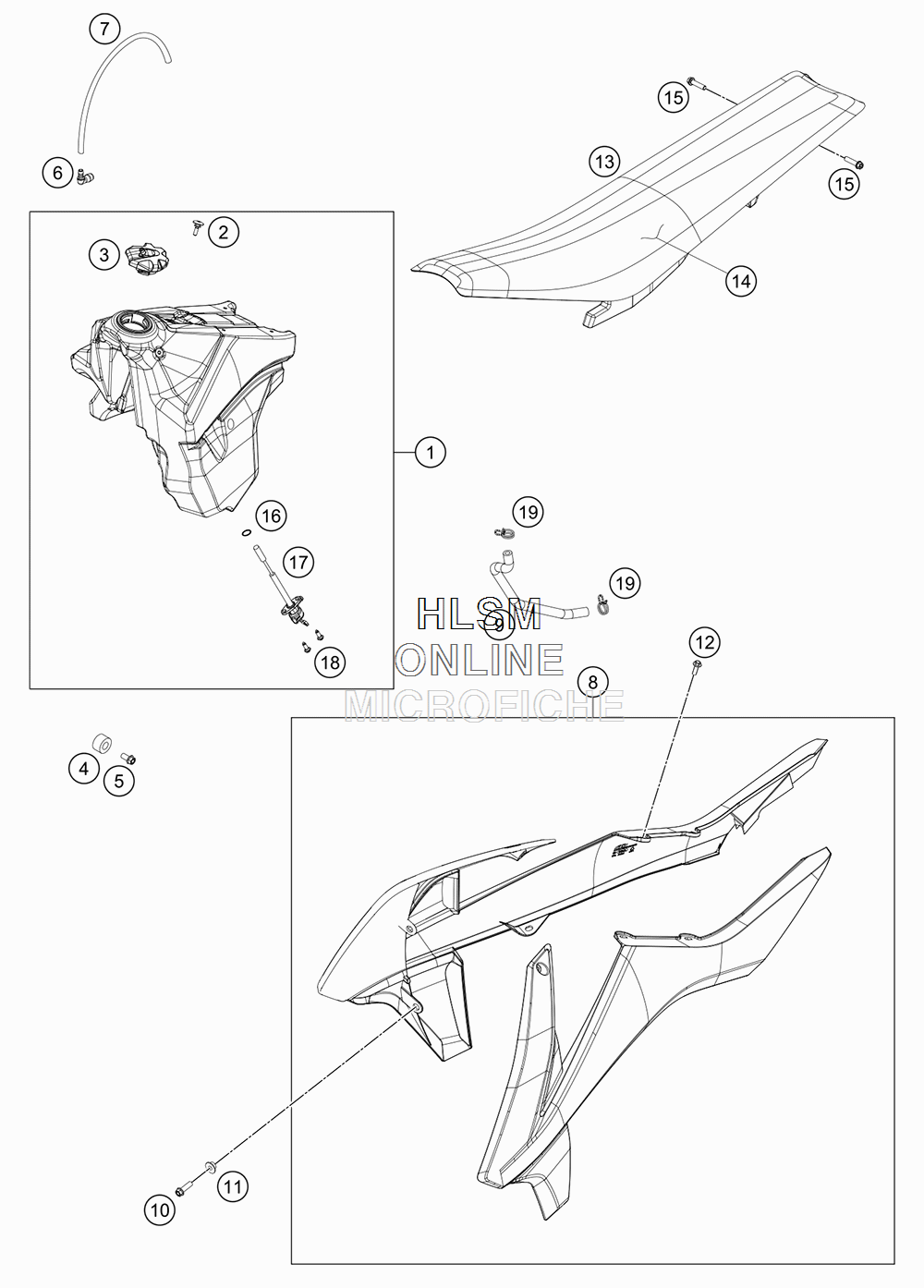

TANK- SEAT- COVER для Ktm 250 XC - 2018 года выпуска
-
№АртикулНазвание
-
15560701303399 FUEL TANK CPL. EXC 17FUEL TANK CPL. EXC 17
-
250307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
378107008044X4 TANK PLUG CPL.TANK PLUG CPL.
-
450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
50025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
651030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
778007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
879008054000EBF SPOILER KIT SX 2018SPOILER KIT SX 2018
-
955407016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
-
100025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
1179608052000 BUSH 6X11X16X5 MMBUSH 6X11X16X5 MM
-
120017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
1379007040400 SEAT SX 17SEAT SX 17
-
1479007040450 SEAT COVER SX 2017SEAT COVER SX 2017
-
150025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
160770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
1754807004000 GAS COCK ON/OFF/RESGAS COCK ON/OFF/RES
-
180017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
1958031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
