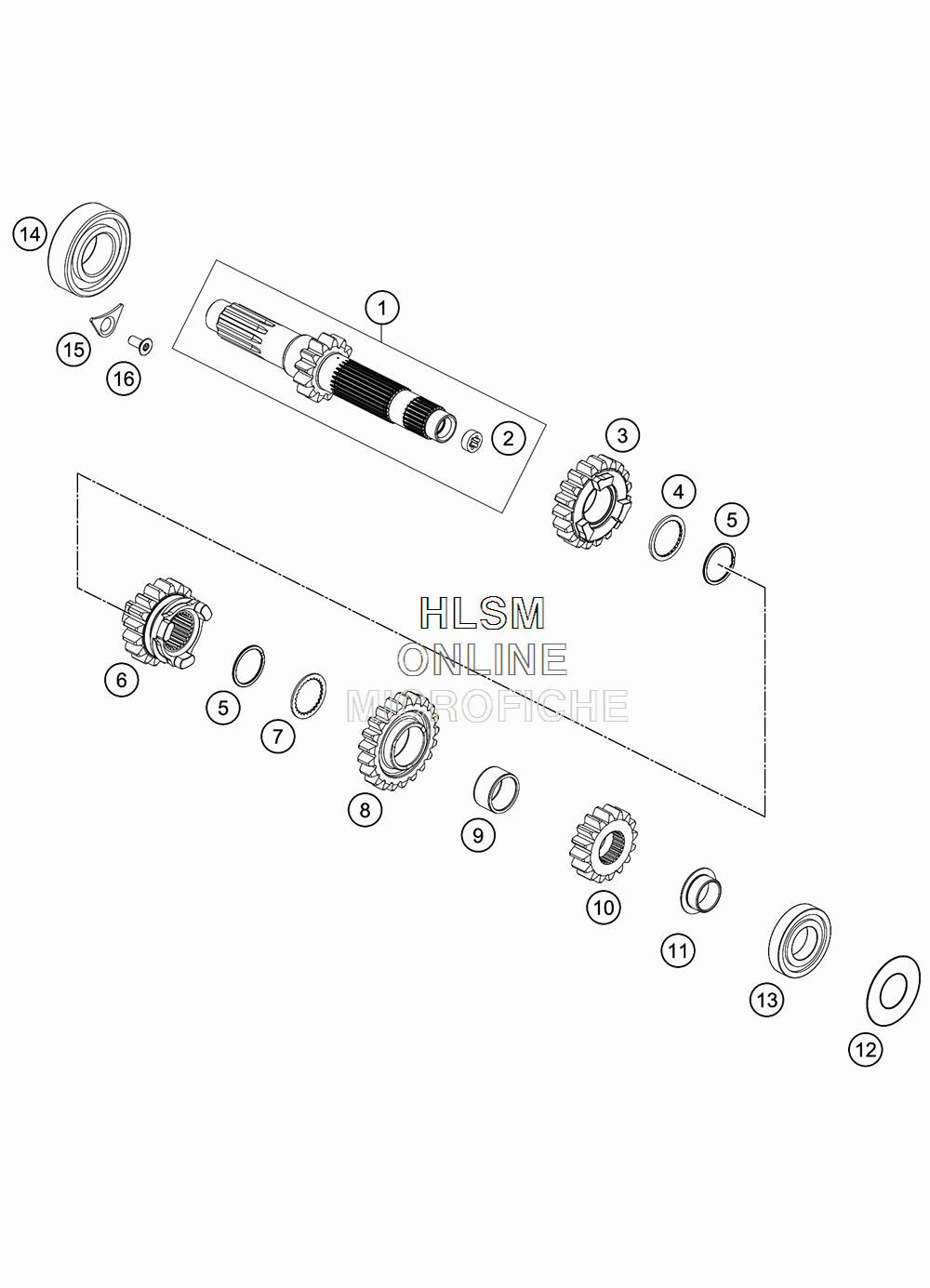

TRANSMISSION I - MAIN SHAFT для Ktm 250 SX-F - 2018 года выпуска`
-
№АртикулНазвание
-
179033001100 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
278033001110 BUSHINGBUSHING
-
379033004144 IDLER GEAR 4.G CPL.IDLER GEAR 4.G CPL.
-
479033040000 STOP DISC 22X0,8X30X26X7HSTOP DISC 22X0,8X30X26X7H
-
50471022000 CIRCLIP XDNS-22 S02CIRCLIP XDNS-22 S02
-
679033003200 SLIDING GEAR 3. GSLIDING GEAR 3. G
-
779033042000 STOP DISC 22X0,8X30X26X7HSTOP DISC 22X0,8X30X26X7H
-
879033005300 IDLER GEAR 5.GIDLER GEAR 5.G
-
90405202413 NEEDLE BEAR. K20X24X13NEEDLE BEAR. K20X24X13
-
1079033002100 SOLID GEAR 2NDSOLID GEAR 2ND
-
1177733027000 BUSHINGBUSHING
-
1277233088000 SPACER SHIM 21X42X0.2SPACER SHIM 21X42X0.2
-
130625160041 BALL BEARING TM 16004 C4BALL BEARING TM 16004 C4
-
140625062056 GROOVE BALL BEARING 6205 C4 NTNGROOVE BALL BEARING 6205 C4 NTN
-
1575030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
160019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
