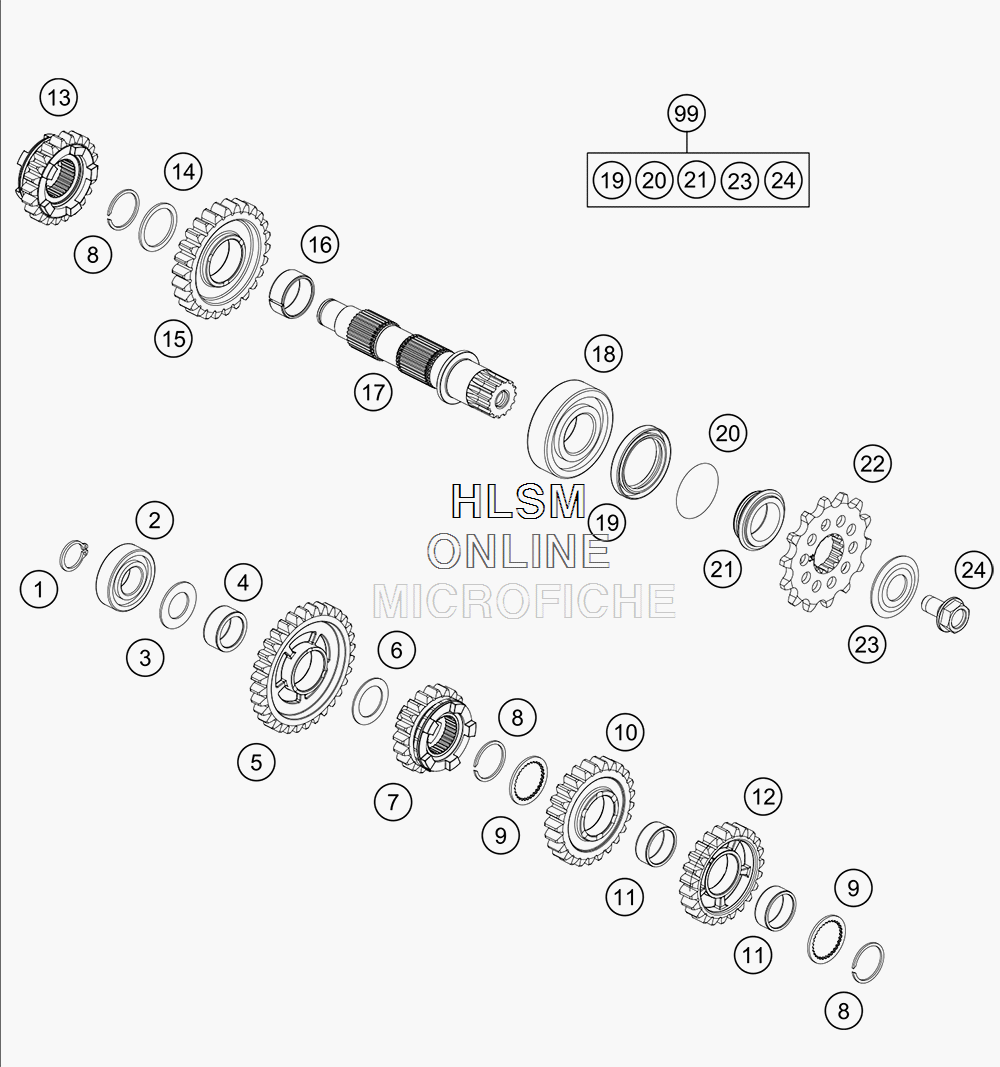

TRANSMISSION - COUNTERSHAFT для Ktm 250 EXC TPI SIX DAYS - 2018 года выпуска`

№

Артикул

Название
1

0471170015 CIRCLIP DIN 0471-17X1, 5

CIRCLIP DIN 0471-17X1, 5

210 ₽
2

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
3

77233020000 STOP DISK 17,2X30X1,3

STOP DISK 17,2X30X1,3

930 ₽
4

0405202612 NEEDLE BEARING K 20X26X12

NEEDLE BEARING K 20X26X12

2 950 ₽
5

54833211100 IDLER GEAR 1.G. Z=32

IDLER GEAR 1.G. Z=32

21 290 ₽
6

54833080000 STOP DISC 20,2X30X1

STOP DISC 20,2X30X1

640 ₽
7

54833216100 SLIDING GEAR 6 TH, Z=20

SLIDING GEAR 6 TH, Z=20

21 630 ₽
8

0417024000 CIRCLIP WS24

CIRCLIP WS24

320 ₽
9

54833043000 STOP DISC 25X0,8X30X30X7H

STOP DISC 25X0,8X30X30X7H

1 200 ₽
10

54833213100 IDLER GEAR 3TH, Z=25

IDLER GEAR 3TH, Z=25

21 350 ₽
11

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
12

54833214100 IDLER GEAR 4.G, Z=23

IDLER GEAR 4.G, Z=23

21 610 ₽
13

54833215100 SLIDING GEAR 5TH Z=22

SLIDING GEAR 5TH Z=22

21 730 ₽
14

54833044000 STOP DISC 25X31X1,5

STOP DISC 25X31X1,5

1 030 ₽
15

54833212100 IDLER GEAR 2 ND. GEAR T=26

IDLER GEAR 2 ND. GEAR T=26

21 290 ₽
16

0405242812 NEDDLE BEAR. K24X28X11,9 DIV.

NEDDLE BEAR. K24X28X11,9 DIV.

1 670 ₽
17

77233110100 OUTPUT SHAFT

OUTPUT SHAFT

31 110 ₽
18

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
19

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
20

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
21

78133014000 SPACER SLEEVE COUNTER

SPACER SLEEVE COUNTER

7 650 ₽
22

79233029014 SPROCKET 14T

SPROCKET 14T

8 110 ₽
23

59033034000 SPRING WASHER 17,2X40X1,5

SPRING WASHER 17,2X40X1,5

2 050 ₽
24

59033029000 HH COLLAR SCREW M10X18 10.9

HH COLLAR SCREW M10X18 10.9

0 ₽
99

00050000983 COUNTER SHAFT REP .KIT 2 STROKE

COUNTER SHAFT REP .KIT 2 STROKE

14 140 ₽
