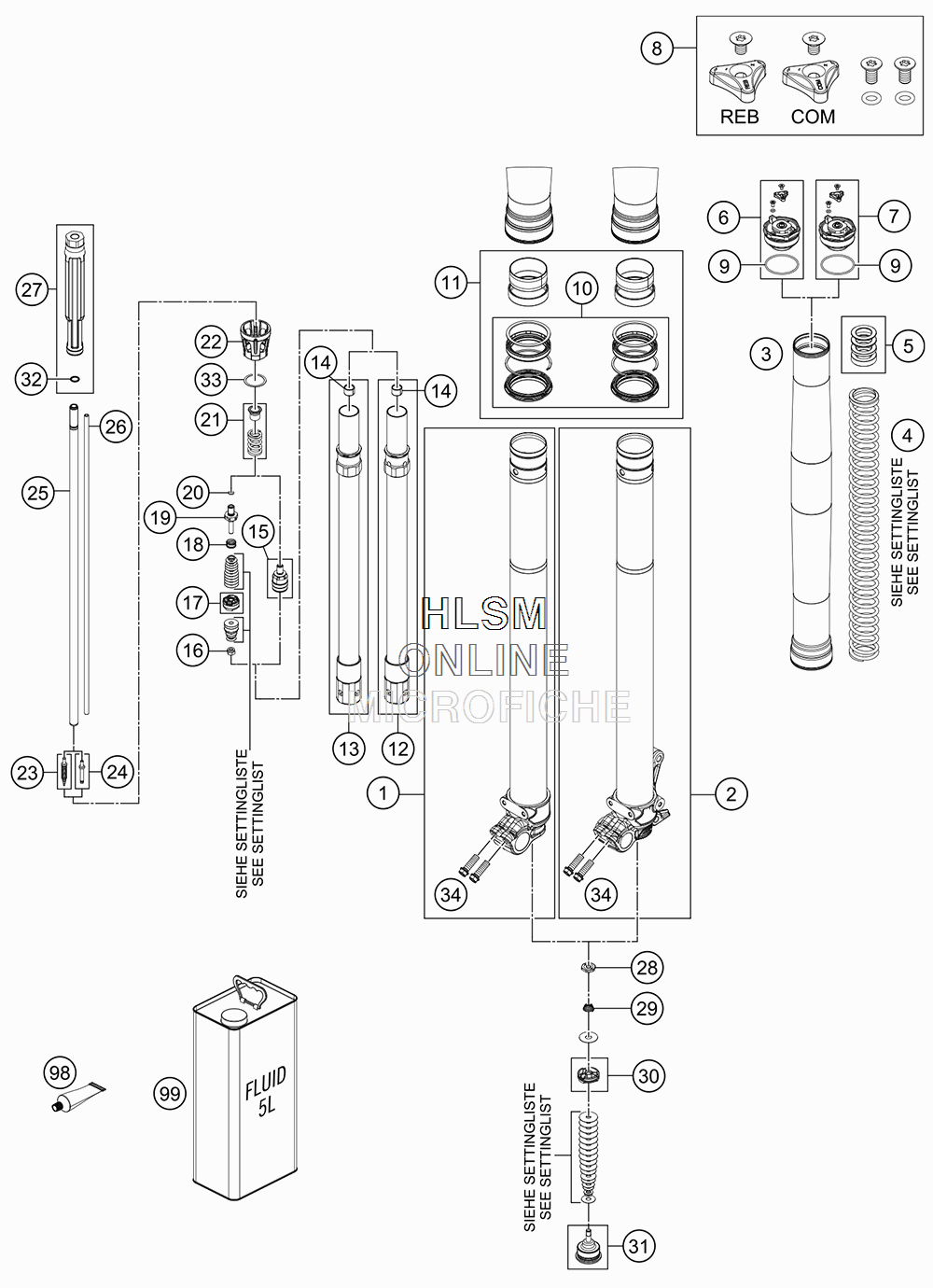

FRONT FORK DISASSEMBLED для Ktm 250 EXC TPI SIX DAYS - 2018 года выпуска`

№

Артикул

Название
1

48601633S1 AXLE CLAMP OC R/S CPL. & TUBE

AXLE CLAMP OC R/S CPL. & TUBE

121 310 ₽
2

48601632S1 AXLE CLAMP OC L/S CPL. & TUBE

AXLE CLAMP OC L/S CPL. & TUBE

141 080 ₽
3

48601671 OUTER TUBE L577 D54/60MM 2L

OUTER TUBE L577 D54/60MM 2L

75 790 ₽
4

91410099S SPRING 3,8N/MM SET D=4,9MM

SPRING 3,8N/MM SET D=4,9MM

39 430 ₽
4

91410100S SPRING 4,0N/MM SET D=4,9MM

SPRING 4,0N/MM SET D=4,9MM

39 430 ₽
4

91410101S SPRING 4,2N/MM SET D=4,9MM

SPRING 4,2N/MM SET D=4,9MM

39 430 ₽
4

91410102S SPRING 4,4N/MM SET D=4,9MM

SPRING 4,4N/MM SET D=4,9MM

39 430 ₽
4

91410103S SPRING 4,6N/MM SET D=4,9MM

SPRING 4,6N/MM SET D=4,9MM

39 430 ₽
4

91410104S SPRING 4,8N/MM SET D=4,9MM

SPRING 4,8N/MM SET D=4,9MM

39 430 ₽
5

R14026 SPRING SPACER KIT

SPRING SPACER KIT

20 890 ₽
6

48601680S2 SCREW CAP PA RIGHT M51X1,5 CPL.

SCREW CAP PA RIGHT M51X1,5 CPL.

56 810 ₽
7

48601680S3 SCREW CAP PA LEFT M51X1,5 CPL.

SCREW CAP PA LEFT M51X1,5 CPL.

56 810 ₽
8

R14033 SCREW CAP SMALL PART KIT

SCREW CAP SMALL PART KIT

6 190 ₽
9

48600048 O-RING NBR 46 X 2

O-RING NBR 46 X 2

540 ₽
10

R14046 SEALING KIT

SEALING KIT

20 530 ₽
11

R14063 FORK REP. KIT 48MM OFFROAD

FORK REP. KIT 48MM OFFROAD

49 650 ₽
12

48600763S1 PIPE & THREADED SLEEVE WITH HOLE

PIPE & THREADED SLEEVE WITH HOLE

44 770 ₽
13

48600763S2 PIPE & THREADED SLEEVE

PIPE & THREADED SLEEVE

37 180 ₽
14

48600430 DU BUSH FOR PISTON ROD

DU BUSH FOR PISTON ROD

1 620 ₽
15

48601843S TAP COMPRESSION CPL.

TAP COMPRESSION CPL.

17 150 ₽
16

40540486 NUT M6X0,5 REBOUND

NUT M6X0,5 REBOUND

920 ₽
17

48600575S1 PISTON CPL.

PISTON CPL.

7 630 ₽
18

48600382 SHUTTLE VALVE SPRING C=0,4

SHUTTLE VALVE SPRING C=0,4

370 ₽
19

48600576 PISTON ROD REBOUND

PISTON ROD REBOUND

2 230 ₽
20

48600299 O-RING 6X1,2 NBR

O-RING 6X1,2 NBR

30 ₽
21

48600578S SPRING REBOUND + SPRING GUIDE

SPRING REBOUND + SPRING GUIDE

780 ₽
22

48601298 SPRING SUPPORT

SPRING SUPPORT

1 360 ₽
23

48600277S ADJUSTING NEEDLE CPL.

ADJUSTING NEEDLE CPL.

2 080 ₽
24

48601558S COMPRESSION ADJ. NEEDLE CPL.

COMPRESSION ADJ. NEEDLE CPL.

2 820 ₽
25

48600568 PISTON ROD D=12 L=554 ALU

PISTON ROD D=12 L=554 ALU

22 940 ₽
26

48601786 ADJUSTING PIPE

ADJUSTING PIPE

8 150 ₽
27

48601556S HYDR. STOP L200 Ш31,9 CPL.

HYDR. STOP L200 Ш31,9 CPL.

11 850 ₽
28

48600163 CHECK VALVE NUT M6X0,5 D=2

CHECK VALVE NUT M6X0,5 D=2

720 ₽
29

48600202 SPRING CHECK VALVE D=0,7

SPRING CHECK VALVE D=0,7

310 ₽
30

48600047S PISTON + O-RING

PISTON + O-RING

3 460 ₽
31

48601553S SCREW CAP OC SPLIT CPL.

SCREW CAP OC SPLIT CPL.

6 520 ₽
32

04500003 O-RING 11X2,5 NBR 70 SH PTFE

O-RING 11X2,5 NBR 70 SH PTFE

170 ₽
33

48601702 WASHER 27,5X33X0,3

WASHER 27,5X33X0,3

2 890 ₽
34

0025080256 HH COLLAR SCREW M8X25

HH COLLAR SCREW M8X25

300 ₽
98

T14034 FUCHS GREASE IPR (250G)

FUCHS GREASE IPR (250G)

5 410 ₽
99

48601166S1 FORK OIL SAE4 5L

FORK OIL SAE4 5L

47 770 ₽
