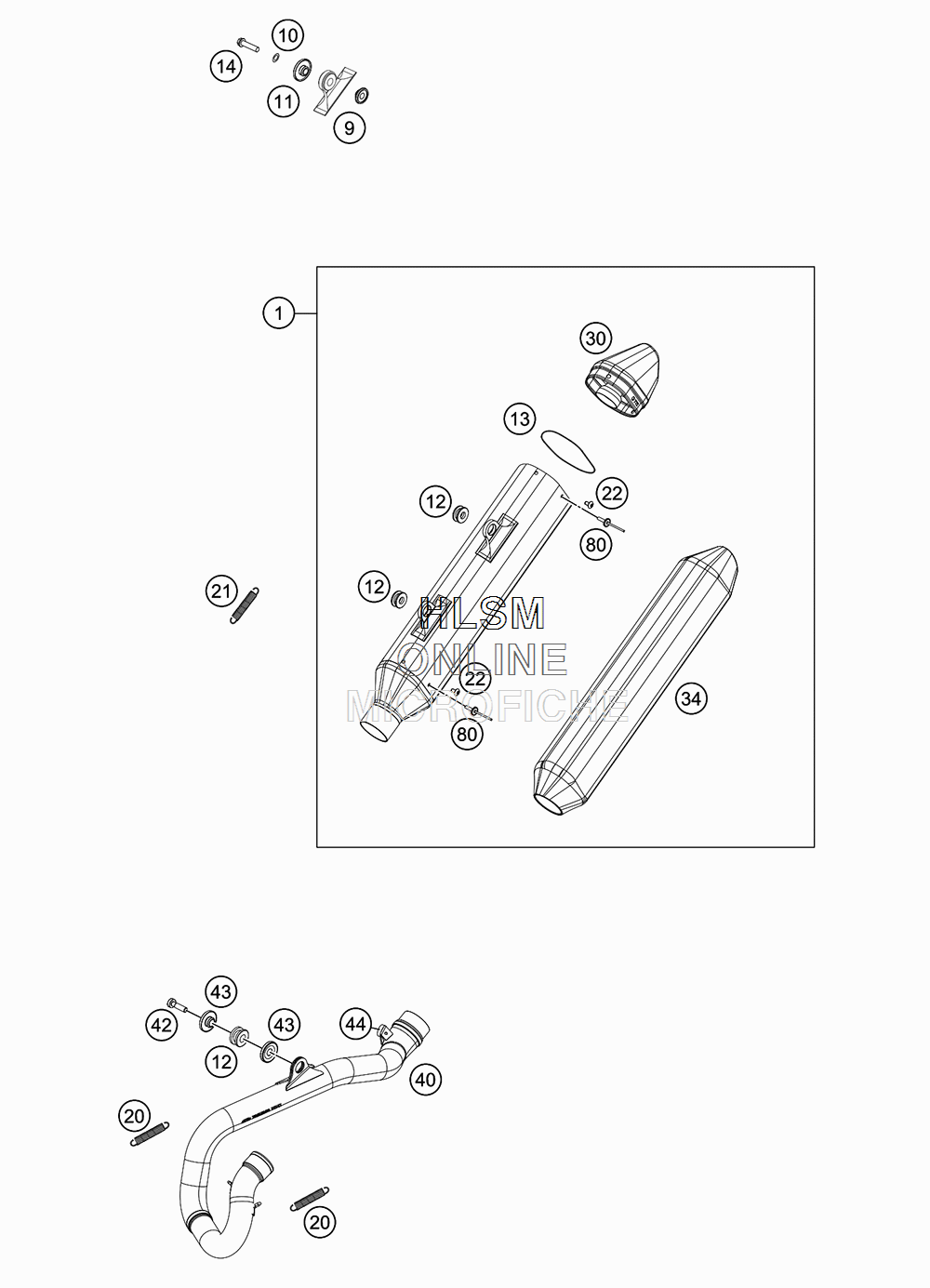

EXHAUST SYSTEM для Ktm 250 EXC-F - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    79605082000 SILENCER
    SILENCER
  • 9
    77205069000 BUSHING 7.5X12X20X8.2
    BUSHING 7.5X12X20X8.2
  • 10
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 11
    77205169000 BUSHING 7.5X12X28X8.3
    BUSHING 7.5X12X28X8.3
  • 12
    77205068000 DAMP. COMPON. BLACK
    DAMP. COMPON. BLACK
  • 13
    0770740015 O-RING 74,00X1,50 FKM 75SH
    O-RING 74,00X1,50 FKM 75SH
  • 14
    0025060356 HH COLLAR SCREW M6X35
    HH COLLAR SCREW M6X35
  • 20
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 21
    50305116000 TEN.SPRING L=75MM EY.MOVEABLE
    TEN.SPRING L=75MM EY.MOVEABLE
  • 22
    78105081010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 30
    79605082060 SILENCER CAP EXC USA
    SILENCER CAP EXC USA
  • 34
    79005078640 ROCK WOOL SHAPED P AR T
    ROCK WOOL SHAPED P AR T
  • 40
    79005109000 EXHAUST PIPE 250 EXC
    EXHAUST PIPE 250 EXC
  • 42
    0035080306S AH-COLLAR SCREW M8X30 ISA45
    AH-COLLAR SCREW M8X30 ISA45
  • 43
    79005069000 BUSHING 8,5X12X28X8, 3
    BUSHING 8,5X12X28X8, 3
  • 44
    54308042000 RUBBER BUFFER
    RUBBER BUFFER
  • 80
    0011401200 DUMMY RIVET 4,0X12 ALU
    DUMMY RIVET 4,0X12 ALU
