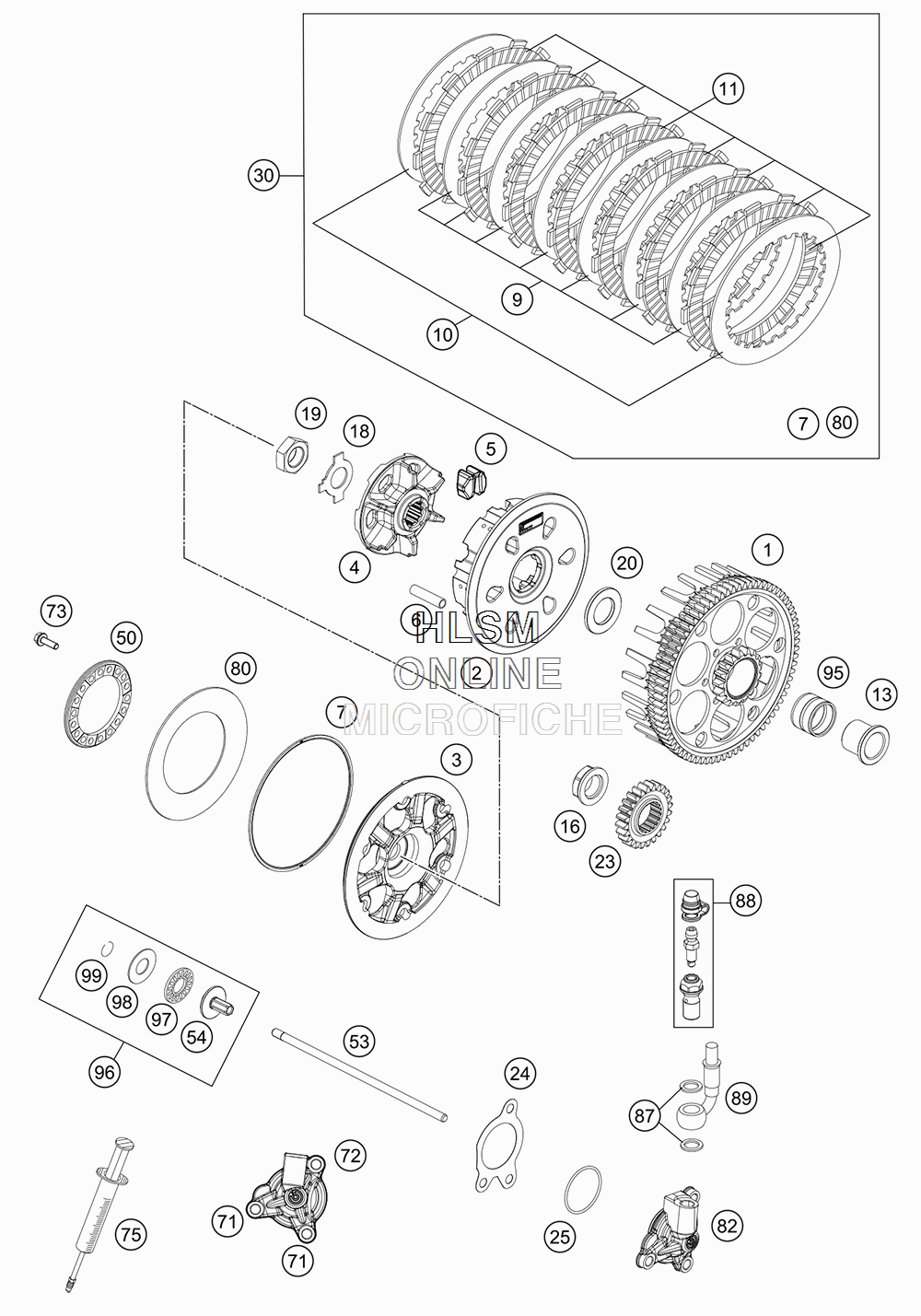

CLUTCH для Ktm 250 EXC-F SIX DAYS - 2018 года выпуска`
-
№АртикулНазвание
-
179232201073 CLUTCH BASKET EXCCLUTCH BASKET EXC
-
278132002300 CLUTCH HUBCLUTCH HUB
-
379432003000 CLUTCH PRESSURE CAPCLUTCH PRESSURE CAP
-
478132002111 HUBHUB
-
578132025100 DAMPING RUBBERDAMPING RUBBER
-
677232004000 DRIVING SLEEVE D=7,95 L=38DRIVING SLEEVE D=7,95 L=38
-
778132013000 WASHER 112X118X1.5WASHER 112X118X1.5
-
959032010200 INTERMEDIATE DISC 1,4MMINTERMEDIATE DISC 1,4MM
-
1059032010100 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
1177532011000 LINING DISCLINING DISC
-
1377232015000 INNER RINGINNER RING
-
1677230029000 NUT PRIMARY WHEELNUT PRIMARY WHEEL
-
1878132018000 TAB WASHERTAB WASHER
-
190936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
2077232009000 WASHER 21,8 X 37 X 5,1WASHER 21,8 X 37 X 5,1
-
2379232023024 PRIMARY GEAR 24T.PRIMARY GEAR 24T.
-
2479232065000 GASKET FOR OUTPUT CYLINDERGASKET FOR OUTPUT CYLINDER
-
250770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
3077732010110 CLUTCH KIT 250 EXC-F, XCF-WCLUTCH KIT 250 EXC-F, XCF-W
-
5078132006100 SPRING RINGSPRING RING
-
5379232054000 PUSH RODPUSH ROD
-
5478032057000 PRESSURE PIECEPRESSURE PIECE
-
710025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
720025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
730025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8078132005000 BELLEVILLE SPRING 71X115X1,5 IBELLEVILLE SPRING 71X115X1,5 I
-
8279232061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
870603082121 SEAL RING CU DIN7603- 8X12X1SEAL RING CU DIN7603- 8X12X1
-
8879032064000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
8979232063000 CLUTCH PIPECLUTCH PIPE
-
9556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
9678032057044 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
9754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
990993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
