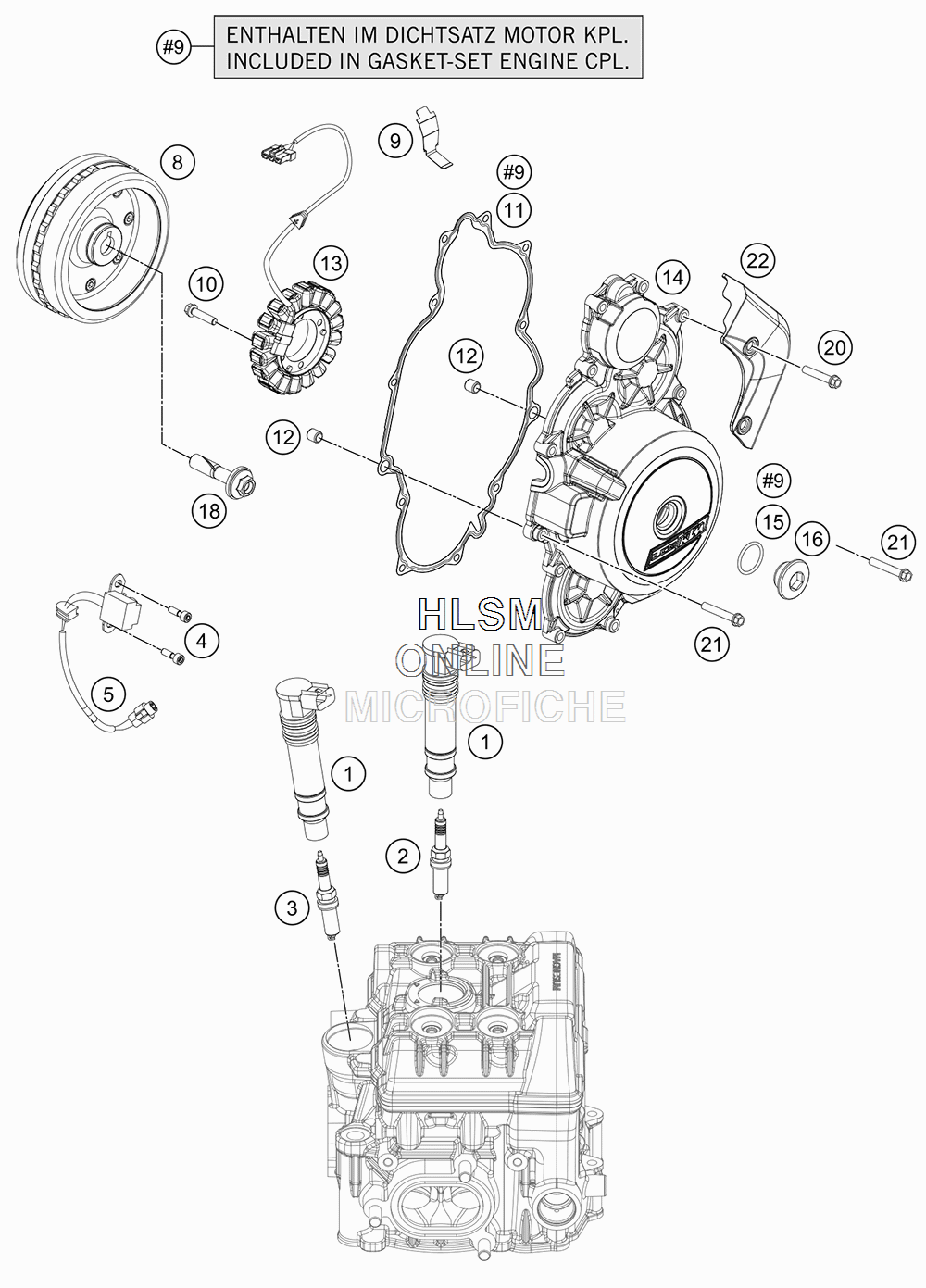

IGNITION SYSTEM для Ktm 1290 SUPER ADVENTURE S ORANGE - 2018 года выпуска`
-
№АртикулНазвание
-
176039006000 STICK COILSTICK COIL
-
260439093000 SPARK PLUG M12X1.25SPARK PLUG M12X1.25
-
360439094000 SPARK PLUG M10X1SPARK PLUG M10X1
-
460339035000 SPECIAL SCREW M5X16SPECIAL SCREW M5X16
-
559039034000 PULSER COIL KOKUSAN 4K3-A/BPULSER COIL KOKUSAN 4K3-A/B
-
860439005000 ROTOR CPL.ROTOR CPL.
-
960039040020 CABLE SUPPORT GENERATORCABLE SUPPORT GENERATOR
-
100025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1161230040100 GASKET GENERATORCOVERGASKET GENERATORCOVER
-
1249030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
1360339004000 STATORSTATOR
-
146023010214441 IGNITION COVER WITH BEARINGSIGNITION COVER WITH BEARINGS
-
1507700240251 O-RING 24X2,5 VITONO-RING 24X2,5 VITON
-
166003009400030 SCREW PLUG M24X1,5 PA 6.6SCREW PLUG M24X1,5 PA 6.6
-
1860339003000 SPECIAL SCREW M12X1,5 WS15SPECIAL SCREW M12X1,5 WS15
-
200025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
210025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
2261411095000 PLUG COVERPLUG COVER
