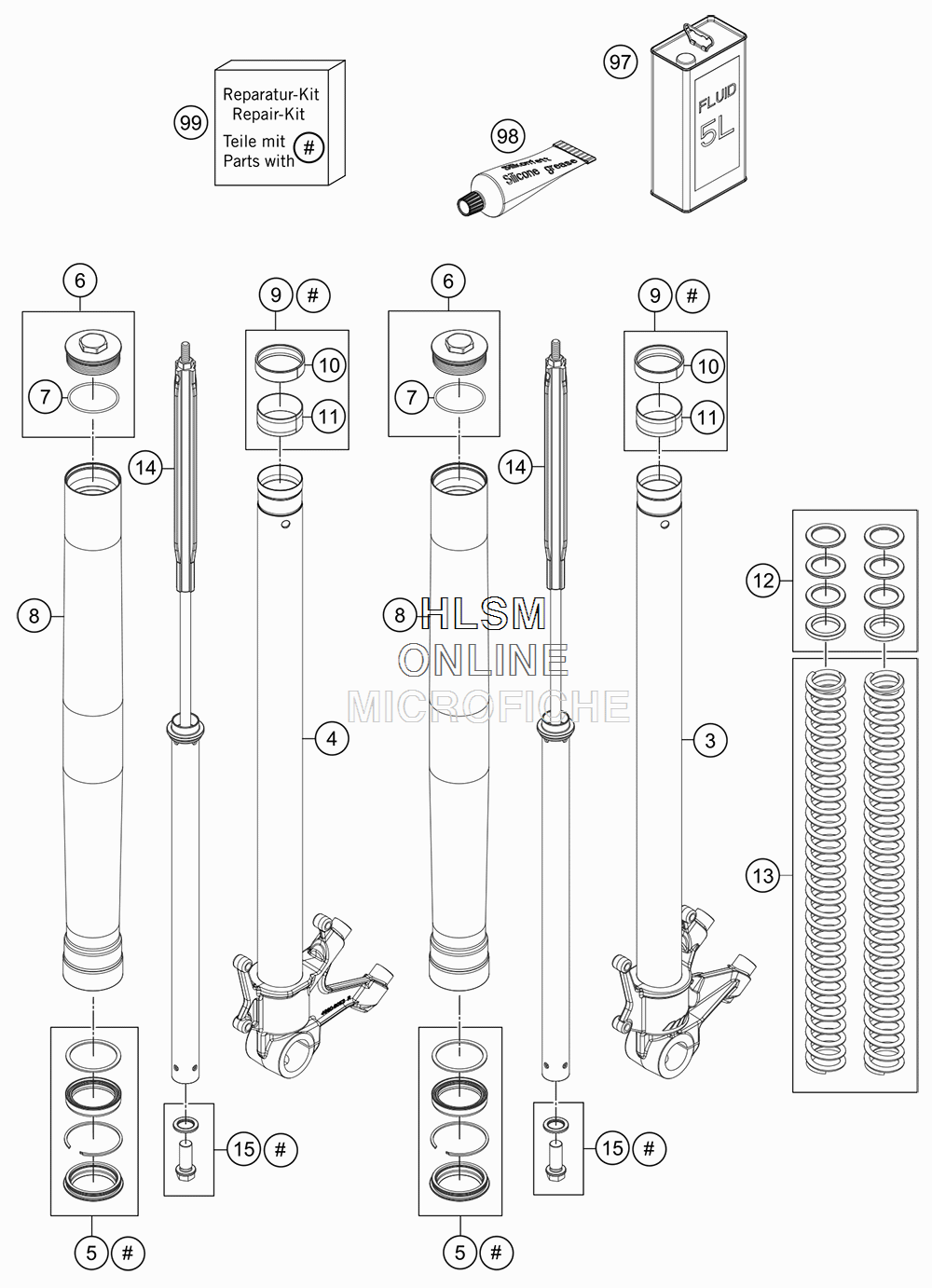

FRONT FORK DISASSEMBLED для Ktm 1090 ADVENTURE - 2018 года выпуска

  • №
    Артикул
    Название
  • 3
    43570750S1 AXLE-CL. + INNER TUBE L/S
    AXLE-CL. + INNER TUBE L/S
  • 4
    43570751S1 AXLE-CL. + INNER TUBE R/S
    AXLE-CL. + INNER TUBE R/S
  • 5
    R14049 GASKET SET CPL.
    GASKET SET CPL.
  • 6
    57430001S SCREW CAP M51 X 1.5 CPL.
    SCREW CAP M51 X 1.5 CPL.
  • 7
    46810340 O-RING NBR 45X2
    O-RING NBR 45X2
  • 8
    43570715 OUTER TUBE 54/57 L=580 BLACK
    OUTER TUBE 54/57 L=580 BLACK
  • 9
    R14042 GUIDE BUSHING SET
    GUIDE BUSHING SET
  • 10
    43570618 GUIDE BUSHING 43X47X12
    GUIDE BUSHING 43X47X12
  • 11
    43570617 GUIDE BUSHING 42X44X20 R11
    GUIDE BUSHING 42X44X20 R11
  • 12
    R514 SPRING SPACER KIT
    SPRING SPACER KIT
  • 13
    95010077S SPRING KIT
    SPRING KIT
  • 14
    57430006S CARDRIDGE CPL.
    CARDRIDGE CPL.
  • 15
    00501020S1 AH SCREW M10X20 SET
    AH SCREW M10X20 SET
  • 97
    48601166S1 FORK OIL SAE4 5L
    FORK OIL SAE4 5L
  • 98
    T511 SILICONE GREASE F. DUST STRI
    SILICONE GREASE F. DUST STRI
  • 99
    R14050 REP . KIT 1050 ADV .
    REP . KIT 1050 ADV .
