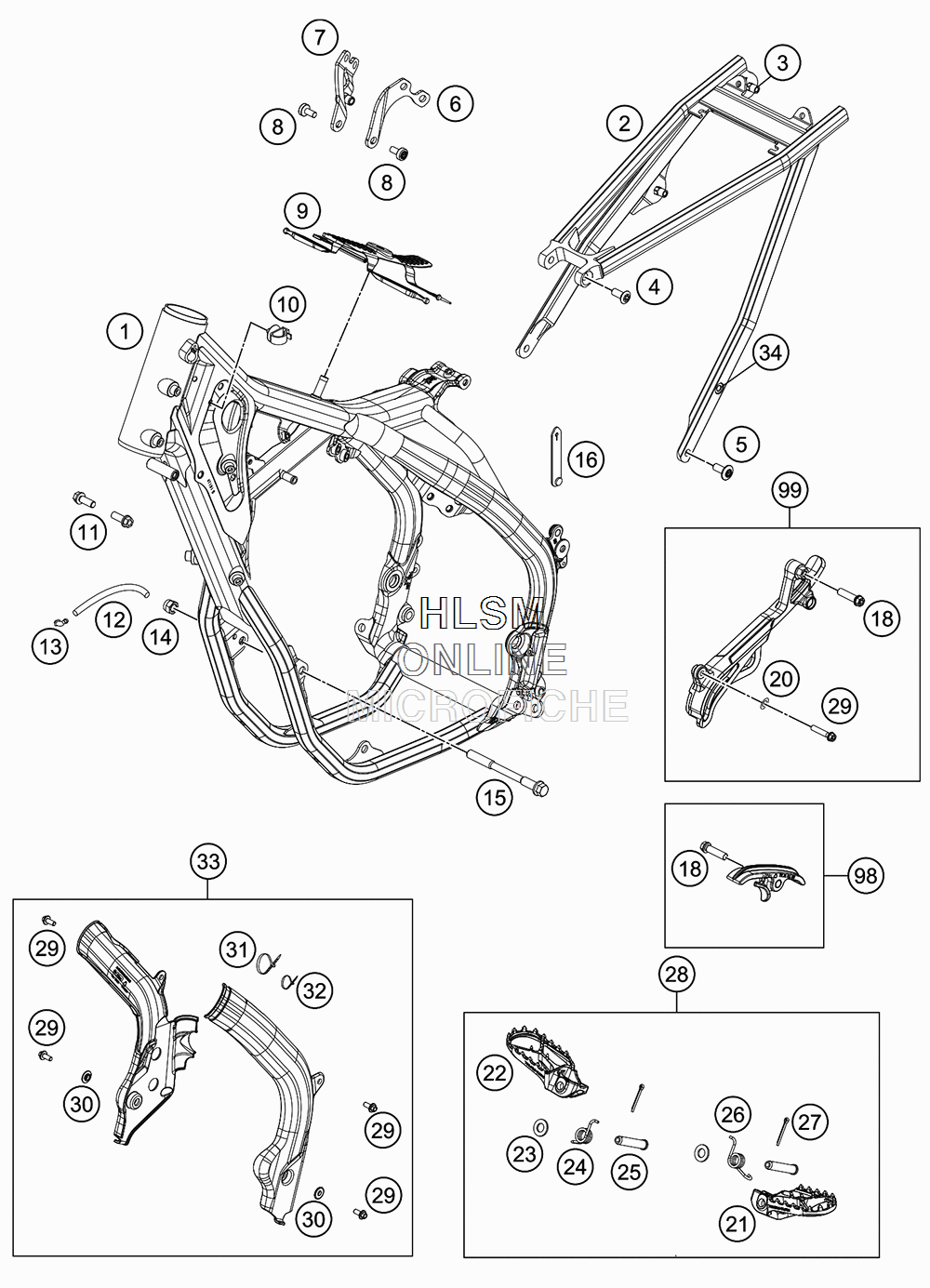

FRAME для Ktm 450 EXC-F SIXDAYS - 2017 года выпуска
-
№АртикулНазвание
-
179603101100E B FRAME "796Q1" EL.ORANGEB FRAME "796Q1" EL.ORANGE
-
279003002000 SUBFRAMESUBFRAME
-
377303139000 BLIND RIVET NUT EM6-60LF/HXBLIND RIVET NUT EM6-60LF/HX
-
40019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
579003003000 SPECIAL SCREW M8X18 TORX45 SSSPECIAL SCREW M8X18 TORX45 SS
-
679403113000 ENGINE BRACE LEFTENGINE BRACE LEFT
-
779403114044 ENGINE BRACE RIGHT CPL.ENGINE BRACE RIGHT CPL.
-
80035080156S AH-COLLAR SCREW M8X15 TORX45AH-COLLAR SCREW M8X15 TORX45
-
979007012000 TANK REST RUBBERTANK REST RUBBER
-
1058111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
110025080166S HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
1255007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
1350303089000 ANGLE PIECEANGLE PIECE
-
1454310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
1559003013000 ENGINEBRAC.SCREW M10X123 WS=13ENGINEBRAC.SCREW M10X123 WS=13
-
1660011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
-
180025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
190025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
200125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
2179603040000 FOOTREST L/S EXCFOOTREST L/S EXC
-
2279603041000 FOOTREST R/S EXCFOOTREST R/S EXC
-
230125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
2479003044000 FOOTREST SPRING R/SFOOTREST SPRING R/S
-
2554803044000 PIN FOR FOOT PED 51.5X9.8 MMPIN FOR FOOT PED 51.5X9.8 MM
-
2679003045000 FOOTREST SPRING L/SFOOTREST SPRING L/S
-
270094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
2879603040033 FOOTREST-SETFOOTREST-SET
-
290014050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
3054803092060 BUSH F. FRAME PROTECTIONBUSH F. FRAME PROTECTION
-
3144011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
3244011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
337900309400033 FRAME PROTECTION SET BLACKFRAME PROTECTION SET BLACK
-
3479003002080 BLIND RIVET NUT M6 KNURLEDBLIND RIVET NUT M6 KNURLED
-
9879003053010 CHAIN SLIDING KIT BELOW CPL.16CHAIN SLIDING KIT BELOW CPL.16
-
9979403096010 SPROCKET COVER KITSPROCKET COVER KIT
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BALANCER SHAFT
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECAL
- ELECTRIC STARTER
- ENGINE CASE
- ENGINE GUARD
- EVAPORATIVE CANISTER
- EXHAUST SYSTEM
- • FRAME
- FRAME STAND
- FRONT FORK DISASSEMBLED
- FRONT FORK- TRIPLE CLAMP
- FRONT WHEEL
- FUEL PUMP
- HAND BRAKE CYLINDER
- HANDLEBAR- CONTROLS
- IGNITION SYSTEM
- INSTRUMENTS / LOCK SYSTEM
- LIGHTING SYSTEM
- LUBRICATING SYSTEM
- MASK- FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- SECONDARY AIR SYSTEM SAS
- SHIFTING MECHANSIM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SWING ARM
- TANK- SEAT - COVER
- THROTTLE BODY
- TIMING DRIVE
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- VALVE DRIVE
- WATER PUMP
- WIRING HARNESS
- WP SHIMS FOR SETTING
