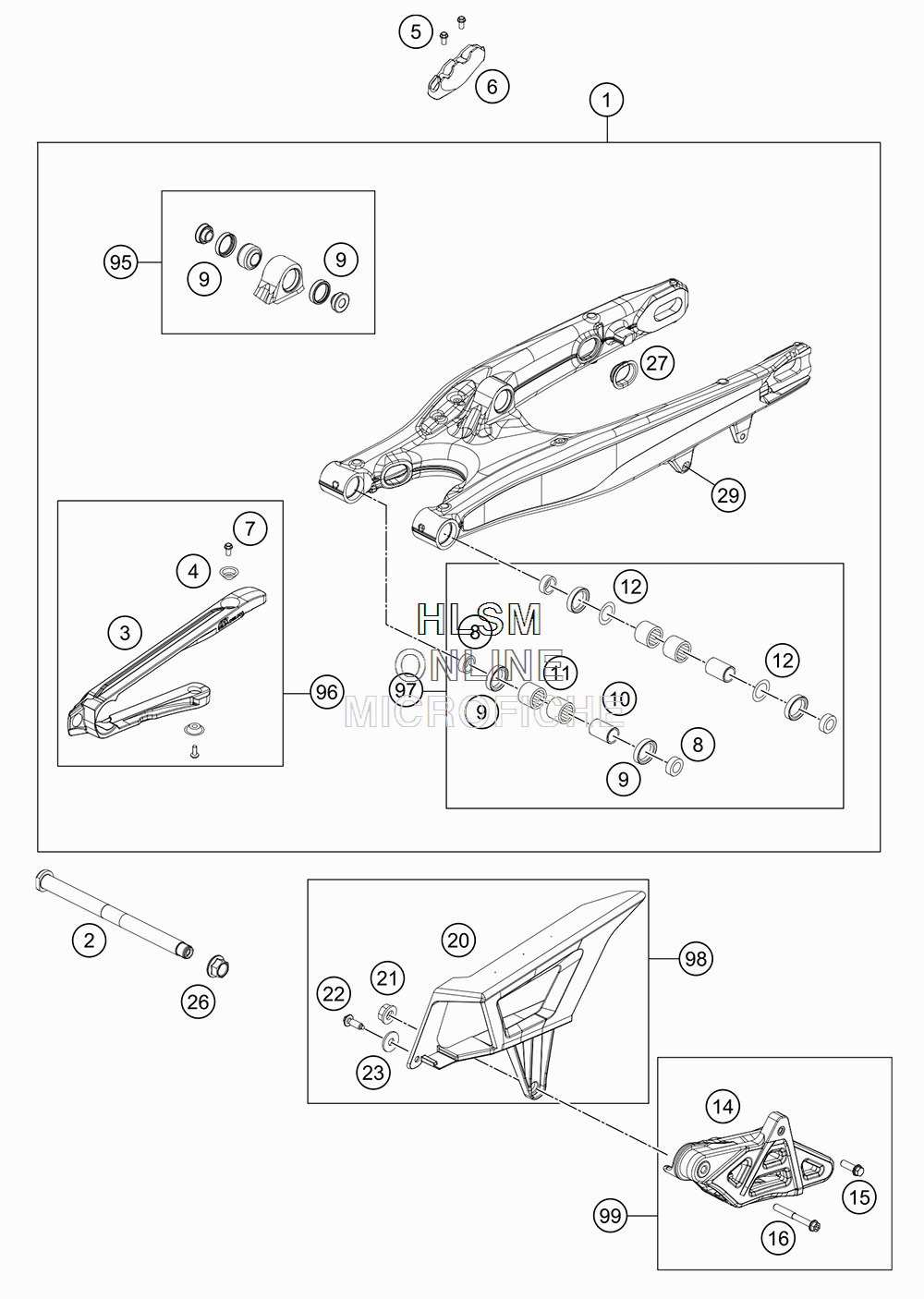

SWING ARM для Ktm 350 XC-F - 2017 года выпуска`
-
№АртикулНазвание
-
179604030044 SWING ARM CPL. PDSSWING ARM CPL. PDS
-
279004037000 SWING ARM M16X1,5SWING ARM M16X1,5
-
351504066000 CHAIN SLID.GUARD PDSCHAIN SLID.GUARD PDS
-
477304066050 BUSHING F. CHAIN SLIDING PR.BUSHING F. CHAIN SLIDING PR.
-
50009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
677313047000 BRAKE HOSE GUIDE LOWER 07BRAKE HOSE GUIDE LOWER 07
-
759009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
877704034000 SUPPORT F. SHAFT SEAL RINGSUPPORT F. SHAFT SEAL RING
-
90760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
1059404032000 BEARING SLEEVE 17X22X38,7BEARING SLEEVE 17X22X38,7
-
110618222812 NEEDLEBEAR HK2212V 22/28/12 MBNEEDLEBEAR HK2212V 22/28/12 MB
-
1254603036000 STOP DISK 22,2X31,7X1STOP DISK 22,2X31,7X1
-
1478104070100 CHAIN GUIDE EXCCHAIN GUIDE EXC
-
1559009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
160025060506 HH COLLAR SCREW M6X50HH COLLAR SCREW M6X50
-
2078104060000 CHAINGUARDCHAINGUARD
-
2156509064100 SELF LOCKING NUT M6SELF LOCKING NUT M6
-
220017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
230021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
2654804038000 SELF LOCK.NUT M16X1,5 WS=19SELF LOCK.NUT M16X1,5 WS=19
-
2777204041000 CLOSING COVERCLOSING COVER
-
2954603055051 PRESS IN NUT M6 STEEL ZINCPRESS IN NUT M6 STEEL ZINC
-
9579604090044 PIVOT BEARING+BUSH. PDSPIVOT BEARING+BUSH. PDS
-
9651504066044 CHAIN SLIDING GUARD KITCHAIN SLIDING GUARD KIT
-
9778904230010 SWINGARM REPAIR KITSWINGARM REPAIR KIT
-
9878104060010 CHAIN PROTECTION KITCHAIN PROTECTION KIT
-
9978104070010 CHAIN GUIDE KITCHAIN GUIDE KIT
