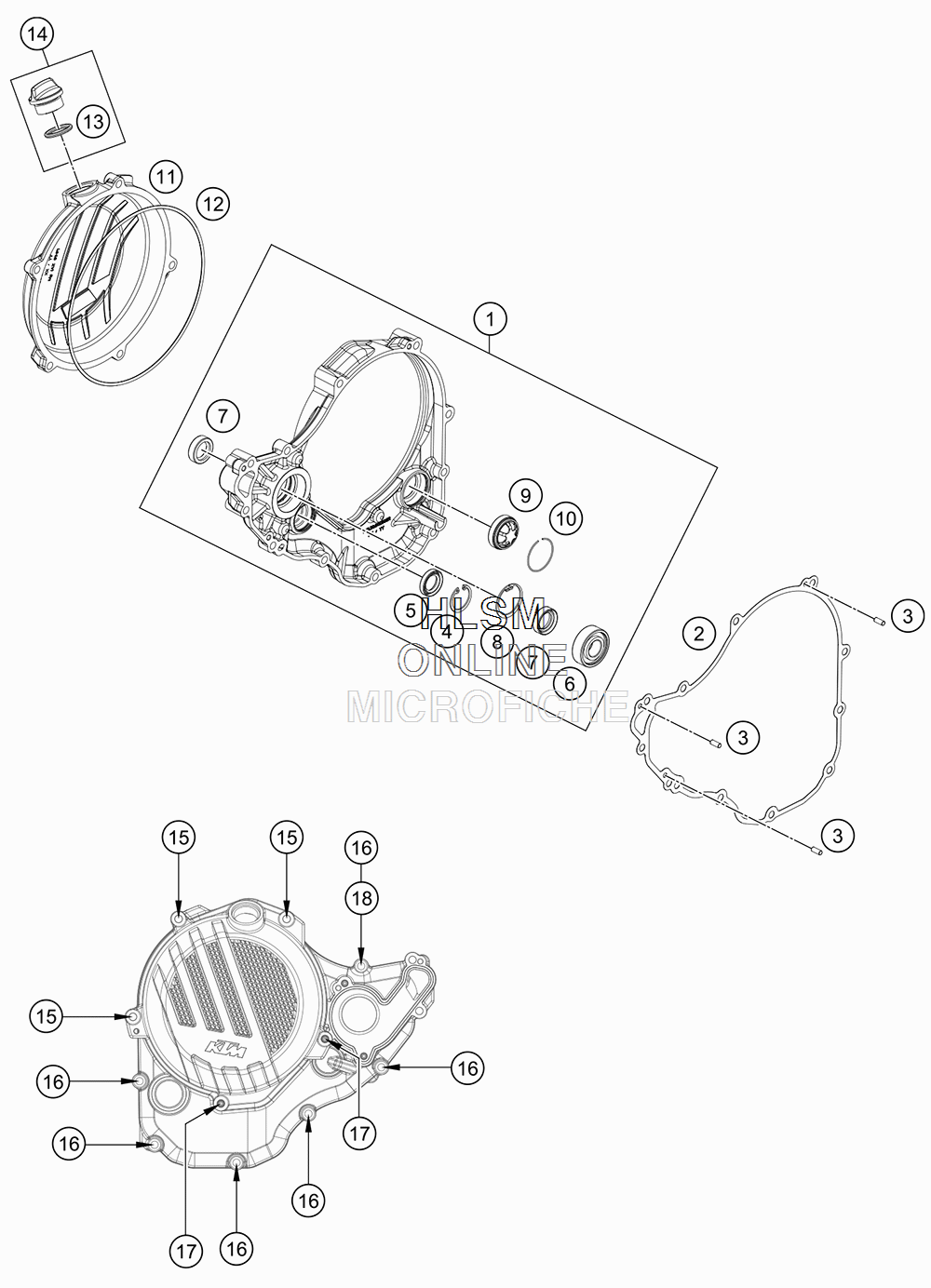

CLUTCH COVER для Ktm 250 XC-F - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    79230001044 CLUTCH COVER CPL.
    CLUTCH COVER CPL.
  • 2
    79230025000 CLUTCH COVER GASKET
    CLUTCH COVER GASKET
  • 3
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 4
    0472024120 CIRCLIP DIN0472-24X1.2
    CIRCLIP DIN0472-24X1.2
  • 5
    0760142450 SHAFT SEAL RING 14X24X5 VITON
    SHAFT SEAL RING 14X24X5 VITON
  • 6
    0625062022 BALL BEARING 6202 C0 2
    BALL BEARING 6202 C0 2
  • 7
    07601530451 SHAFT SEAL RING 15X30X4.5 BAUD
    SHAFT SEAL RING 15X30X4.5 BAUD
  • 8
    0472300120 CIRCLIP 30X1,2
    CIRCLIP 30X1,2
  • 9
    59030019200 OIL SIGHT GLASS
    OIL SIGHT GLASS
  • 10
    61030019050 CIRCLIP OIL LEVEL GLASS
    CIRCLIP OIL LEVEL GLASS
  • 11
    7923002600015 CLUTCH OUTSIDE COVER
    CLUTCH OUTSIDE COVER
  • 12
    79230027000 CLUTCH COVER GASKET OUTSIDE
    CLUTCH COVER GASKET OUTSIDE
  • 13
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 14
    79430020033 OIL FILLER CAP M24X3 WITH O-RING
    OIL FILLER CAP M24X3 WITH O-RING
  • 15
    0025060456 HH COLLAR SCREW M6X45
    HH COLLAR SCREW M6X45
  • 16
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 17
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 18
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
