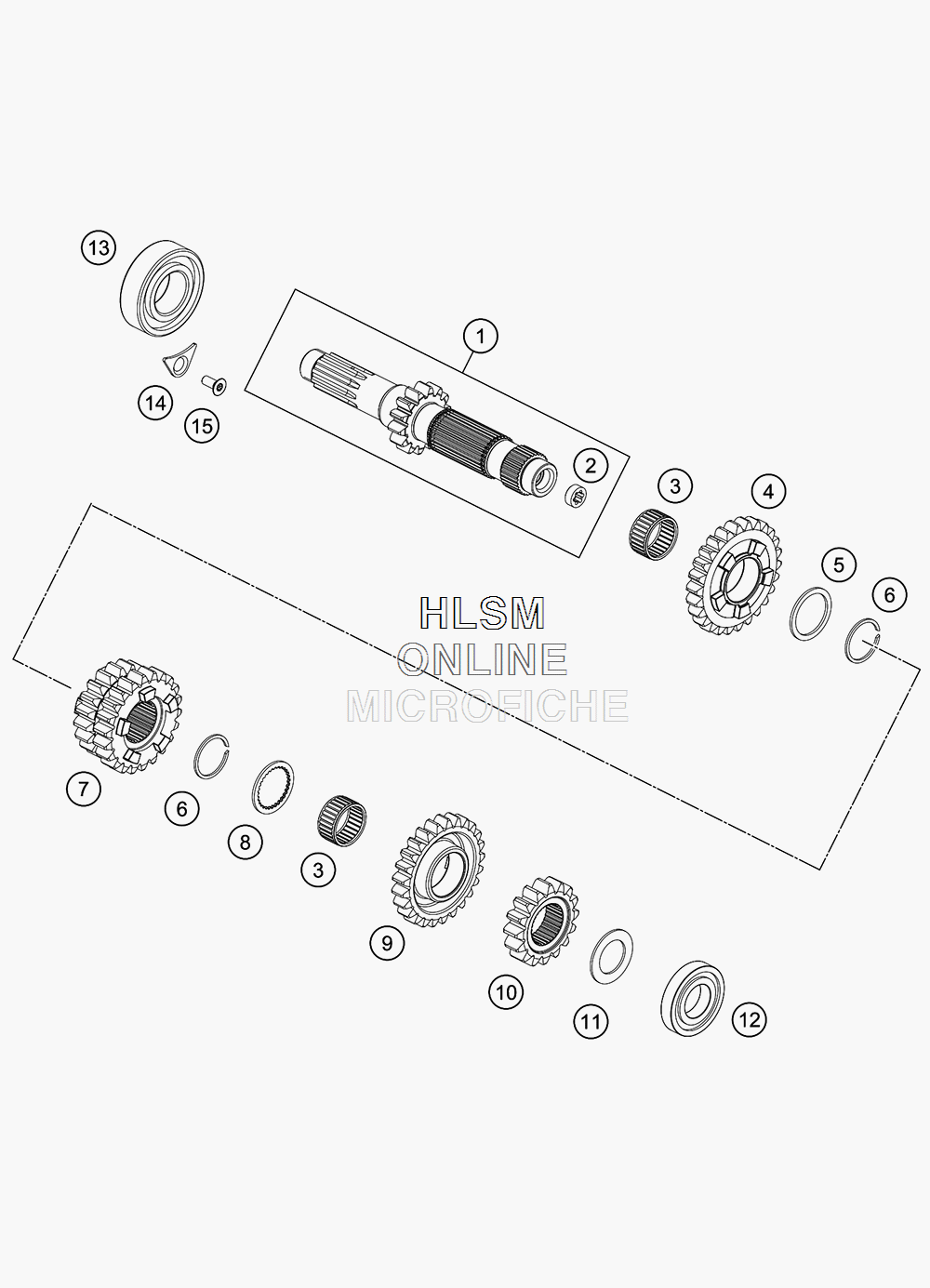

TRANSMISSION I - MAIN SHAFT для Ktm 250 EXC - 2017 года выпуска`
-
№АртикулНазвание
-
177233101000 MAIN SHAFT CPL. 14 T.MAIN SHAFT CPL. 14 T.
-
278033001110 BUSHINGBUSHING
-
30405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
454833206000 IDLER GEAR 6. G, Z=26IDLER GEAR 6. G, Z=26
-
554833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
-
60417024000 CIRCLIP WS24CIRCLIP WS24
-
779233103000 SLIDING GEAR 3./4.G. Z=20/22SLIDING GEAR 3./4.G. Z=20/22
-
854833043000 STOP DISC 25X0,8X30X30X7HSTOP DISC 25X0,8X30X30X7H
-
954833205000 IDLER GEAR 5.G, Z =25IDLER GEAR 5.G, Z =25
-
1054833202000 SOLID GEARSOLID GEAR
-
1077233015000 DISK 20,2X32X1,3DISK 20,2X32X1,3
-
120625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
130625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1475030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
150019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
